45530603TH Rev.2
6-26
Oki Data CONFIDENTIAL
6. REPLACEMENT OF PARTS

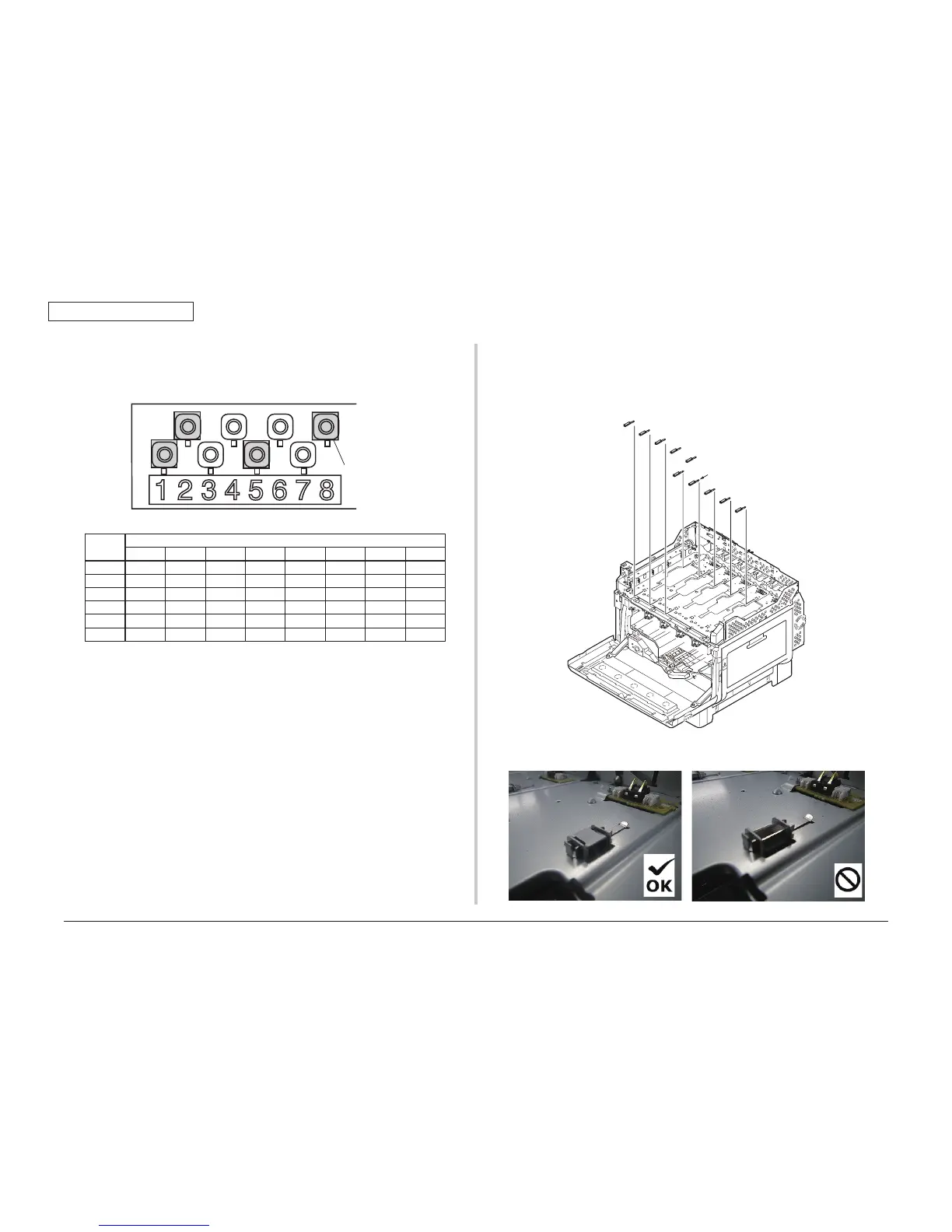

6.2.32 Plate-Fix-Pivot
(1) Remove the Frame-Assy-TC-F and Frame-Assy-TC.(Refer to section 6.2.31)
(2) Remove the Plate-Fix-Pivot
.
(For C941 : ten, for C911/C931 : eight)
×1 0
Attention of assembling
Attach the Lock out of TC, when assembling Frame-Assy-TC/Frame-Assy-TC-R.
Color Location of Lock out
1 2 3 4 5 6 7 8
Y
× ×
× ×
M
× ×
×
×
C
× ×
× ×
K
× × ×
×
W
× × ×
×
CL
× × × ×
1 3 5 7
2 4 6 8
44396801 Lockout
Example. Case Cyan
Attention of assembling
Refer to following picture, when assembling Plate-Fix-Pivot.
