45530603TH Rev.2

6-31

Oki Data CONFIDENTIAL

6. REPLACEMENT OF PARTS

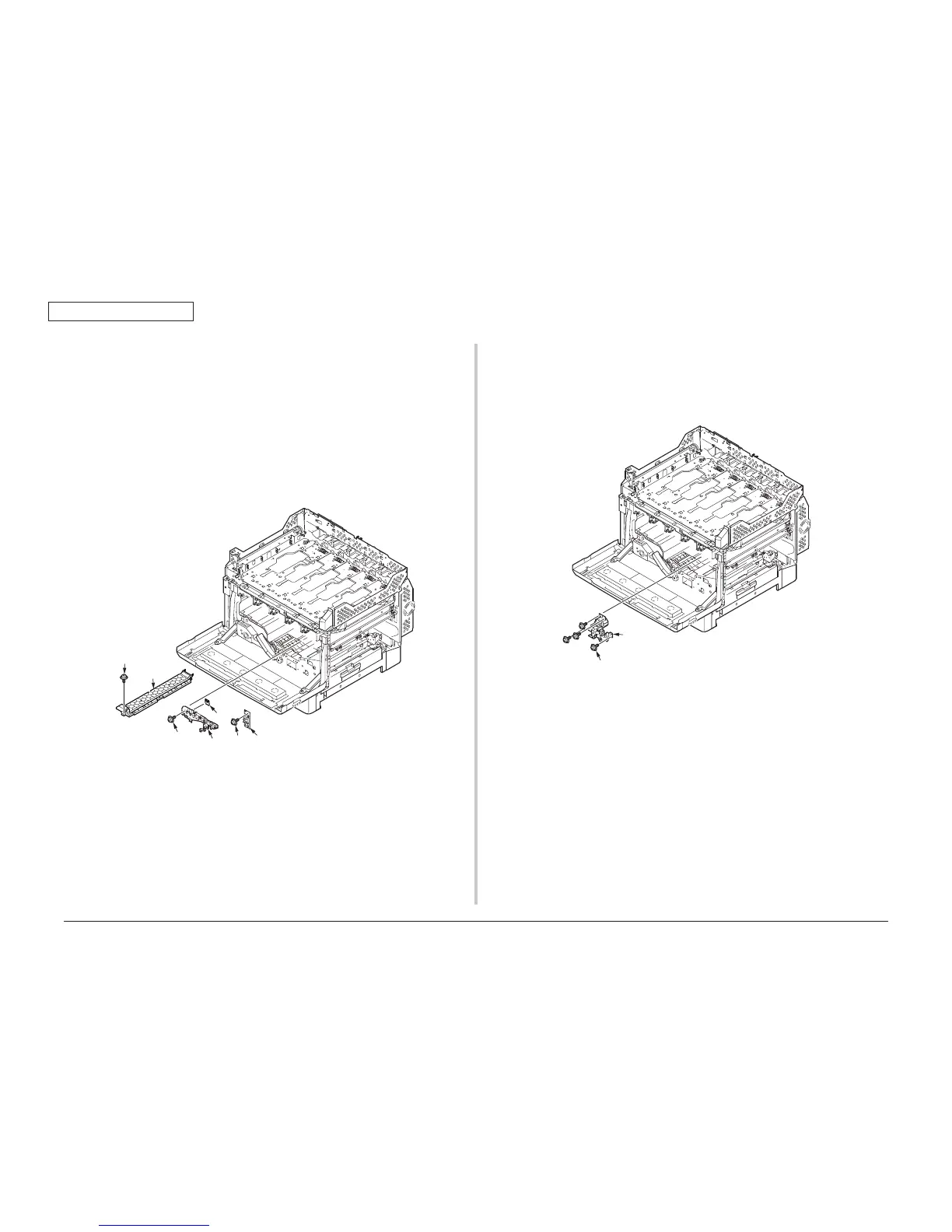

6.2.41 Motor-Assy-Regist

(1) Remove the Roller-Assy-Regist-2/Roller-Assy-Synchro/Regist-Sensor-Assy_753.

(Refer to section 6.2.39)

(2) Remove the four screws(silver)(6mm)

①

and remove the Motor-Assy-Regist

②

6.2.40 Waste toner full sensor Board-F1N(Toner Low

sensor PCB)

(1) Remove the Roller-Assy-Regist-2/Roller-Assy-Synchro/Regist-Sensor-Assy_753.

(Refer to section 6.2.39)

(2) Remove the screw(black)(8mm)

①

and remove the Guide-Paper

②

(3) Remove the screw(silver)(6mm)

③

and remove the Board-F1G

④

(4) Open the Cover-Assy-Front.

(5) Remove the screw(silver)(6mm)

⑤

and remove the Holder-WTSNS

⑥

(6) Remove the Board-F1N

⑦

⑤

①

⑥

②

⑦

④

③

①×4

②
