Oki C911 Maintenance Manual

45530603TH Rev.2
6-20
Oki Data CONFIDENTIAL
6. REPLACEMENT OF PARTS

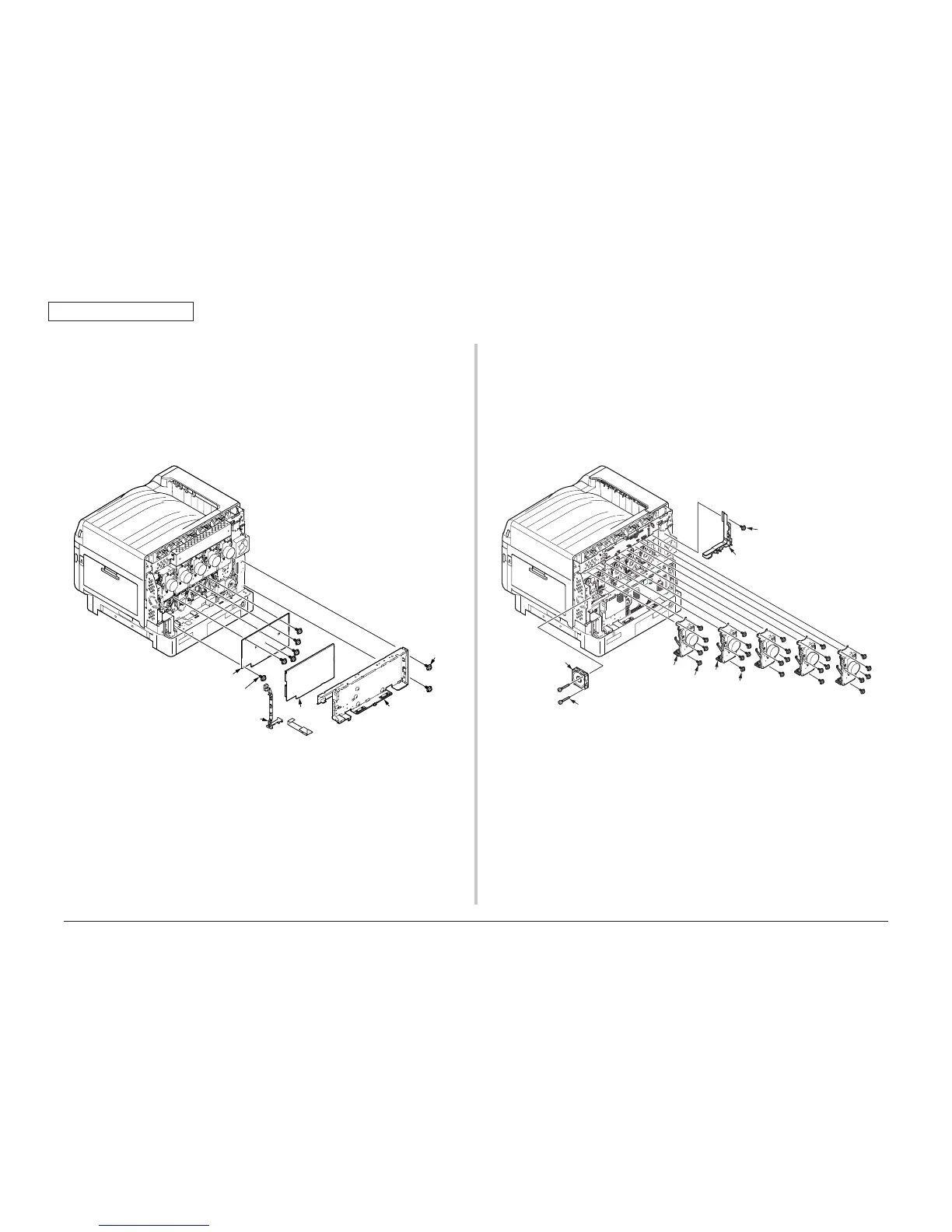

6.2.21 Board-AHV( High-voltage power supply PCB)
(1) Remove the Board-F1Y and Board-F1X.(Refer to section 6.2.20)
(2) Remove the Guide-Cable-POWDRV
①
.
(3) Remove the five screws(silver)(6mm)
②
and remove the Plate-Box-MainPCB
③
.
(4) Remove the Sheet-Insulation-HV
④
.
(5) Remove the six screws(silver)(6mm)
⑤
and remove the Board-AHV
⑥
.
6.2.22 Motor-Assy-ID
(1) Remove the Plate-Cover-MainPCB and Plate-Shield-F1D.(Refer to section 6.2.20)
(2) Remove the screw(silver)(6mm)
①
and Guide-Cable-FFC
②
.
(3) Remove the twenty screws(silver)(6mm)
③
and remove the Motor-Assy-ID
④
.
(4) Remove the five screws(silver)(6mm)
⑤
and remove the Motor-Assy-ID(K)
⑥
.
(5) Remove the two screws(silver)(30mm)
⑦
and remove the FAN
⑧
.
②×5
⑤×6
④
③
①
⑥
①
③×2 0
④×4
②
⑤×5
⑥
⑦
×2
⑧
