Oki C911 Maintenance Manual

45530603TH Rev.2
8-2
Oki Data CONFIDENTIAL
8. CONNECTION DIAGRAMS

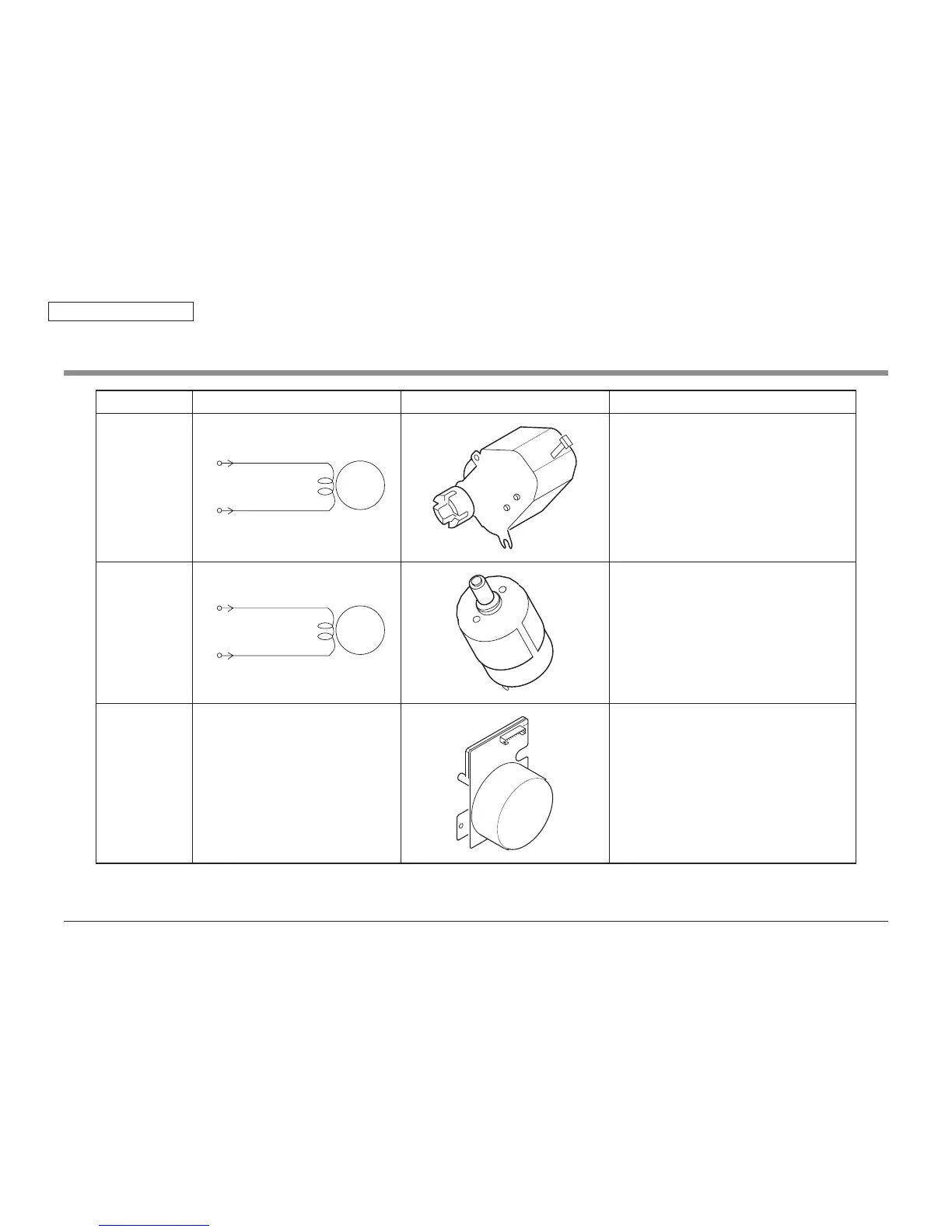

8.1 Resistance value check
Unit Electrical circuit diagram, connection Part outside view Resistance value
Tray lift-up motor
(also used by
option trays)
M
1
2
Between pin-1 and pin-2: Several decades
:
Toner supply motor
M
1
2
Between pin-1 and pin-2: Several decades
:
ID motor Fuses IP1 and IP3
Across both ends of each fuse: 1
:
or less
