Oki C911 Maintenance Manual

45530603TH Rev.2
6-32
Oki Data CONFIDENTIAL

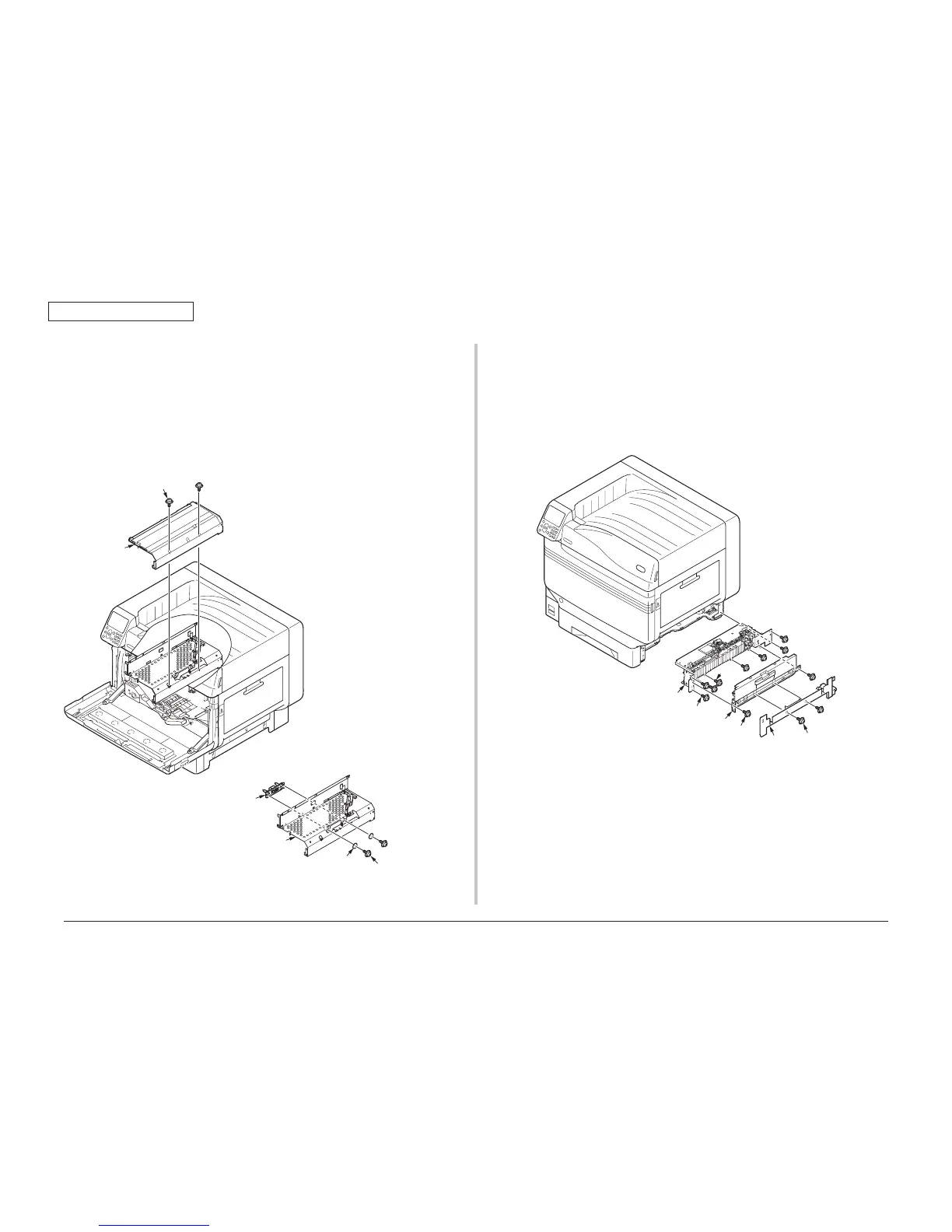

6. REPLACEMENT OF PARTS
6.2.43 Hopping-Unit
(1) Remove the MPT-Unit.(Refer to section 6.2.28)
(2) Remove the two screws(silver)(6mm)
①
and remove the Cover-Side-R
②
.
(3) Remove the two screws(silver)(6mm)
③
and remove the Cover-Guide-Tray-Assy
④
.
(4) Remove the four screws(silver)(6mm)
⑤
and four Round-head screw(black)(6mm)
⑥
and remove the Hopping-Unit
⑦
.
①×2
③×2
⑥×4
⑤×4
②
④
⑦
6.2.42 Connector-Assy-Fuser
(1) Remove the Guide-Assy-Eject.(Refer to section 6.2.13)
(2) Remove the two Round-head screws(black)(6mm)
①
and remove the Frame-Duct-
CL
②
.
(3) Remove the ten Round-head screws(black)(6mm) and remove the Plate-Side-LB
③
.
(4) Remove the two Round-head screws(black)(6mm)
④
and two washer
⑤
and
remove the Connector-Assy-Fuser
⑥
.
①×2
②
⑥
③
④×2
⑤×2
