DMTA-20015-01EN [U8778402], Rev. J, January 2014
Chapter 12
116
12.1 Serial Connector
Description
Mini-DIN, female connector
Manufacturer, number
Kycon, KMDG-8S-BS
Suggested cable connector
Kycon, KMDLA-8P

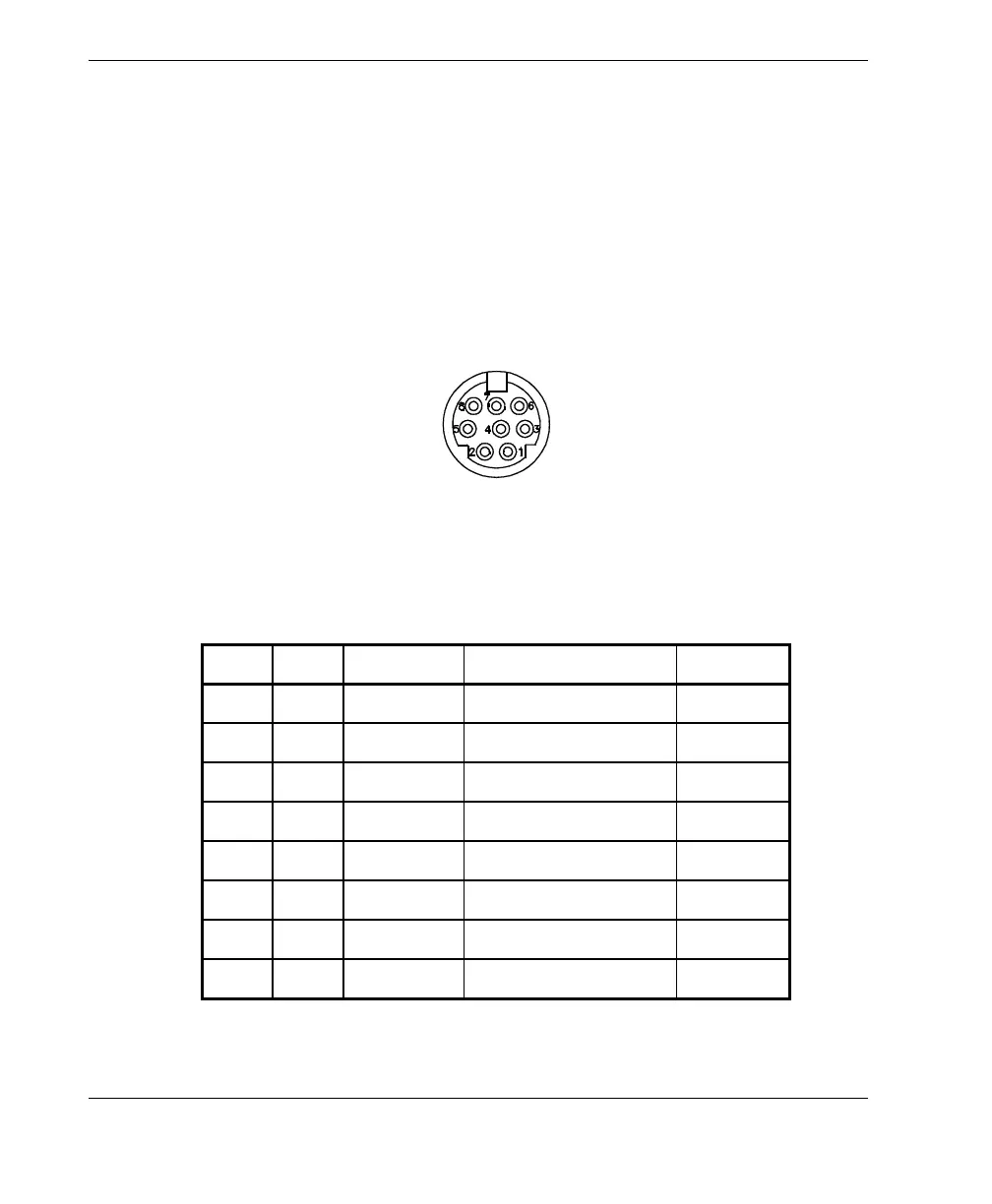

Figure 12-1 The serial connector
Table 24 Pinout for the serial connector
Pin I/O Signal Description Level
1 In Video in Video input 1 V p-p
2 – NC No connection
3 – SOUT2 Serial out RS-232
4– GNDGround
5 – SIN2 Serial in RS-232
6 – NC No connection
7 – +9 to 12 V 500 mA max.
8 – NC No connection
