Olympus OmniScan MX2 - Figure O-2 Module Model OMNI-M2-UT-2 C; Figure O-3 Fastening Hole Location and Specifications

DMTA-20015-01EN [U8778402], Rev. J, January 2014
Appendix O 194
This appendix lists the technical specifications for OmniScan UT acquisition module
model OMNI-M2-UT-2C (see Figure O-2 on page 194).

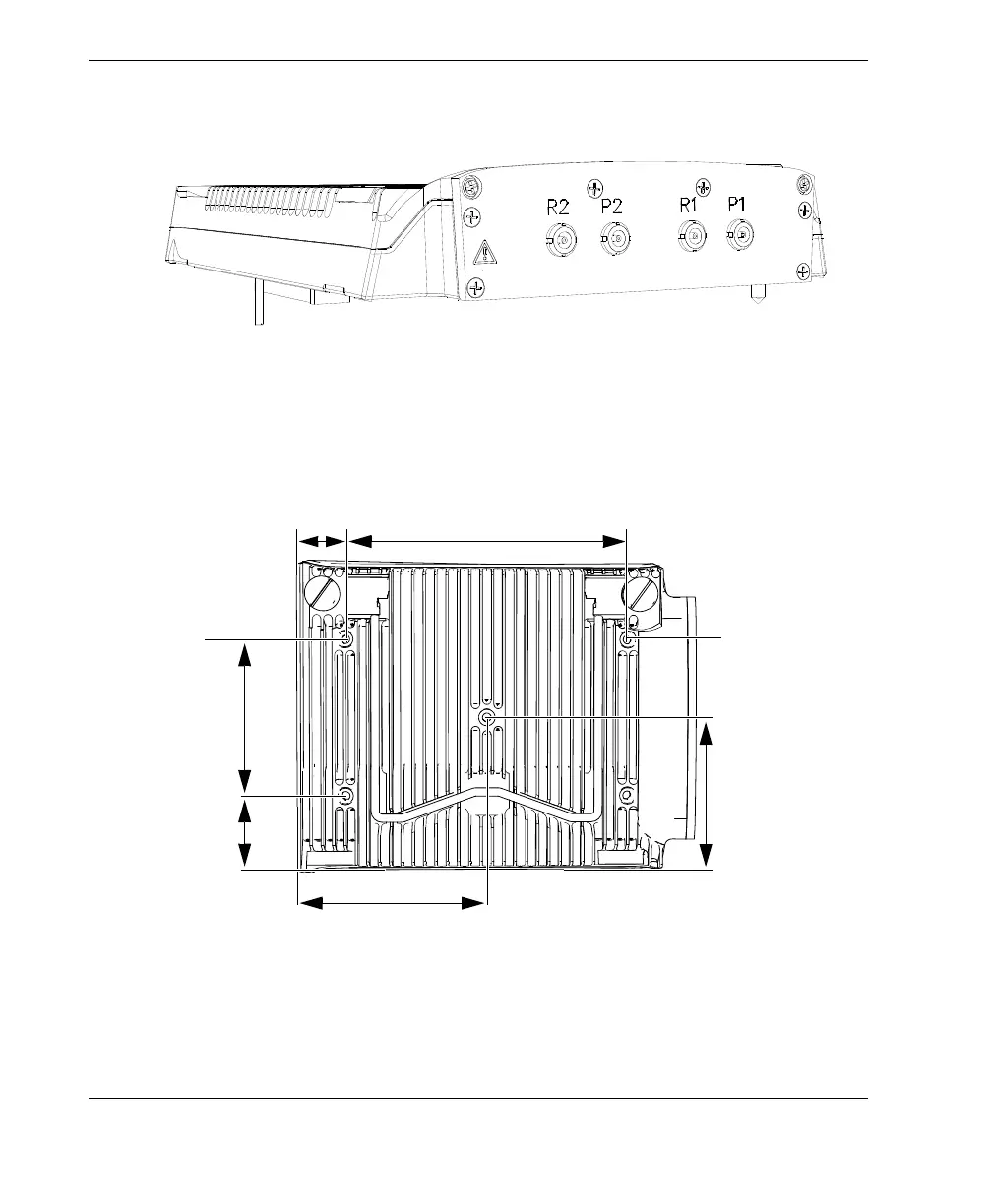

Figure O-2 Module model OMNI-M2-UT-2C
You can also attach accessories to these acquisition modules using the fastening holes
(see Figure O-3 on page 194).
Figure O-3 Fastening hole location and specifications
28 mm 162 mm
109 mm
47 mm 90 mm
5 × M6, 7.9 mm
(0.312 in.) deep
92 mm
