DMTA-20015-01EN [U8778402], Rev. J, January 2014
Overview of the Equipment
27
1.3 Left Side Panel
The left side panel of the OmniScan MX2 (see Figure 1-3 on page 27) contains
standard computer interface ports used for expanded connectivity.

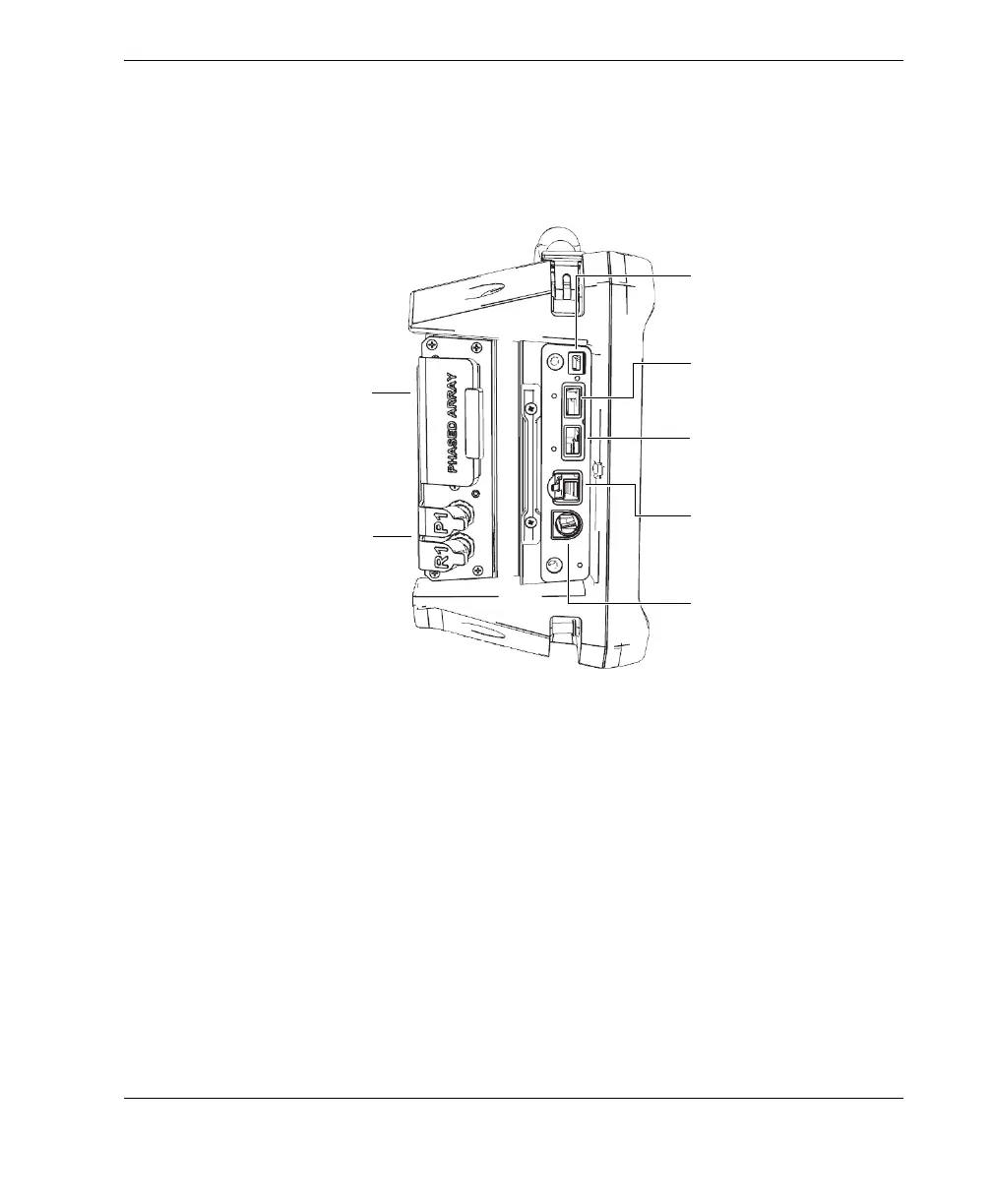

Figure 1-3 Left side panel of the OmniScan MX2
USB ports (3)
The USB ports (see Figure 1-3 on page 27) accommodate USB peripherals such as
external keyboards, mice, storage devices, or printers.
Ethernet (RJ-45) port
Used to connect to an Ethernet network.
Serial port
Used mainly for debugging, or to supply DC power to accessories.
OTG (On-the-Go USB port,
compatible with USB 2.0)
PA connector
Ethernet (RJ-45) port
Serial port
High-speed (HS) USB port
(compatible with USB 2.0)
Full-speed (FS) USB port
(compatible with USB 1.1)
UT connectors
