2.4.4 Battery Removal and Installation
To remove or install a battery
1. On the right side panel, turn the two quarter-turn latches to open the battery
compartment door.
2. Pull the cloth tab to remove the battery (see Figure 2-6 on page 38).

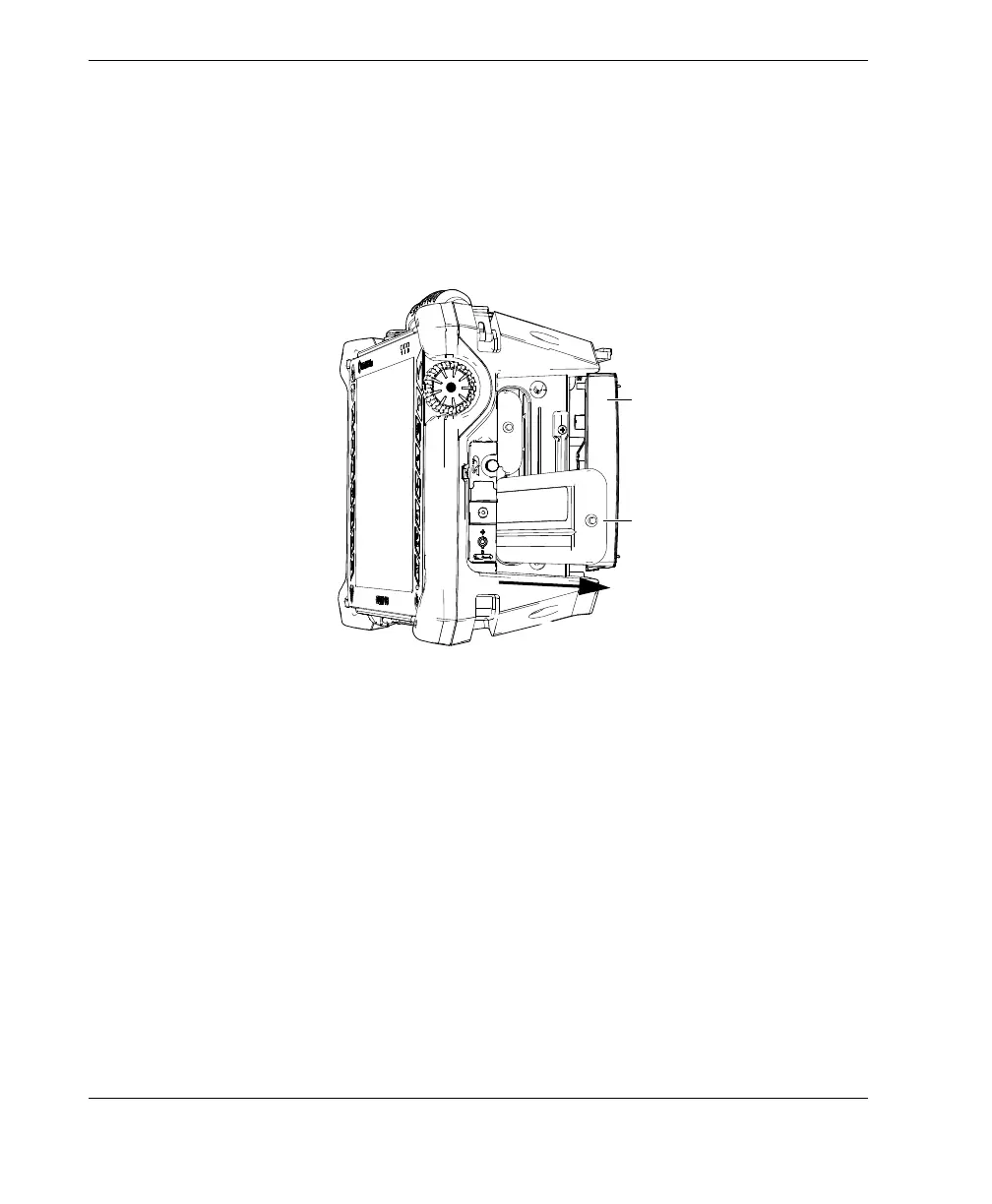

Figure 2-6 Removing a lithium-ion battery
3. Insert a new battery. Make sure that the groove on the battery is aligned with the
small edge inside the battery compartment.
4. Close the battery compartment door.
The batteries are recharged inside the OmniScan MX2 when it is connected to a DC
power adaptor. Connecting an adaptor automatically starts the recharging process.
The batteries can also be recharged using an optional external charger.
2.4.5 Battery Charging
To charge the OmniScan MX2 batteries
 Connect the OmniScan MX2 to a proper DC power adaptor.
Battery compartment door
Lithium-ion battery
