DMTA-20015-01EN [U8778402], Rev. J, January 2014
Acquisition Module Description and Replacement Procedures
133
To clean the fan filter
1. On the fan grill, remove the screw securing the grill to the module (see Figure B-3
on page 133).

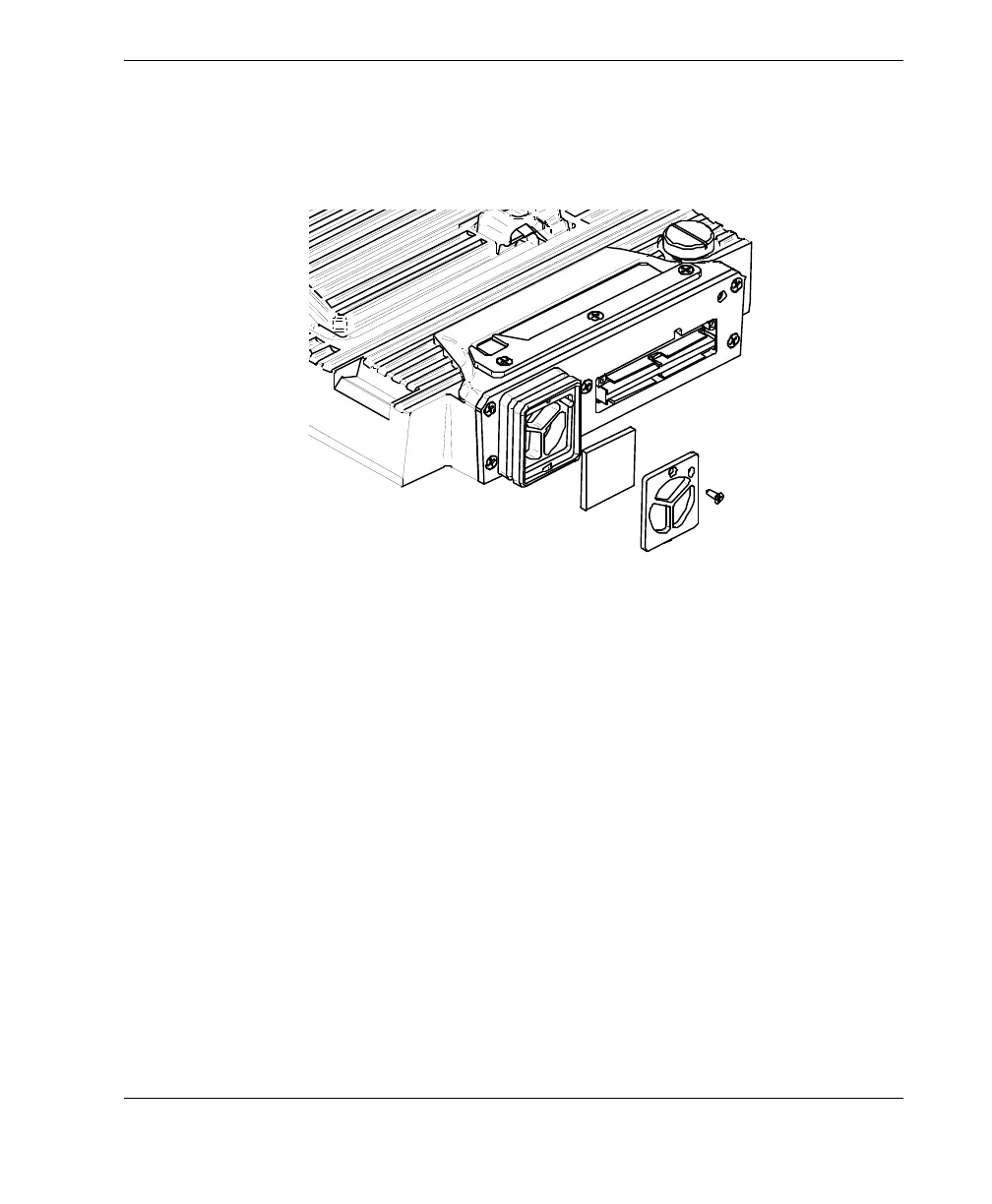

Figure B-3 The grill and filter of the OMNI-M-PA32nn model
2. Remove the filter.
3. Clean the filter using soap and water.
4. Rinse the filter thoroughly with clean water and allow to dry.
5. Reinstall the filter inside the fan opening.
6. Reinstall the grill, and then secure it with the screw.
