DMTA-20015-01EN [U8778402], Rev. J, January 2014
Connector References
63
6.2 Scanner Interface Connector
Description
LEMO, 16-pin female circular connector
Manufacturer, number
LEMO, EEG.1K.316.CLL
Suggested cable connector
LEMO, FGG.1K.316.CLAC65Z

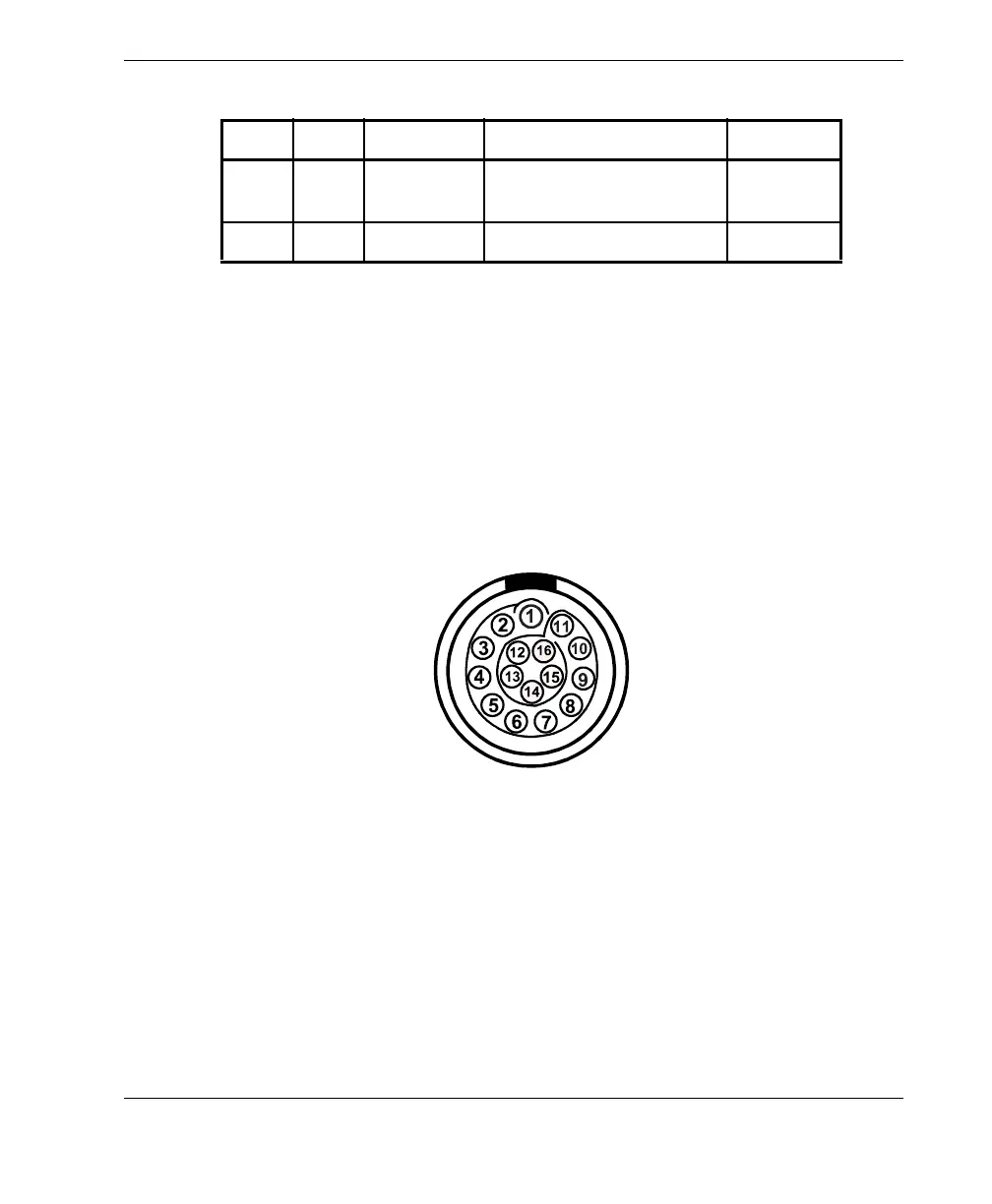

Figure 6-2 The scanner interface LEMO connector (contact view)
7–+10V to
12.6 V
500 mA max., short-
circuit protected
N/A
8 – NC No connection N/A
Table 12 Pinout for the serial connector (continued)
Pin I/O Signal Description Level
