1.2 Right Side Panel
The right side panel of the OmniScan MX2 (see Figure 1-2 on page 26) contains
various input and output ports.

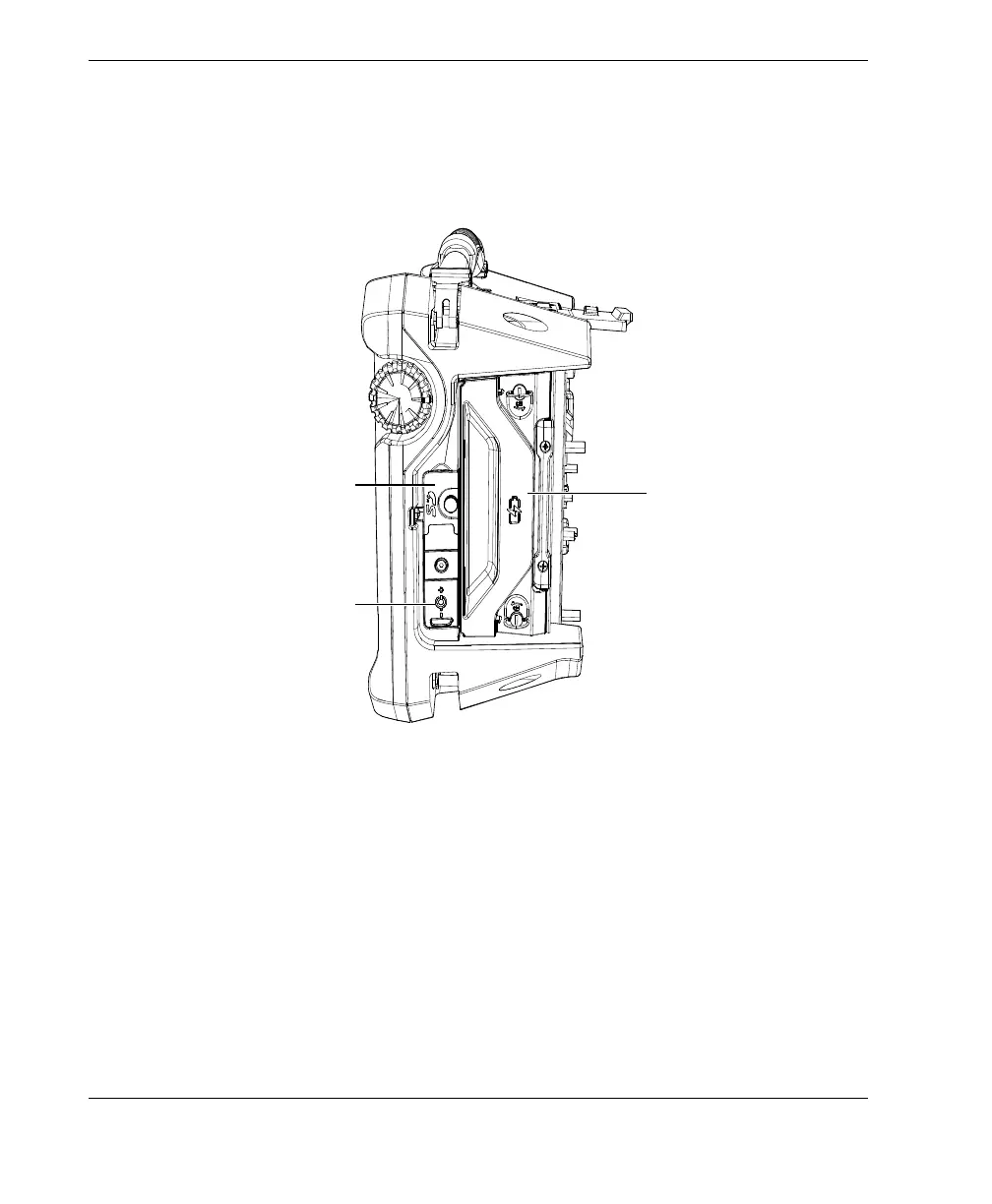

Figure 1-2 Right side panel of the OmniScan MX2
Memory card slot
Slot for inserting the Secure Digital High Capacity (SDHC) memory card.
DC power adaptor plug
Used to connect an external DC power adaptor to the OmniScan MX2.
Battery compartment door
This door provides access to the battery compartment. Battery replacement is
covered in section 2.4.4 on page 38.
DC power adaptor plug
Memory card slot
Battery compartment door
