DMTA-20015-01EN [U8778402], Rev. J, January 2014
Appendix M
180

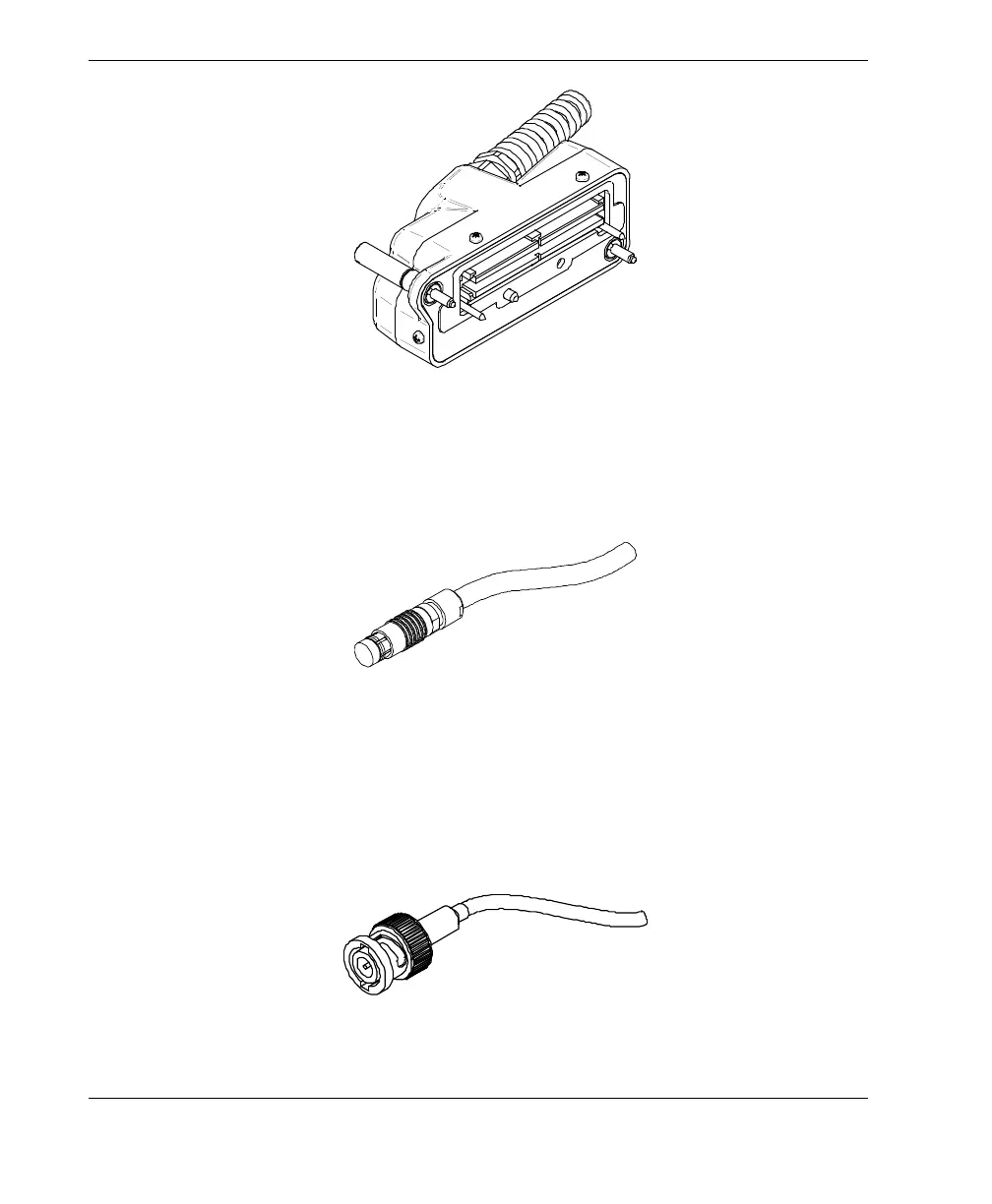

Figure M-3 The Olympus ECA probe connector
• The second type is a 19-pin connector (see Figure M-4 on page 180) used in
multiple-coil eddy current technology probes.
Figure M-4 The 19-pin eddy current probe connector
The references for this connector are found in section M.4 on page 181, “
4CH
Connector References.”
• The third type is a BNC connector (see Figure M-5 on page 180), used in certain
single-coil eddy current technology probes.
Figure M-5 An eddy current probe BNC connector
