Olympus OmniScan MX2 - Acoustic Specifications; Figure N-5 Fastening Hole Location and Specifications; N.1 Acoustic Specifications; Table 70 Acoustic Specifications - UT Channel Using UT Connector

DMTA-20015-01EN [U8778402], Rev. J, January 2014
Appendix N 188

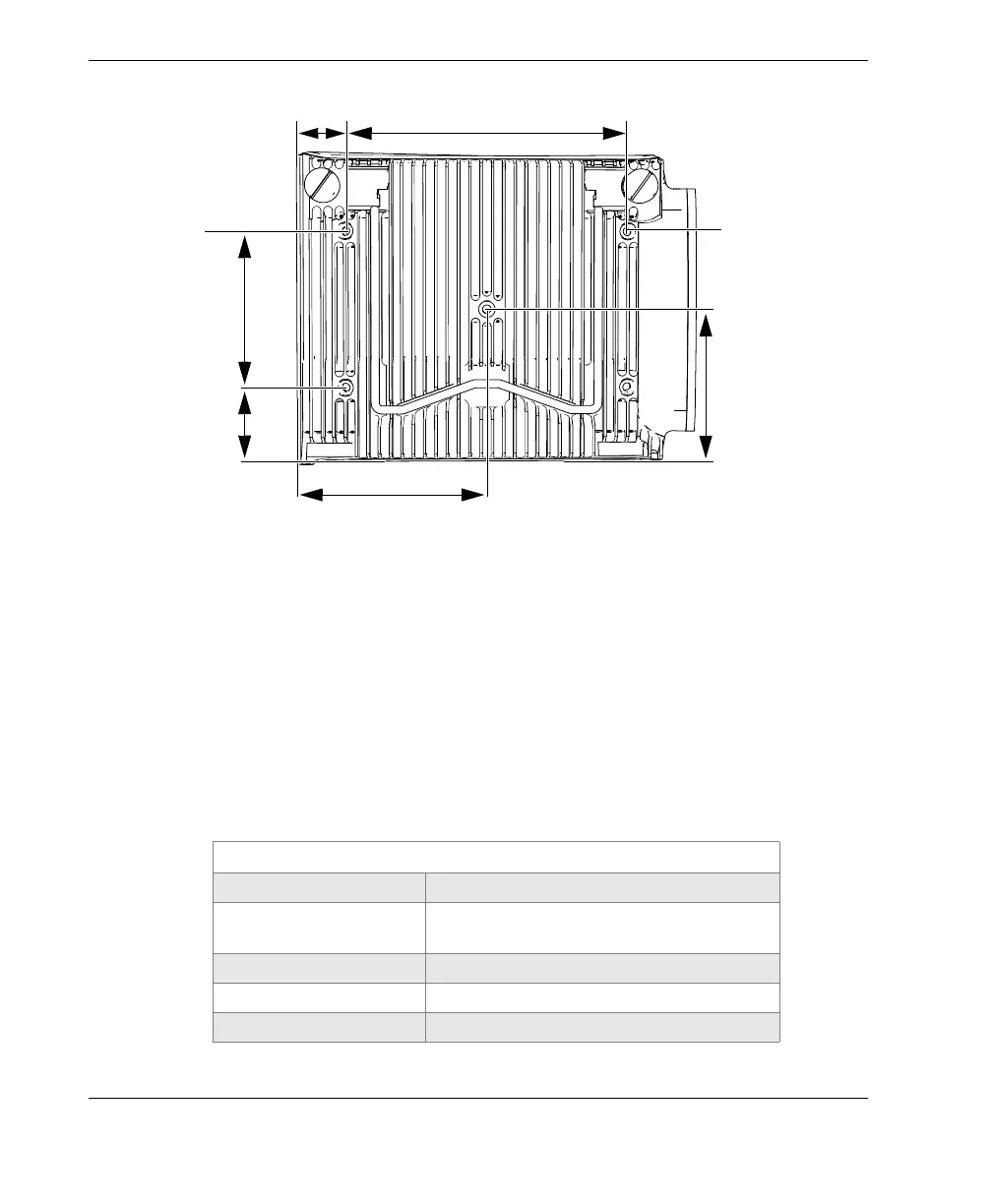

Figure N-5 Fastening hole location and specifications
N.1 Acoustic Specifications
This section details the acoustic specifications of the pulser, receiver, and beam
formation, for both UT and PA modes (see Table 70 on page 188 and Table 71 on
page 189).
Table 70 Acoustic specifications — UT channel using UT connector
Pulser
Voltage 95 V, 175 V, and 340 V
Pulse width Adjustable from 30 ns to 1000 ns; resolution
of 2.5 ns
Fall time <10 ns
Pulse shape Negative square pulse
Output impedance <30 Ω
28 mm 162 mm
109 mm
47 mm 90 mm
M6, 7.9 mm
(0.312 in.) deep
92 mm
