Olympus OmniScan MX2 - 4 CH Connector References; Figure L-3 the 1 CH, BNC Eddy Current Probe Connector; Figure L-4 the 4 CH Connector; Table 62 Pinout for the

DMTA-20015-01EN [U8778402], Rev. J, January 2014
OMNI-M-ECT4 Module Specifications 173

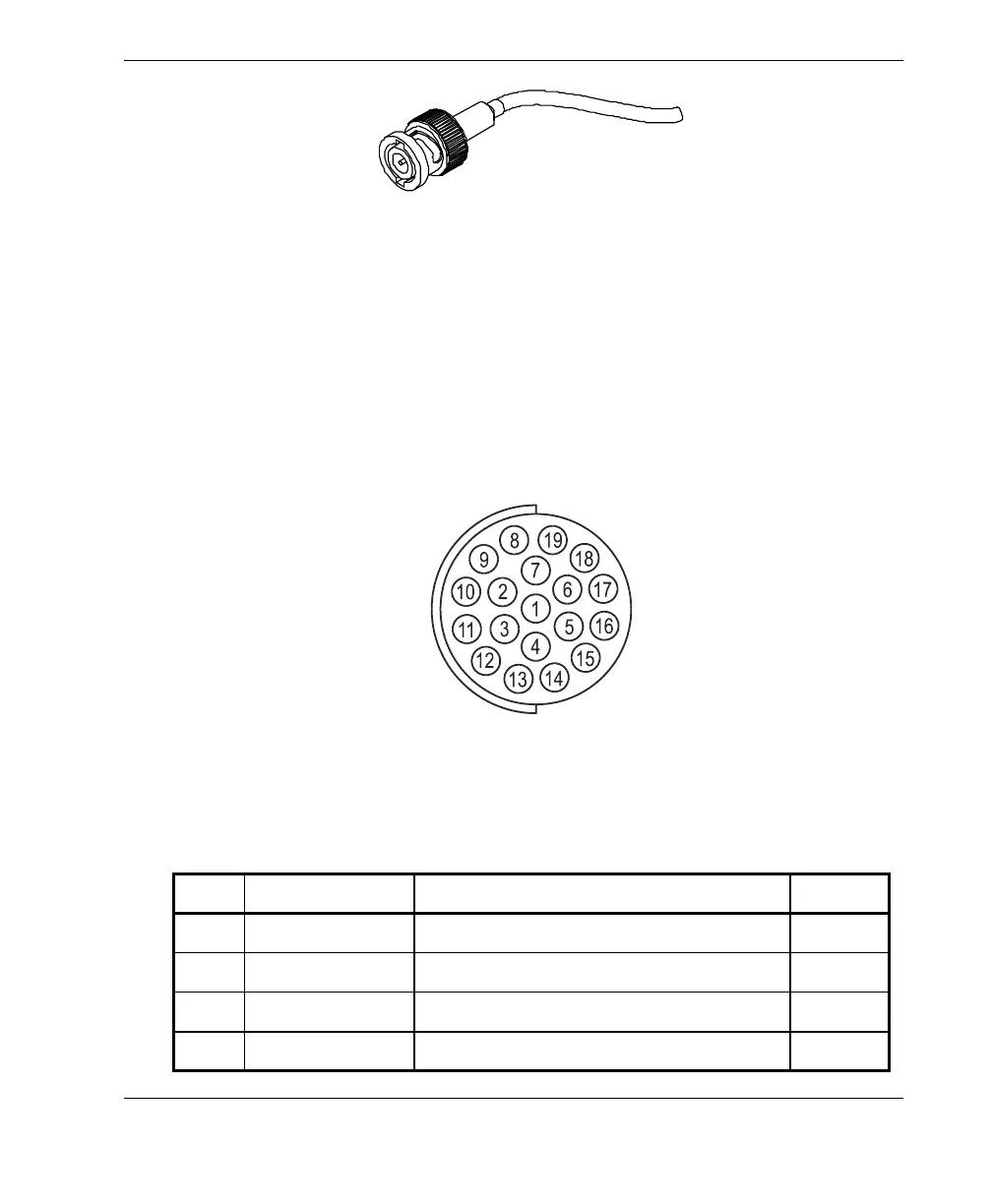

Figure L-3 The 1CH, BNC eddy current probe connector
L.4 4CH Connector References
Description
19-pin connector
Manufacturer, number
Fischer, 1031-A019-130
Figure L-4 The
4CH connector
Table 62 Pinout for the
4CH connector [OMNI-M-ECT4 module]
Pin Signal Description Current
1PROBEDATA_PProbe ID Data
2 GEN50_1 Main generator 50/100 Ω termination #1
3 HSWAP1 Automatic probe detection
4ANGDGround
