DMTA-20015-01EN [U8778402], Rev. J, January 2014
Chapter 6
66
6.3 Scanner Interface Adaptor
The OmniScan MX2 is supplied with an adaptor cable, which is used to connect
scanners equipped with a DE-15 connector to the new LEMO scanner interface.
Description
LEMO connector
Manufacturer, number
LEMO, FGG.1K.316.CLA.C65Z

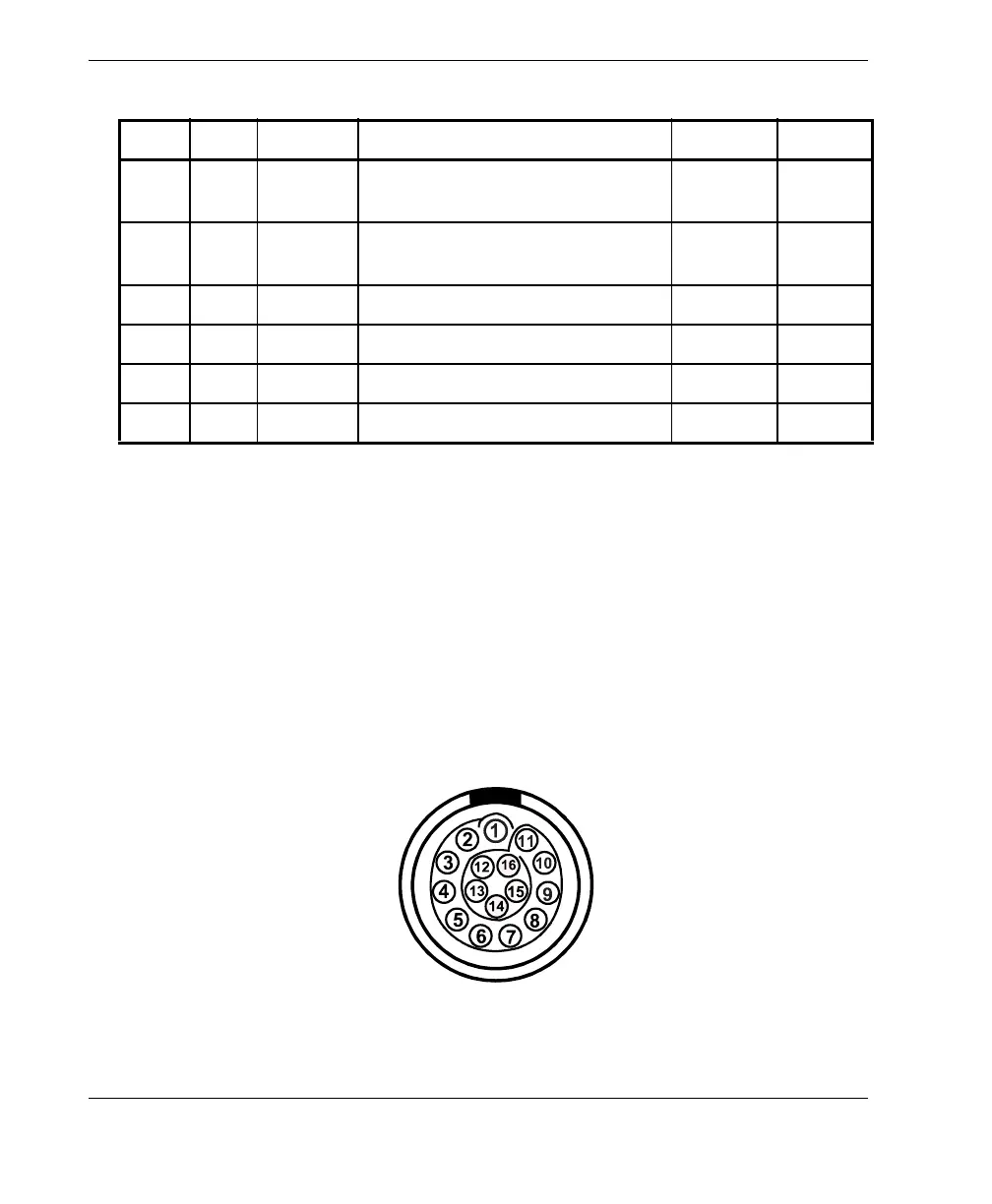

Figure 6-3 The scanner interface adaptor LEMO connector (solder-cup view)
11 In PhB
axis 2
Encoder 2: phase B/direction/
N.U./N.U.
N/A TTL
12 In PhA
axis 2
Encoder 2: phase A/clock/up/
down
N/A TTL
13 Out DOUT3 Digital output 3 ±25 mA TTL
14 In RRX RX N/A RS-232
15 Out RTX TX N/A RS-232
16 – GND Ground N/A
a. N.U. = Not used
Table 13 Pinout for the scanner interface LEMO connector (continued)
Pin I/O Signal Description Current Level
