Olympus OmniScan MX2 - Figure 6-4 the Scanner Interface Adaptor DE-15 Connector (Solder-Cup View)

DMTA-20015-01EN [U8778402], Rev. J, January 2014
Connector References 67
Description
DE-15 connector
Manufacturer, number
Amphenol, 17EHD-015-SAA-000

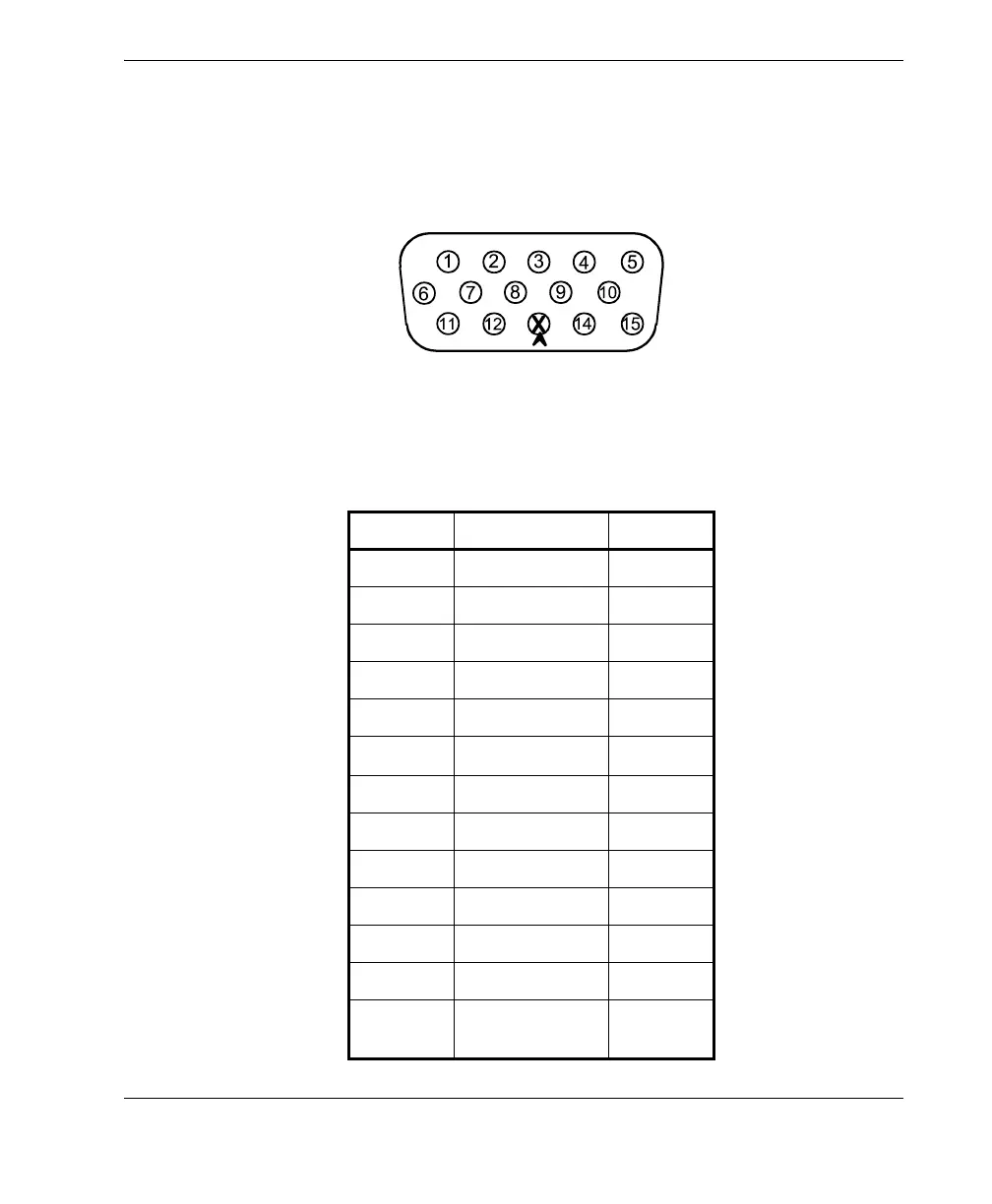

Figure 6-4 The scanner interface adaptor DE-15 connector (solder-cup view)
Table 14 Scanner interface adaptor pinout [DE-15 to LEMO]
LEMO Signal DE-15
1Analog In4
2+5V3
3DIN11
4DIN22
5DIN35
6
N.U.
a
7DOUT16
8DOUT214
9PHA-19
10 PHB-1 10
11 PHB-2 12
12 PHA-2 11
13 Connector
keying (index)
13
(removed)
