OMICRON
137
Test cards for Advan
ced
CT
Test mode
8.9
Comment card
The
Comment
card of the Advanced
CT
Test mode is on
ly available if it
is enabled in the
Select Cards
page (Default Test Ca
rd Selection or
Select Car
ds
soft key in the
CT-Object
card).
Use the
Comment
card to enter ad
ditional notes regarding your te
st.

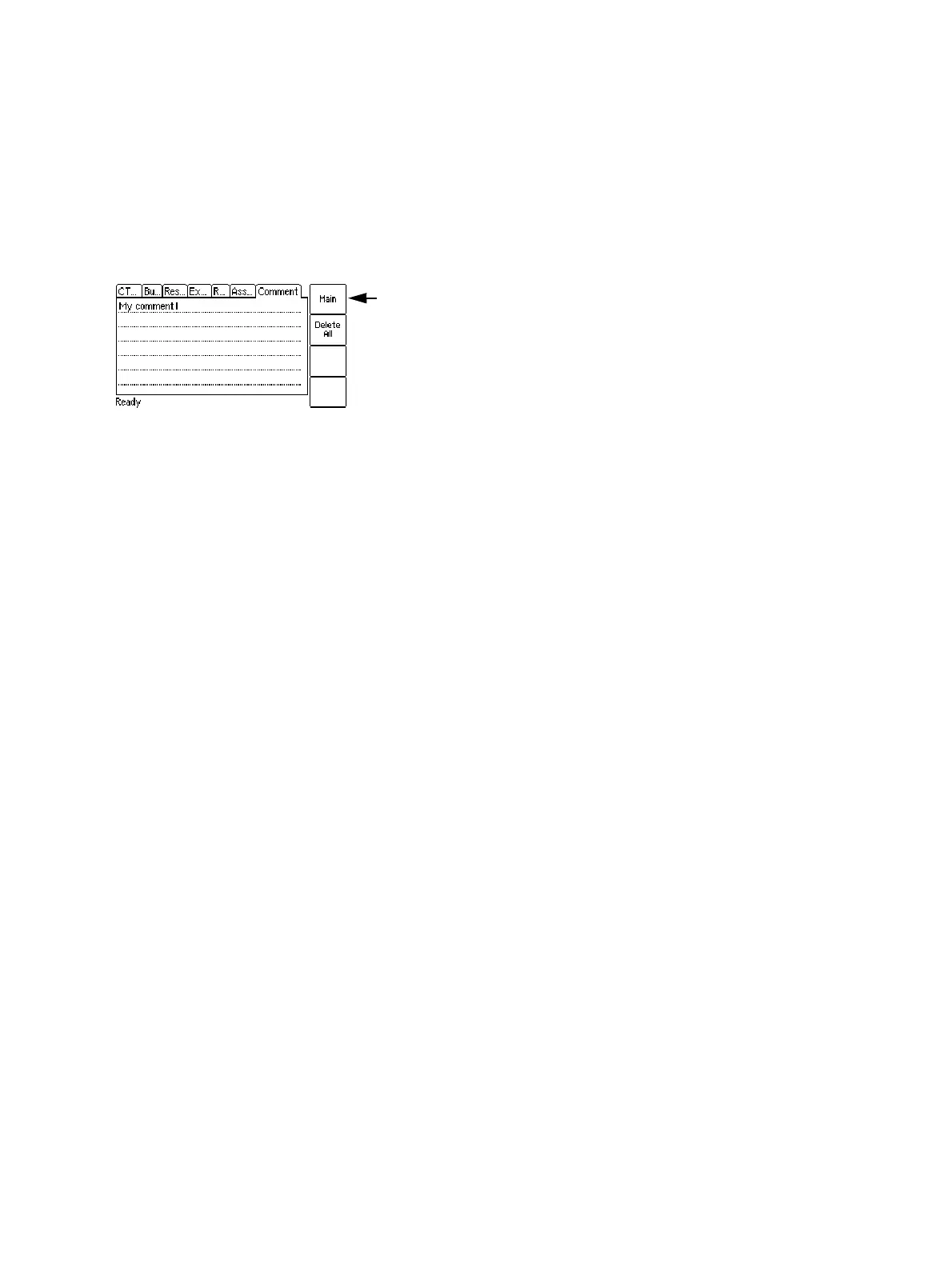

Figure
8-20:
Comment
card
Press to op
en the ma
in menu
