Introduction
2.3 Functional components of CT Analyzer
2.3.1 Overview

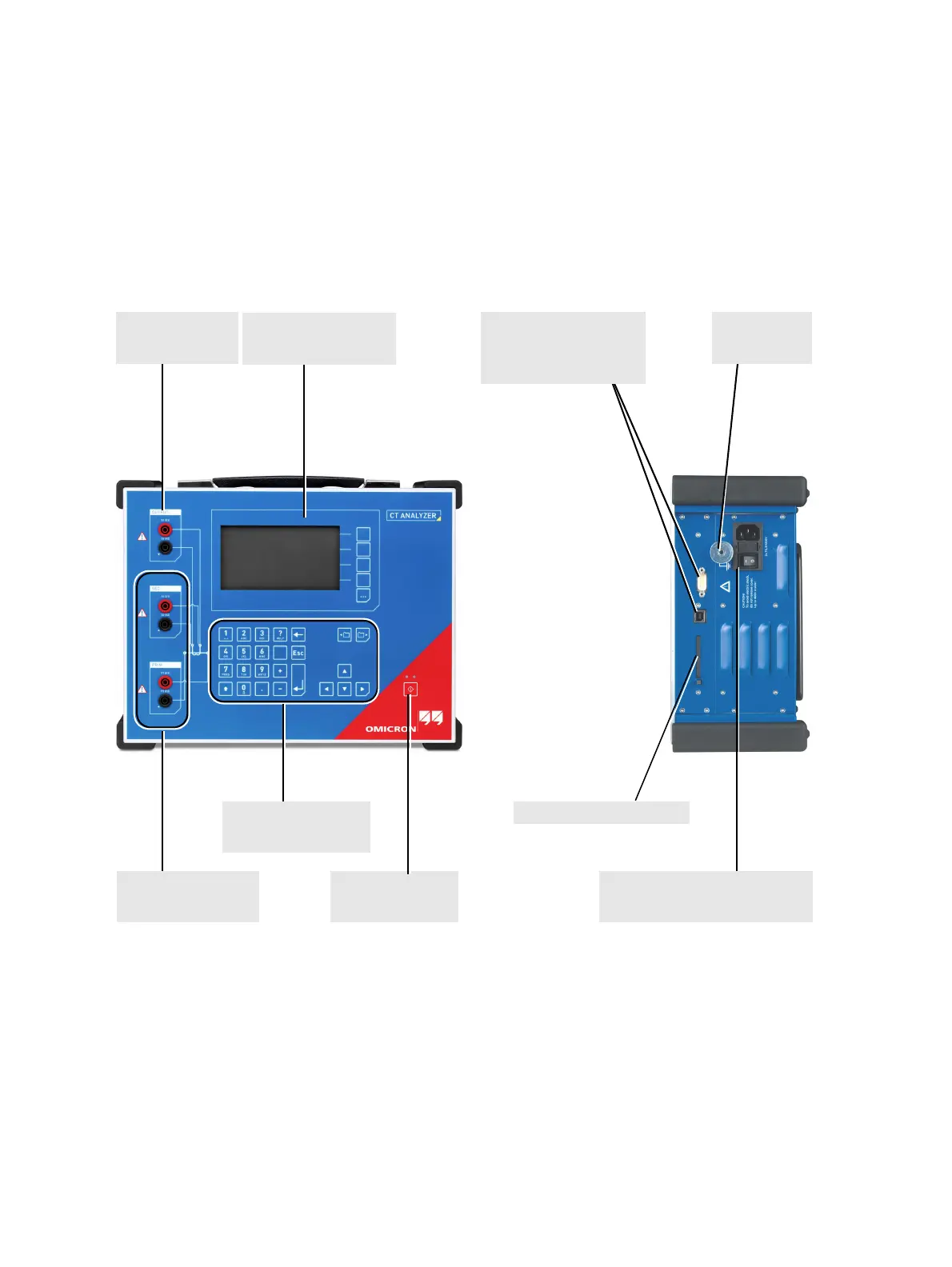

Figure 2-1 provides an overview of the operating and display elements and the connectors of
CT Analyzer.
Figure 2-1: CT Analyzer overview
Compact Flash card slot
Remote control interface
RS232 interface and USB
interface for connecting
CT Analyzer to a PC
Grounding
terminal
Keyboard
with cursor keys and
card selection keys
OUTPUT
Generator output
Display
with context-dependent
keys ("soft keys")
SEC, PRIM
Measurement inputs
I/0 key
with status LEDs
Mains connection unit
Mains socket with fuse and
ON/OFF switch
