OMICRON 19
Introduction

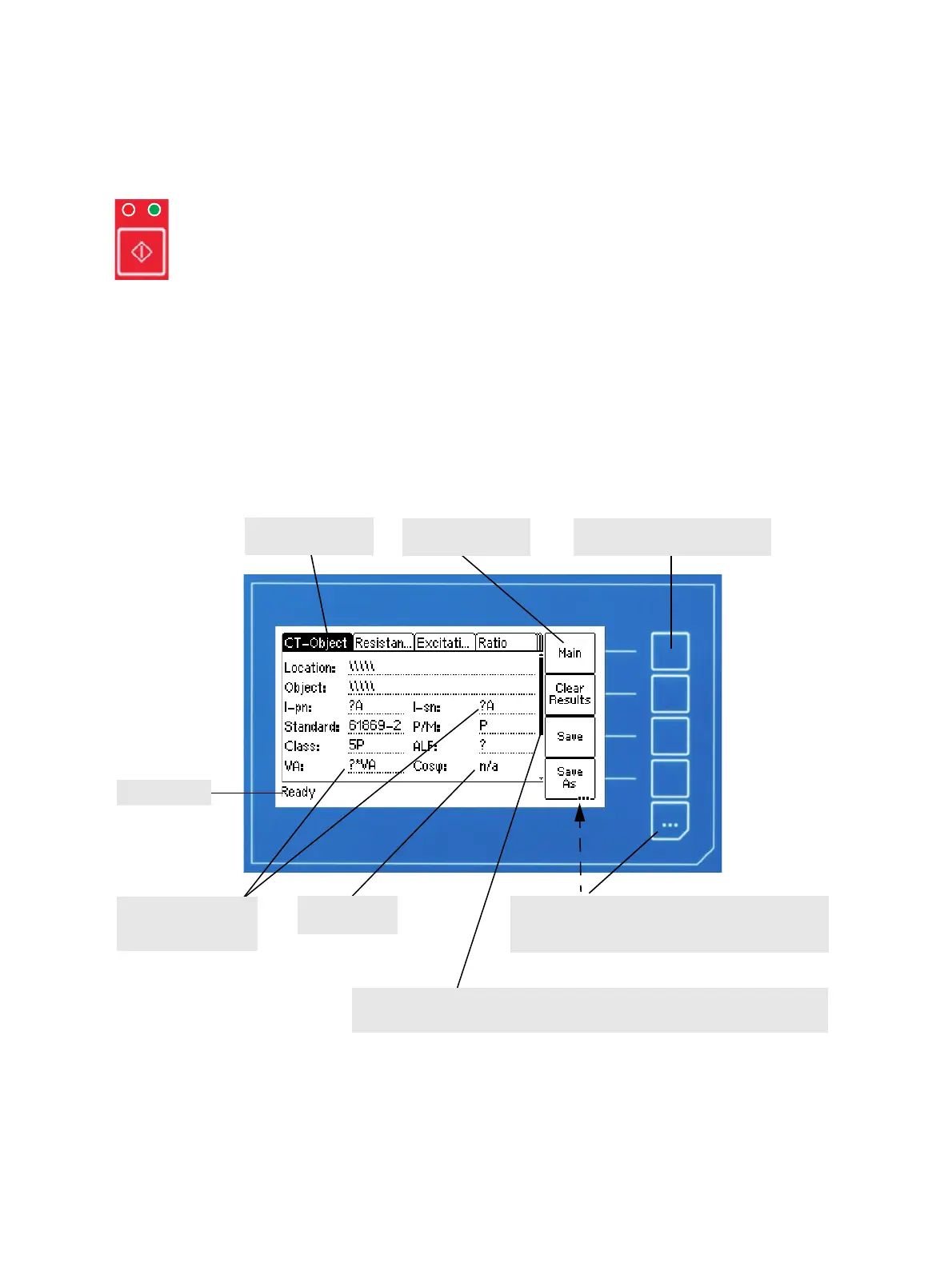

2.3.6 I/0 key with status LEDs
Red LED on the left, green LED on the right.
I/0 key to start the test.
During the boot process after switching CT Analyzer on, both LEDs are on. The red LED goes
off when the boot process is finished and CT Analyzer is ready for operation.
The green LED lights continuously to indicate that the equipment is operational and no voltage is
applied to the test setup.
The red LED flashes to indicate that a test is in progress and voltage is applied to the test setup. Do not
touch any part of the test setup while the red LED flashes.
Any other behavior of the status LEDs than described above indicates an error. In this case, switch off
CT Analyzer. Do not touch any part of the test setup until the red LED is off and contact the OMICRON
Technical Support (refer to chapter "Support" on page 29).
2.3.7 Display with soft keys
Figure 2-6: Display with context-dependent soft keys
Card area with tab
Soft key description
fields
Soft keys, labelled by the soft
key description fields
If 3 points are visible in the lowermost soft key
description field (see dashed arrow), this key can be
used to open an additional set of soft keys
Edit fields
(underlined by dotted
lines)
Status line
A scrollbar is displayed if the content of a card is too long to be displayed at a time.
Use the up/down cursor keys on the keyboard to scroll through the card.
Display field
(not underlined)
