CT Analyzer User Manual
20 OMICRON
The following icons may be displayed in the status line:

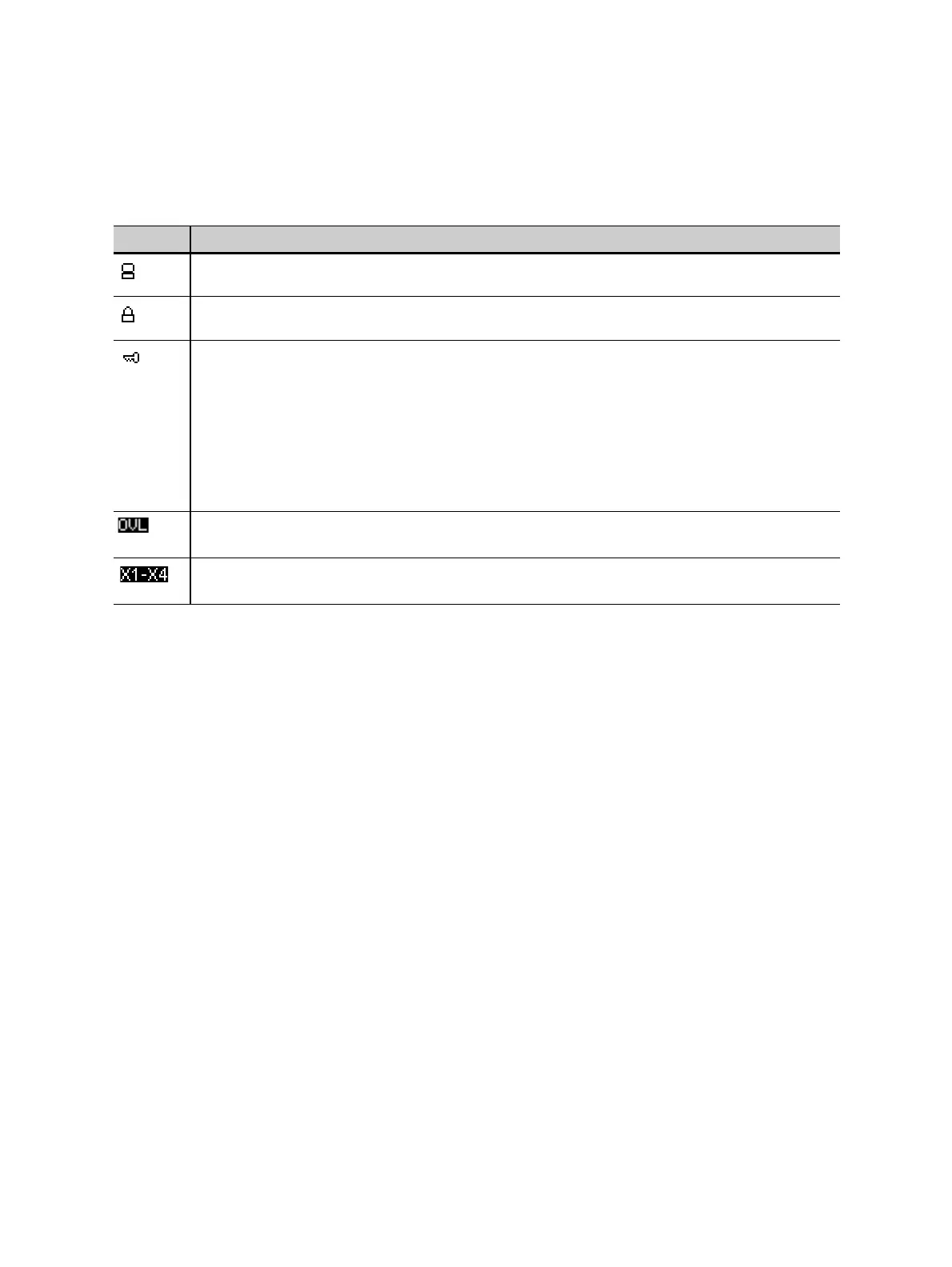

Table 2-1: Icons displayed in the status line
Icon Description
Remote control. The CT Analyzer Suite software established connection to CT Analyzer.
The keyboard on CT Analyzer is locked until the running test is finished.
Security key. The data measured with CT Analyzer can be stored in XML files. Stored files
are protected by a security checksum to prevent the data within these files from being
edited.
If CT Analyzer displays the data of a previously stored test, and the data in this file are
valid, a key is shown in the status line. If the data are invalid since someone tried to edit
them later, a broken key is displayed.
Note: When loading older files containing no security checksum, no security information is
shown.
Overload indication. CT Analyzer could not output the required test current or take all
necessary measurement points due to an overload.
Multi-ratio CT measurement. Indicates that a multi-ratio CT test using the optional CT SB2
switch box has been initialized on CT Analyzer (here: full tap combination X1-X4).
