CT SB2 User Manual
58 OMICRON
10 Technical data
10.1 Specifications
10.2 PC and CTA interfaces
The PC interface of the CT SB2 switch box is exclusively intended to connect the CT SB2 switch box to
a computer (e.g., running the CT Analyzer Suite software).
The CTA interface of the CT SB2 switch box is exclusively intended to connect CT SB2 to a CT Analyzer
test set.

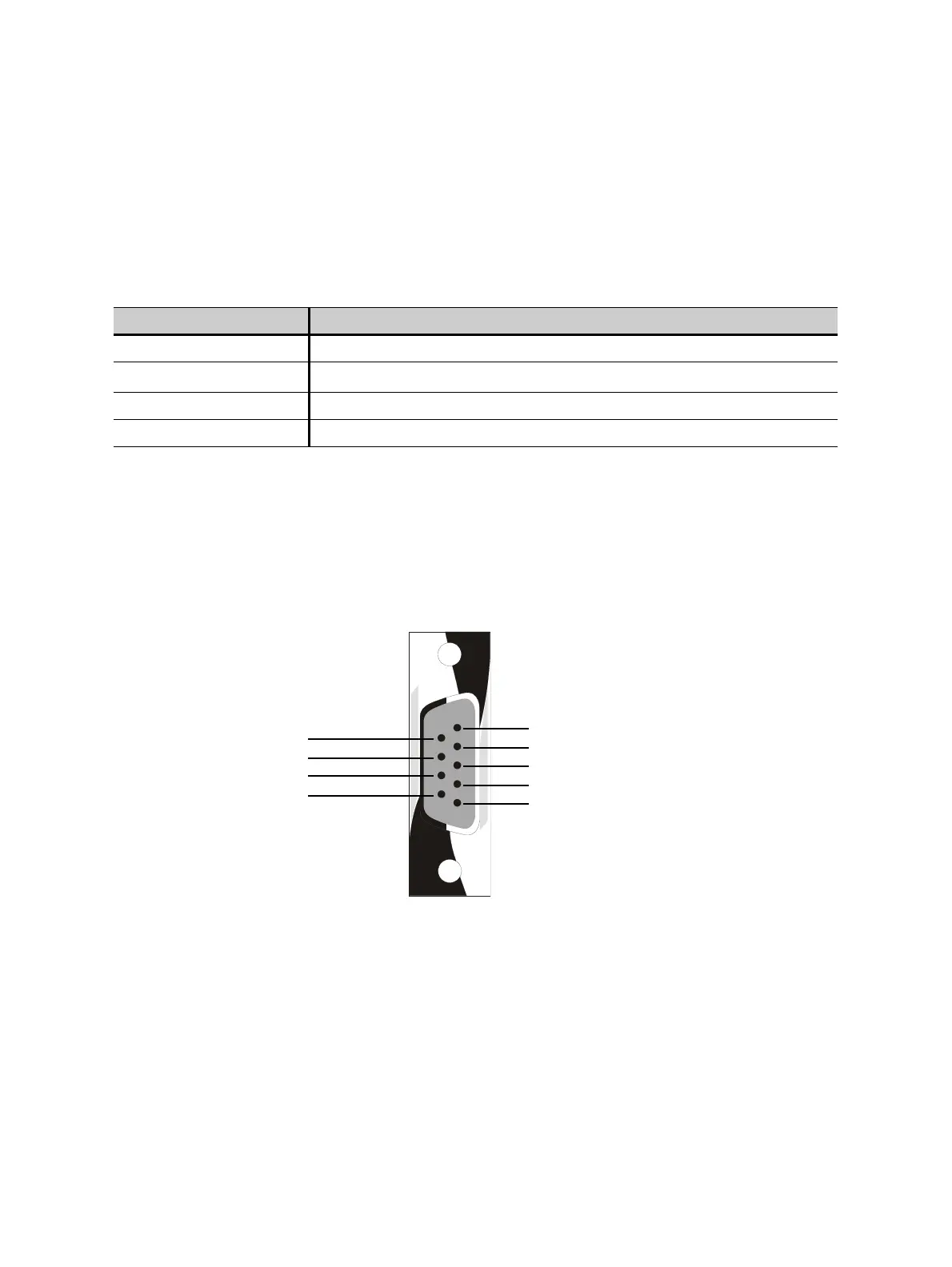

Figure 10-1: PC interface on CT SB2
Table 10-1: CT SB2 specifications
Characteristic Rating
Mains connection Connector according to IEC 60320
Mains voltage 100 - 240V
AC
/ 50/60Hz / 0.2A
Mains fuses 2 x T2.0AH 250V (high-breaking capacity wire fuse 5 x 20mm)
Output voltage 0 - 120V
51
96
5 GND (signal ground)
4nc
3 RxD (data in / receive)
2 TxD (data out / transmit)
1nc
9nc
8RTS (out)
7CTS (in)
6nc
PC interface
9-pole SUB-D connector, female
Outside view onto the sockets on CT SB2!
