CT Analyzer User Manual
18 OMICRON
2.3.5 Inputs and outputs

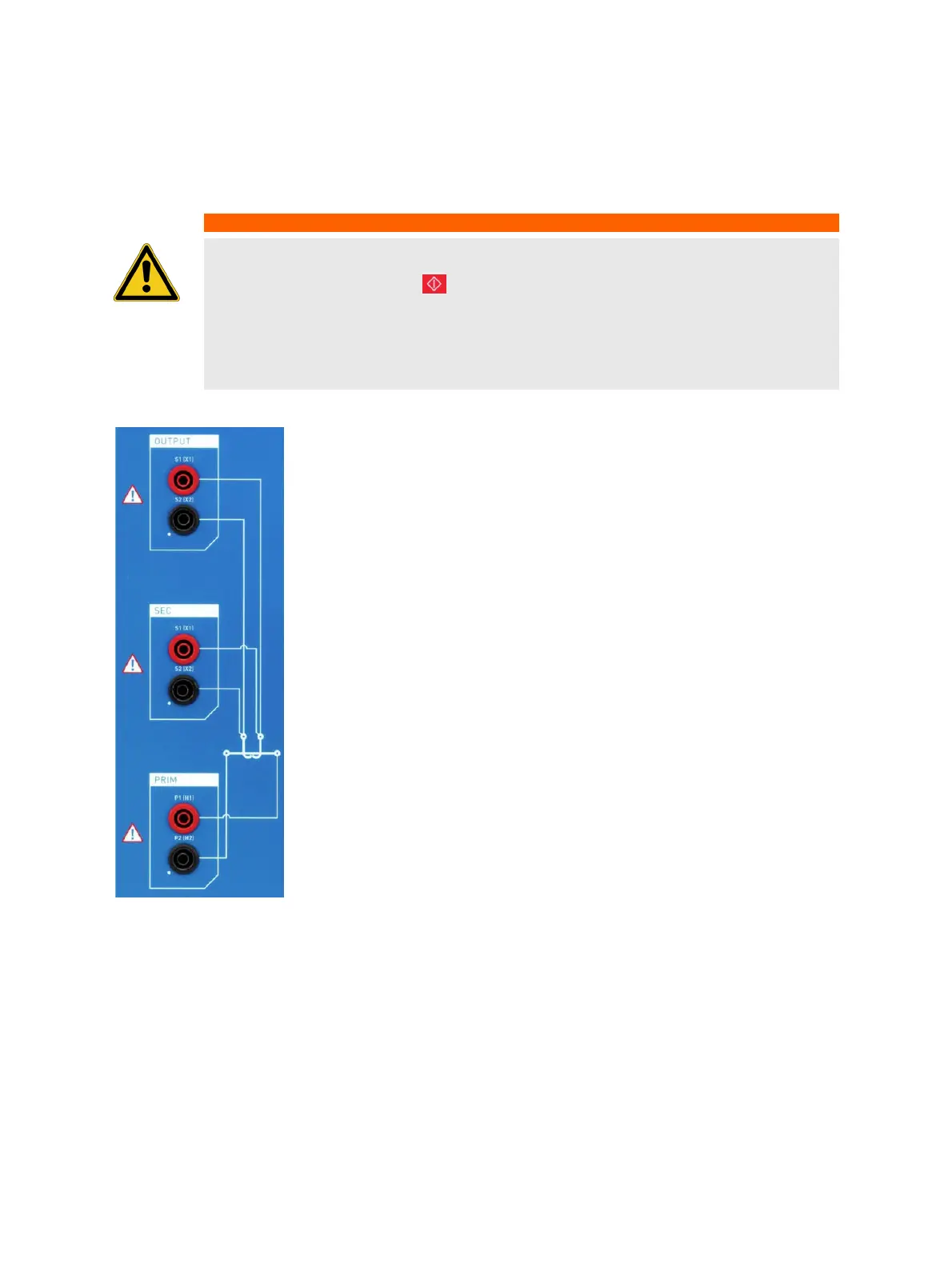

Figure 2-5: Inputs and outputs of CT Analyzer
WARNING
Death or severe injury caused by high voltage possible
As long as the red LED of the key is flashing, the output is active and lethal voltages
can occur due to the high energy stored in external inductors.
► Do not touch the test object or the measurement leads while the red LED is flashing.
► Wait until the red LED is off and the green LED is on before touching the measurement
setup.
OUTPUT
Generator output.
AC: 40V
rms
, 5A
rms
DC: 120V, 5A (15A
peak
)
SEC
Measurement input for secondary side of CT, 300V
AC
max.
PRIM
Measurement input for primary side of CT, 30V
AC
max.
