OMICRON 19
Measurement setup
4.4 Basic measurement setup for single-ratio CT testing
Note: If you do not want to perform burden or primary winding resistance measurement, you should
preferably use the normal single-ratio test modes of CT Analyzer without using CT SB2. Remove the
data connection cable from the remote control interface of CT Analyzer if you do not use CT SB2 for CT
testing with CT Analyzer.

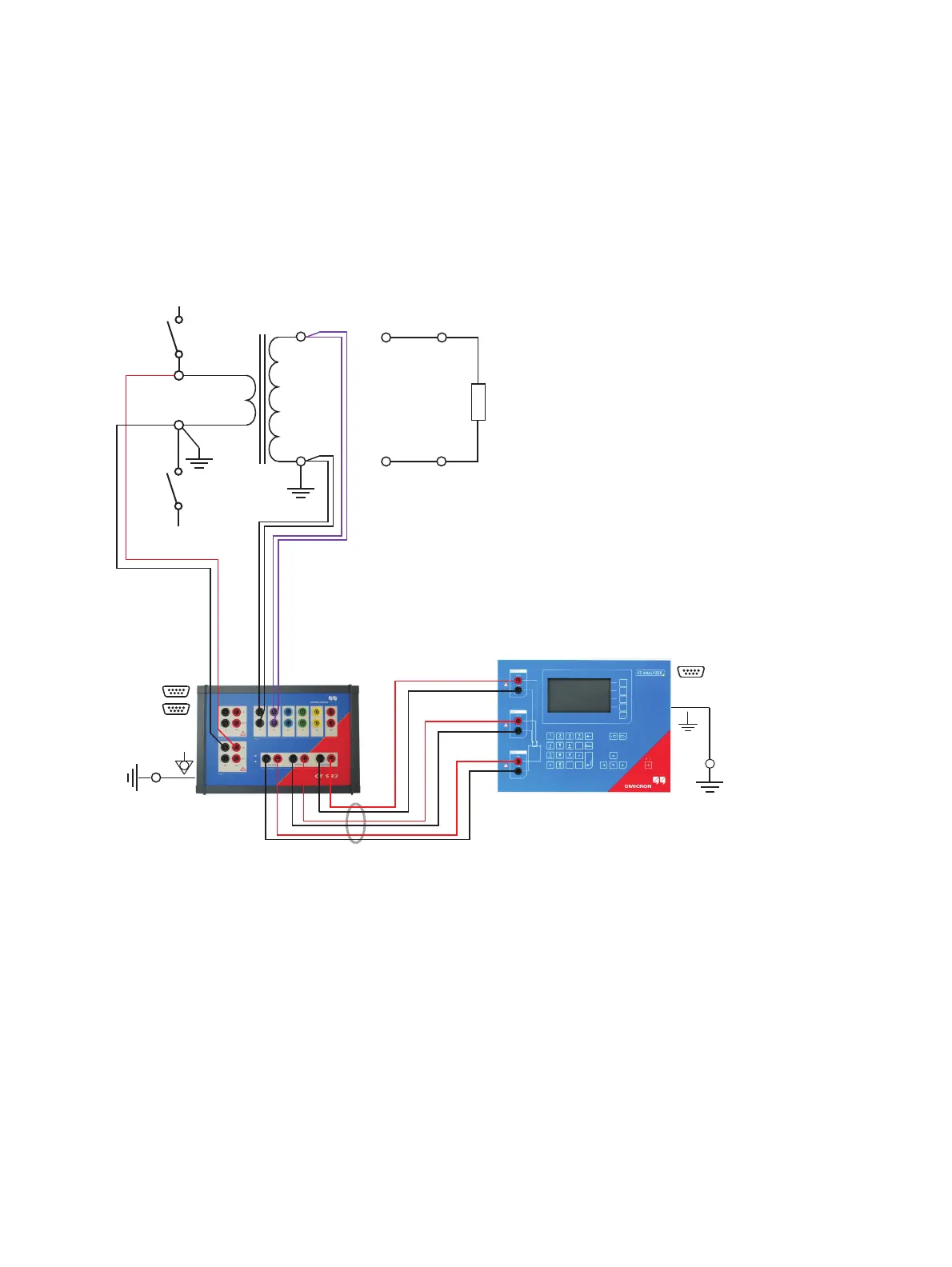

Figure 4-3: Basic measurement setup for single-ratio CT testing (no burden measurement, no primary
winding resistance measurement)
*
*
P1
P2
X2
X1
Burden
Wiring for burden measurement, see Figure 4-4
CT
* For information on how to connect the communication link between CT SB2 and CT Analyzer, please refer to section 4.2 on
page 17.
