6.8.3 Miscellaneous settings

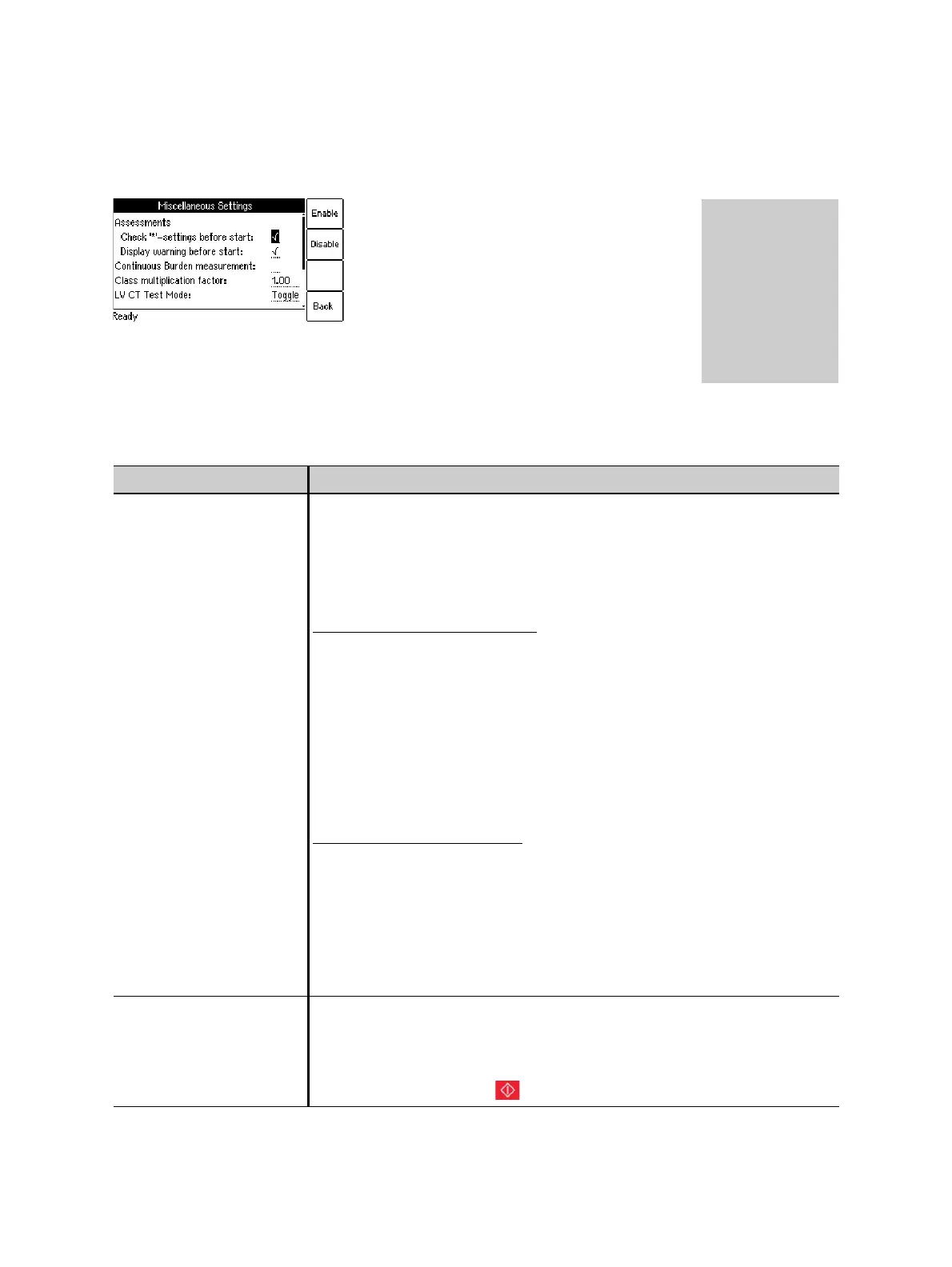

Figure 6-10: Miscellaneous Settings page
The following values can be defined in the Miscellaneous Settings page. These
settings are only relevant for the Advanced CT Test mode.
Table 6-2: Miscellaneous Settings options
Option Description
Assessments
Check "*" settings
before start
Display warning
before start
Depending on the selected standard and CT type, some parameters and
data (for example, the nominal burden) are required to obtain reliable
assessment of the CT. If the user does not specify these data prior to the
test, the automatic assessment function of CT Analyzer possibly performs
the assessment based on the actual values determined for the CT during
the test and not based on the CT’s nominal data stated on the name plate.
"Check "*" settings before start"
If this option is enabled, CT Analyzer checks whether the user has
entered all necessary values and data relevant for an automatic
assessment prior to the test start. The respective parameters are then
marked by a star ("*") in the CT-Object card. If the user did not enter data
for one or more of these mandatory parameters, no automatic
assessment is performed and CT Analyzer displays an "Assessment not
available" message after the test is finished.
This option can be used to avoid an automatic assessment if the user did
not enter all required parameters and CT data prior to the test.
"Display warning before start"
This option is only relevant if the "Check "*" settings before start" option is
enabled. It is enabled automatically when enabling the "Check "*" settings
before start" option but can be disabled manually.
Enabling the "Display warning before start" option displays a
corresponding warning message prior to the test start if the user did not
enter data for one or more of the mandatory parameters that are required
for assessment.
Continuous burden
measurement
CT Analyzer normally stops the burden test automatically as soon as it
obtains stable measurement values for the connected burden.
If this option is enabled, the burden measurement is not stopped
automatically but instead performed continuously until the user stops it
manually by pressing the key.
Press the Main soft key in
any test card
Main Menu:
- Settings
Select soft key
Setting Menu:
- Misc. Settings
Select soft key
-> Miscellaneous
Settings page
How to get there:
To Next Page
