To open these settings pages, position the cursor on the "Location" or the "Object" field and then press
the Details soft key or the key.
7.2.3 Parameters and settings used
The fields described in this section are used by the test process.

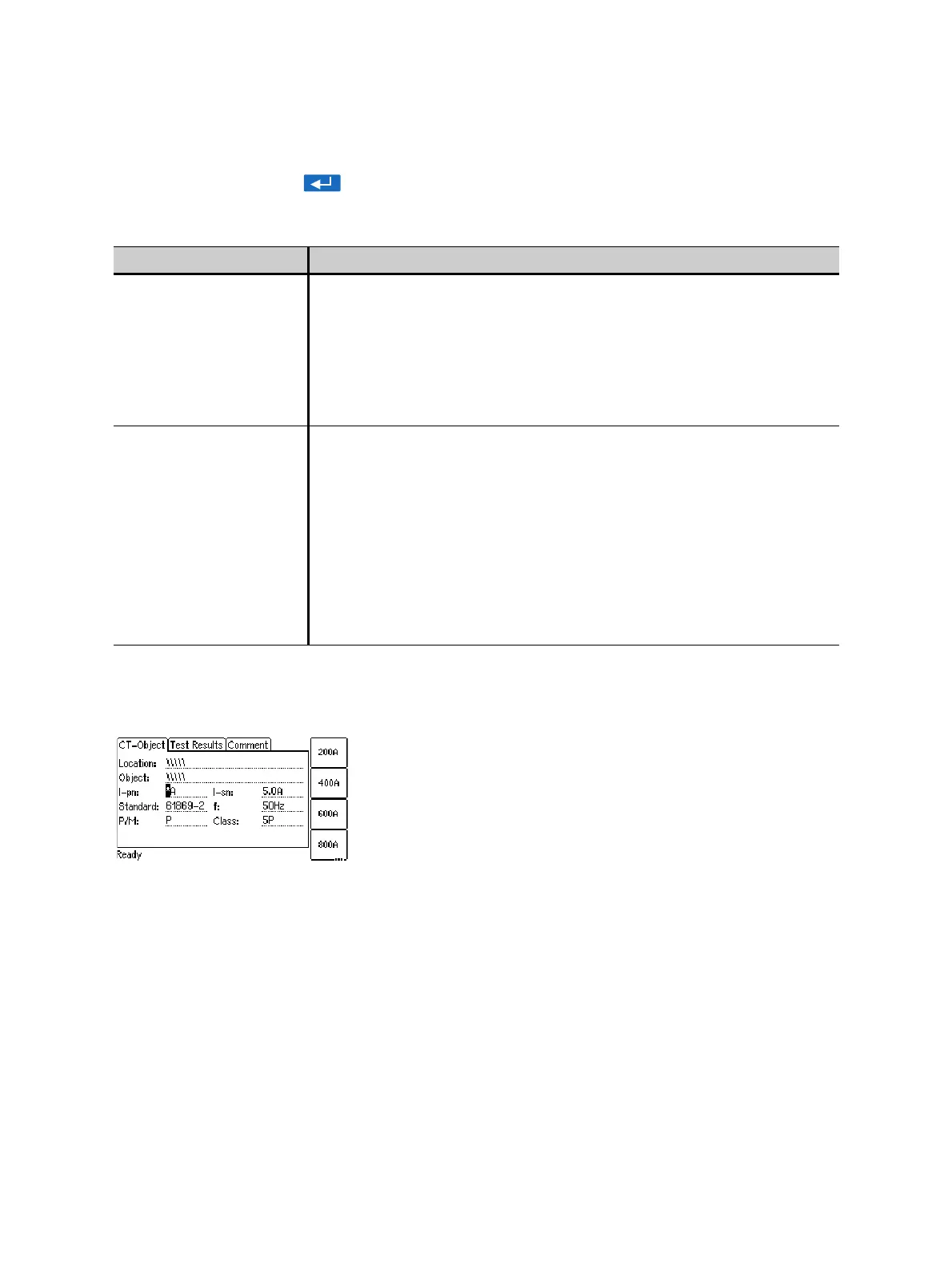

Figure 7-3: Editing the CT-Object card
Note: Parameters marked by a star "*" in the CT Analyzer user interface are mandatory parameters.
Test execution is not possible if no data are specified for such parameters. All other parameters can be
assigned with default values defined in the default test settings and have to be adapted accordingly.
Table 7-3: Location and Object settings page
Page Description
Location settings page The Location settings page provides the following text fields. Each field
can contain a maximum of 40 numbers or letters.
Company, Country, Station, Feeder:
Information where the CT is installed.
Phase: Phase to which the CT is connected.
IEC-ID: IEC-ID of the CT or freely definable information.
Object settings page The Object settings page provides the following text fields. Each field
can contain a maximum of 40 numbers or letters.
Manufact.: Manufacturer of the CT under test.
Type: Type number or description of the CT under test.
Serial No.: Serial number of the CT under test.
Core: Number of the tested core.
Tap: Description of the tap (e.g. 1S1-1S3, X1-X4, ...).
Optional 1: Optional field for free use.
