5.2.4 After the test is finished
After the test is finished, the CT-Object card displays the CT data determined during the test (refer to
Figure 5-10).

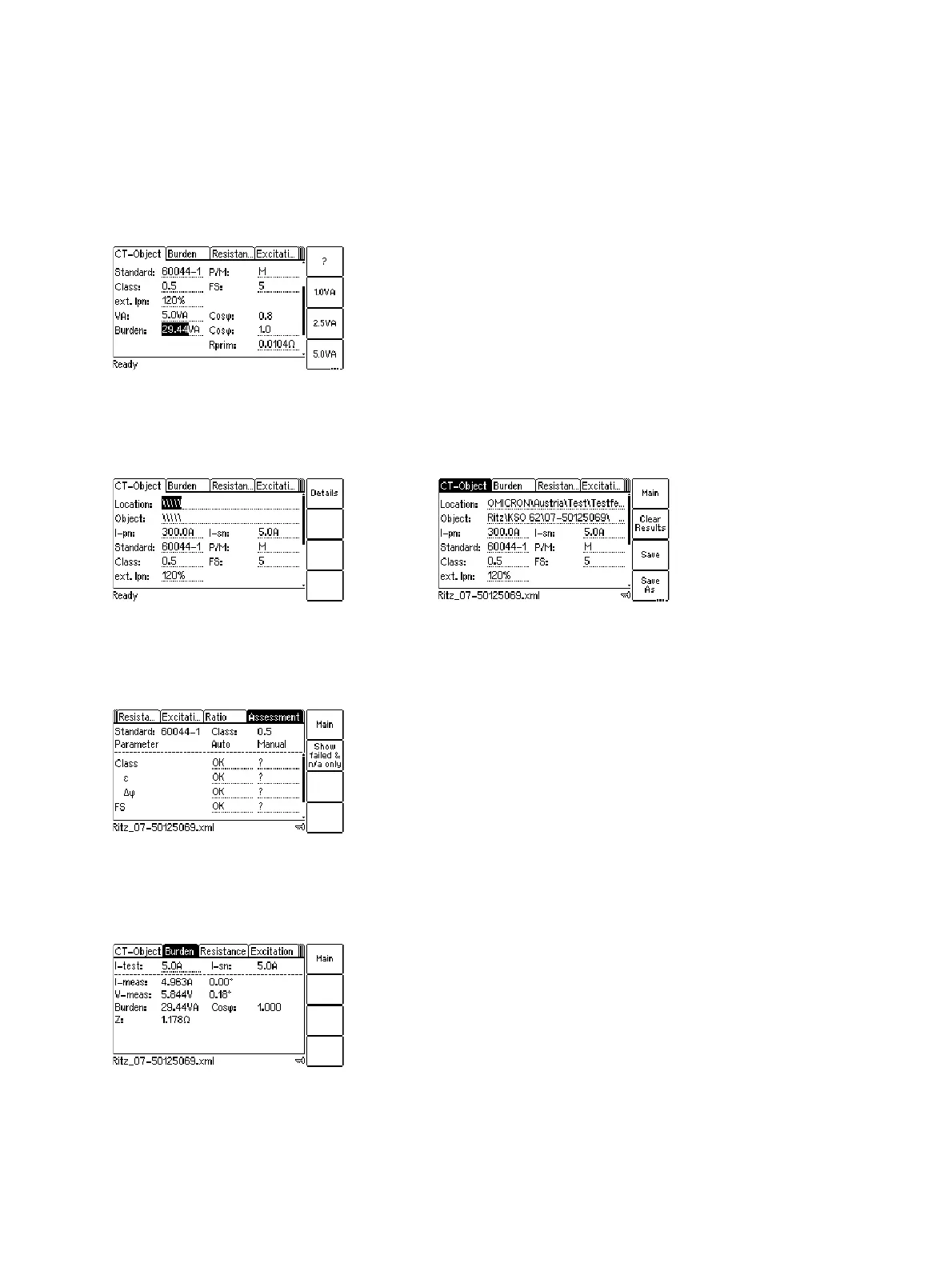

Figure 5-10: CT-Object card after the test is finished
Now, you can enter the "Location" and "Object" details and save the test (use the cursor keys to scroll
within the card and select edit fields).
Figure 5-11: CT-Object card after the test, ready to enter location details (left) and after saving the test
(right)
The assessment of the individual parameters can be viewed on the Assessment card (Figure 5-12).
Figure 5-12: Assessment card after the test is finished
If desired, you can view the individual measurement results acquired during the test by viewing the
Burden, Resistance, Excitation and Ratio cards, as shown in the following figures 5-13 to 5-16.
Figure 5-13: Burden card with measurement results after the test is finished
