Omron CP1E Series User Manual

5-25
5 Installation and Wiring
CP1E CPU Unit Hardware User’s Manual(W479)
5-3 Wiring
5
5-3-5 Relay Output Noise Reduction Methods
z Conditions for Meeting EMC Directives when Using CP-series Relay
Expansion I/O Units
EN61131-2 immunity testing conditions when using the CP1W-40EDR, CP1W-32ER, or CP1W-
16ER with a CP1W-CN811 I/O Connecting Cable are given below.

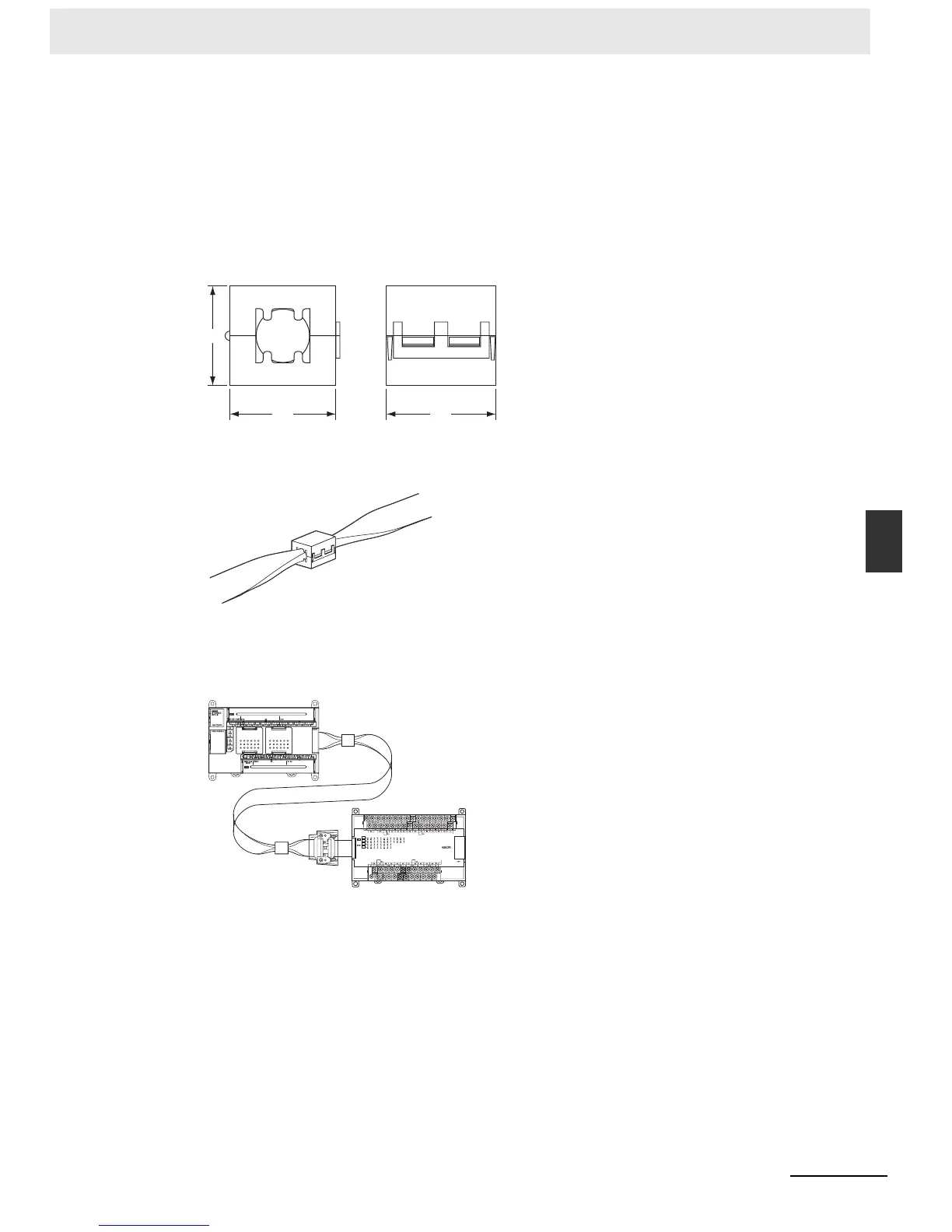

• Recommended Ferrite Core
Ferrite Core (Data Line Filter): 0443-164151 manufactured by Nisshin Electric
Minimum impedance: 90 Ω at 25 MHz, 160 Ω at 100 MHz
• Recommended Connection Method
(1) Cable Connection Method
(2) Connection Method
As shown below, connect a ferrite core to each end of the CP1W-CN811 I/O Connecting Cable.
30
32 33

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
