Omron CP1E Series User Manual

5-15
5 Installation and Wiring
CP1E CPU Unit Hardware User’s Manual(W479)

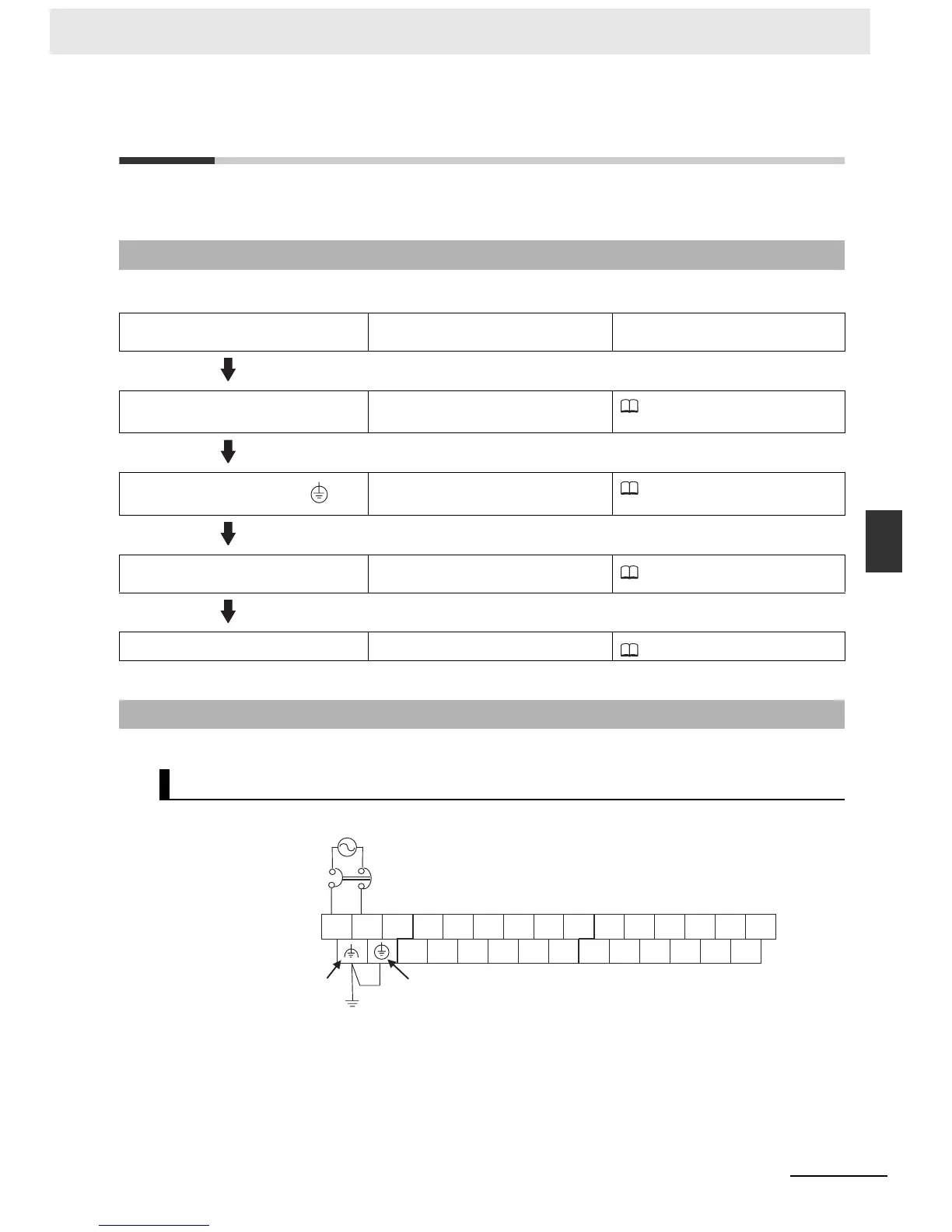

5-3 Wiring
5
5-3-1 Wiring Procedure
5-3 Wiring
This section describes wiring methods for the CPU Unit.
Make sure that the power supply is OFF before beginning wiring.
• Wire a separate circuit for the power supply circuit so that there is no voltage drop from the inrush
current or startup current that flows when other equipment is turned ON.
• When several CP1E PLCs are being used, it is recommended to wire the PLCs on separate cir-
cuits to prevent a voltage drop from the inrush current or incorrect operation of the circuit breaker.
5-3-1 Wiring Procedure
1. Prepare the parts required for wiring. Prepare crimp terminals and cables for
wiring.
−
2. Connect the power supply terminals. Connect power supply to power supply
terminals L1 and L2/N.
Refer to
5-3-2 Wiring Power
Supply and Ground Lines.
3. Ground the ground terminal( ).
Ground to 100 Ω or less.
Refer to
5-3-2 Wiring Power
Supply and Ground Lines.
4. Connect the input terminals. Connect sensors and switches to the
terminals.
Refer to
5-3-3 I/O Wiring.
5. Connect the output terminals. Connect loads to the terminals.
Refer to
5-3-3 I/O Wiring.
5-3-2 Wiring Power Supply and Ground Lines
Wiring AC Power Supply and Ground
MCCB
Ground to 100 Ω or less
Upper Terminal Block
S
R
GR: Protective ground terminal
LG: Functional ground terminal
L2/N COM 01 03 09 0105 07 11 03 05 07 09 11L1
00 02 04 06 08 10 00 02 04 06 08 10
100 to 240 VAC, 50/60 Hz

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
