Omron CP1E Series User Manual

2-11
2 Basic System Configuration and Devices
CP1E CPU Unit Hardware User’s Manual(W479)
2-3 Expansion I/O Unit or Expansion Unit
2
2-3-4 Expansion I/O Units and Expansion Units

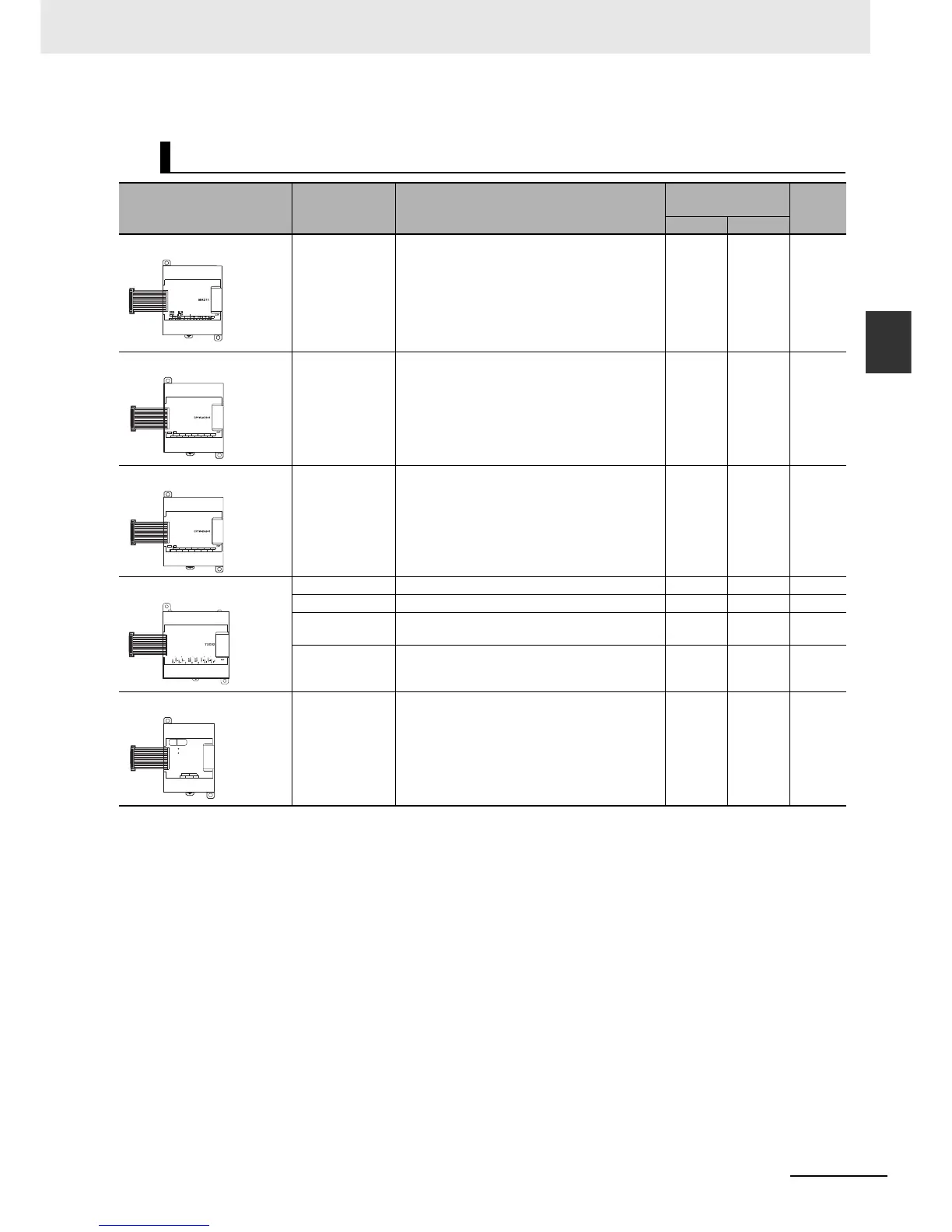

Expansion Units
Name and appearance Model number Specifications
Current
consumption
Weight
5V 24V
Analog I/O Unit CP1W-MAD11 2 analog inputs
0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 0 to
20 mA, and 4 to 20 mA
1 analog output
1 to 5 V, 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4
to 20 mA
Resolution: 1/6,000
0.083A 0.110A 250g
Analog Input Unit CP1W-AD041 4 analog inputs
0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 0 to
20 mA,
4 to 20 mA
Resolution: 1/6,000
0.100A 0.090A 200g
Analog Output Unit CP1W-DA041 4 analog outputs
1 to 5 V, 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4
to 20 mA
Resolution: 1/6,000
0.080A 0.124A 200g
Temperature Sensor Units CP1W-TS001 Thermocouple inputs K or J, 2 inputs 0.040A 0.059A 250g
CP1W-TS002 Thermocouple inputs K or J, 4 inputs 0.040A 0.059A 250g
CP1W-TS101 Platinum resistance thermometer inputs
Pt100 or JPt100, 2 inputs
0.054A 0.073A 250g
CP1W-TS102 Platinum resistance thermometer inputs
Pt100 or JPt100, 4 inputs
0.054A 0.073A 250g
CompoBus/S I/O Link Unit CP1W-SRT21 Can perform communications as a Compo-
Bus/S slave via 8 inputs and 8 outputs.
0.029A − 200g
NC
NC
CH
I IN1 I IN3
I IN2
VIN1
VIN2
VIN3COM1
COM2
I IN4
VIN4
COM4
NC
AG
COM3
IN
CH
I OUT1 I OUT3
I OUT2
VOUT1
VOUT2
VOUT3
COM1
COM2
I OUT4
VOUT4
COM4
NC
AG
COM3
OUT
BD L NC(BS-) NC
BD H NC(BS+)
S
COMM
ERR
No.
SRT21
EXP

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
