Omron CP1E Series User Manual

3-25
3 Part Names and Functions
CP1E CPU Unit Hardware User’s Manual(W479)
3-2 Expansion I/O Units
3
3-2-4 I/O Specifications for Expansion I/O Units

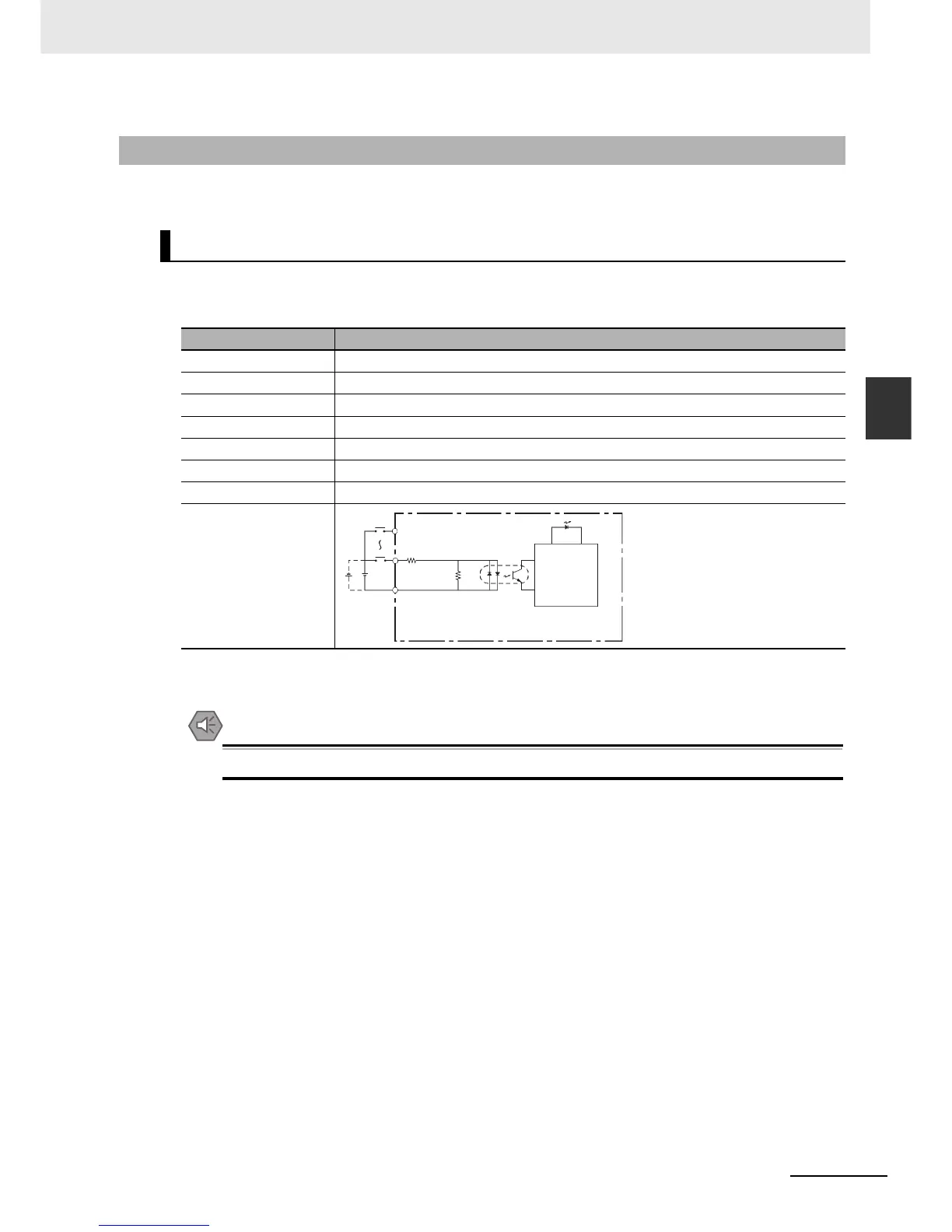

This section describes the I/O specifications common to all Expansion I/O Units.
z Input Specifications
(CP1W-8ED/20EDR1/20EDT/20EDT1/40EDR/40EDT/40EDT1)
* The response time is the delay caused by hardware. The delay set in the PLC Setup (0 to 32 ms, default: 8 ms)
must be added to this value. For the CP1W-40EDR/EDT/EDT1, a fixed value of 16 ms must be added.
Precautions for Safe Use
Do not apply voltage in excess of the rated voltage to the input terminal.
3-2-4 I/O Specifications for Expansion I/O Units
I/O Specifications
Item Specification
Input voltage 24 VDC, +10%, -15%
Input impedance 4.7 kΩ
Input current 5 mA typical
ON voltage 14.4 VDC min.
OFF voltage 5.0 VDC max.
ON response time 1 ms max.*
OFF response time 1 ms max.*
Circuit configuration
IN
IN
COM
4.7kΩ
750Ω
Output indicator
Internal
circuits

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
