1-5
1 Overview and Specifications
CP1E CPU Unit Hardware User’s Manual(W479)
1-1 CP1E Overview
1
1-1-2 Features
An interrupt task can be started when a built-in input turns ON or turns OFF .
Up to six interrupt inputs can be used.
Note The user setting in the PLC Setup determines if each input is a quick-response input, normal input, interrupt
input, or high-speed counter input.
A high-speed counter input can be used by connecting a rotary encoder to a built-in input. A CP1E CPU
Unit is equipped with more than one high-speed counter input, making it possible to control devices for
multiple axes with a single PLC.
Note The user setting in the PLC Setup determines if each input is a quick-response input, normal input, interrupt
input, or high-speed counter input.
• High-speed counters can be used for high-speed processing, using either target value comparison or
range comparison with the counter’s PV to create interrupts.
An interrupt task can be started when the count reaches a specified value or falls within a specified
range.
• High-speed counter input frequency (speed) can be measured.
The input pulse frequency can be measured using the PRV instruction (counter 0 only).

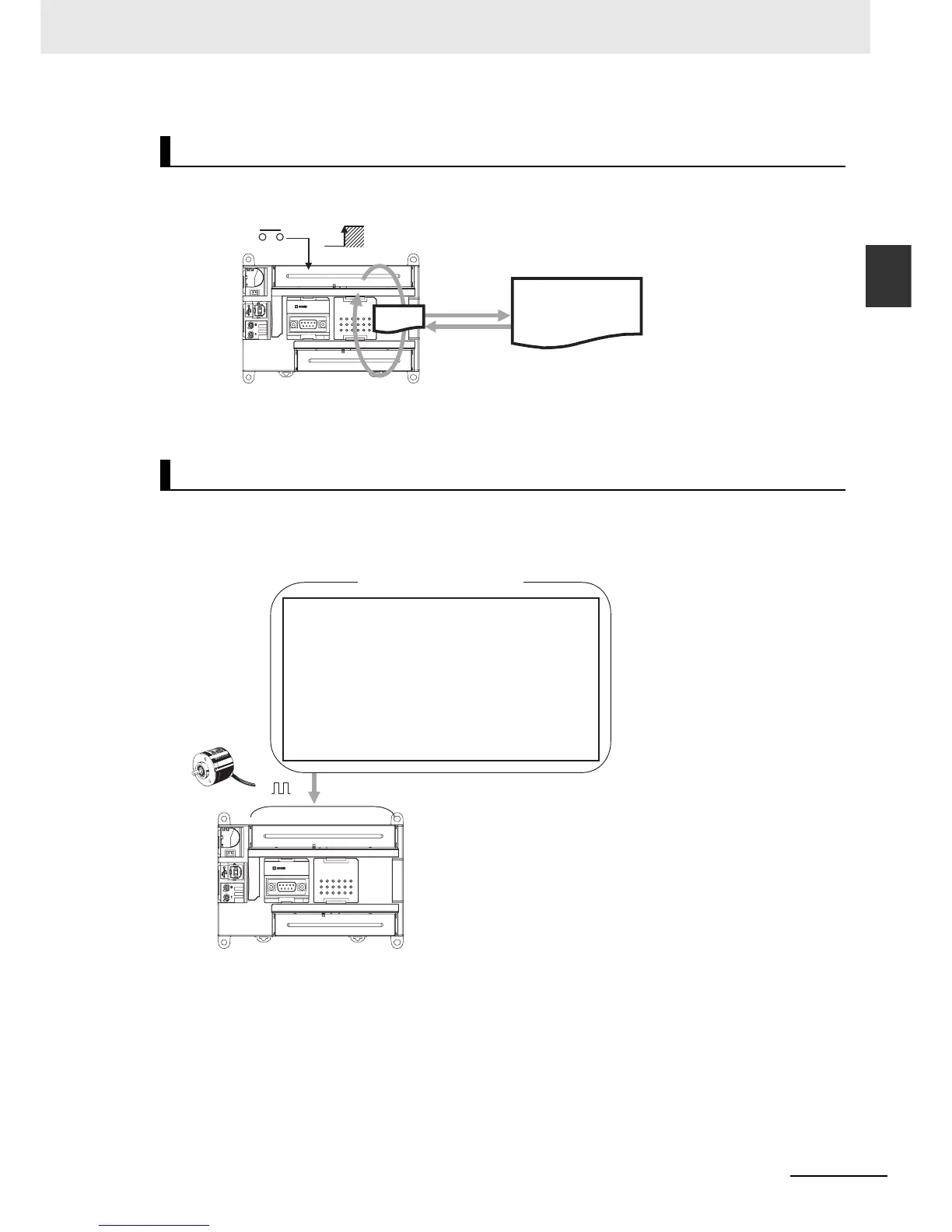

Input Interrupts
Complete High-speed Counter Functionality
END
Interrupt occurs
Built-in input
Interrupt input
Interrupt task
Ladder program
Encoder
Built-in Inputs
(Functions can be assigned.)
High-speed Counter Inputs
E-type CPU Units:
Increment pulse inputs: 10kHz × 6 counters
Up/down pulse inputs: 10kHz × 2 counters
Pulse + direction inputs: 10kHz × 2 counters
Differential phase inputs (4×): 5kHz × 2 counters
N-type CPU Units:
Increment pulse inputs: 100kHz × 2 counters, 10kHz × 4 counters
Up/down pulse inputs: 100kHz × 1 counter, 10kHz × 1 counter
Pulse + direction inputs: 100kHz × 2 counters
Differential phase inputs (4×): 50kHz × 1 counter, 5kHz × 1 counter
To Next Page
