1 Overview and Specifications
1-4
CP1E CPU Unit Hardware User’s Manual(W479)
A total of up to three of the following Expansion I/O Units can be connected to a CPU Unit with 30 or 40
I/O points. (The total of three Units must also include Expansion Units.)
24-input/16-output Unit, 32-output Unit, 12-input/8-output Unit, 16-output Unit, 8-input Unit, or 8-out-
put Unit
With a CPU Unit with 30 or 40 I/O points, a total of up to three of the following Expansion Units can be
connected. (The total of three Units must also include Expansion I/O Units.)
Analog I/O Unit, Analog Input Unit, Analog Output Unit, Temperature Sensor Units, CompoBus/S I/O
Link Unit
By setting a built-in input to quick-response input operation, inputs with signal widths as small as 50 µs
can be read with certainty regardless of the cycle time.
Up to six quick-response inputs can be used.
Note The user setting in the PLC Setup determines if each input is a quick-response input, normal input, interrupt
input, or high-speed counter input.
With CPU Units with 30 or 40 I/O Points, Add I/O by Connecting
Expansion I/O Units
With CPU Units with 30 or 40 I/O Points, Add Analog I/O or
Temperature Inputs by Connecting Expansion Units

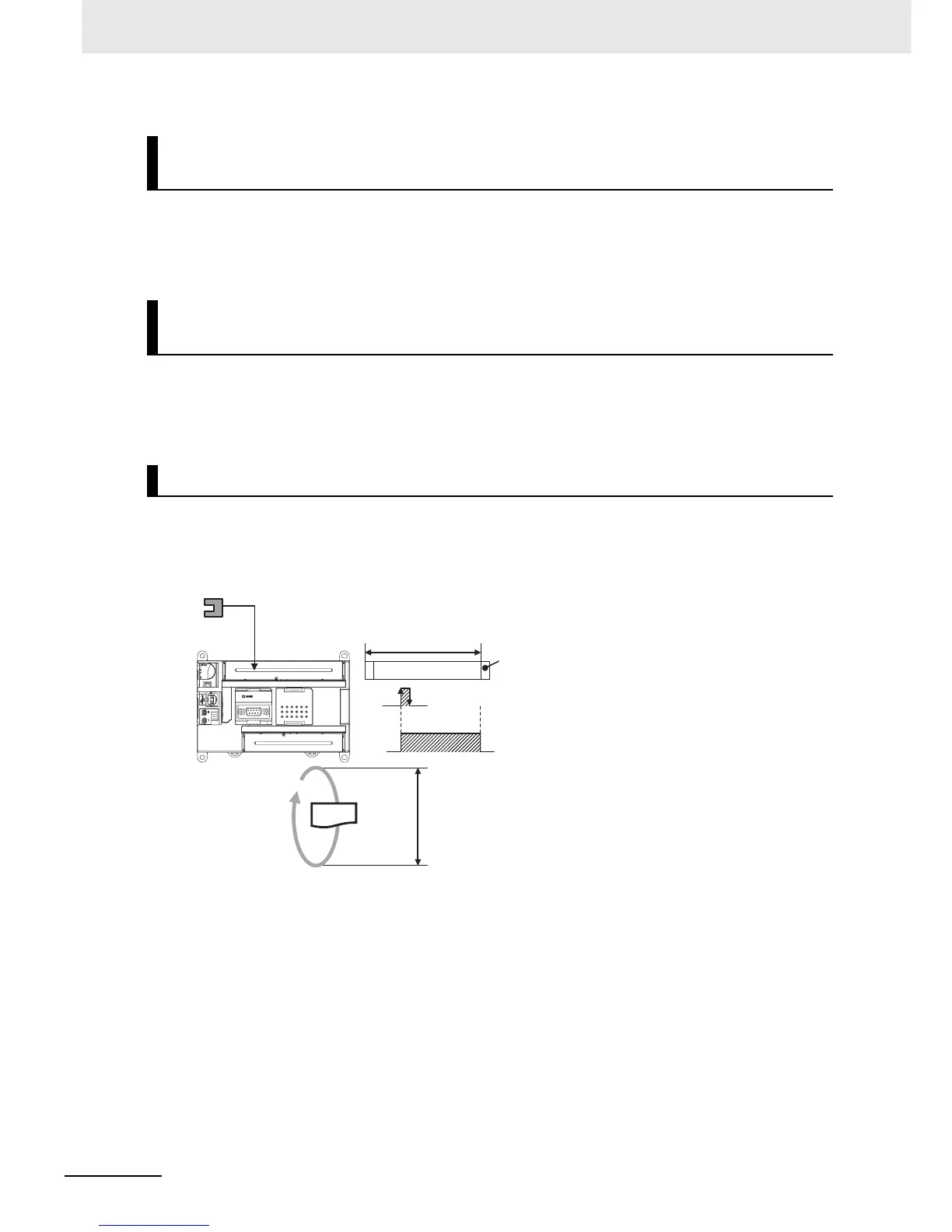

Quick-response Inputs
Can read ON signals shorter than the cycle time.
Photomicrosensor or other device
Quick-response input
Built-in input
Cycle time
I/O refresh
Cycle time
Can read ON signals
shorter than this time.

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
