Omron CP1E Series User Manual

2 Basic System Configuration and Devices
2-4
CP1E CPU Unit Hardware User’s Manual(W479)

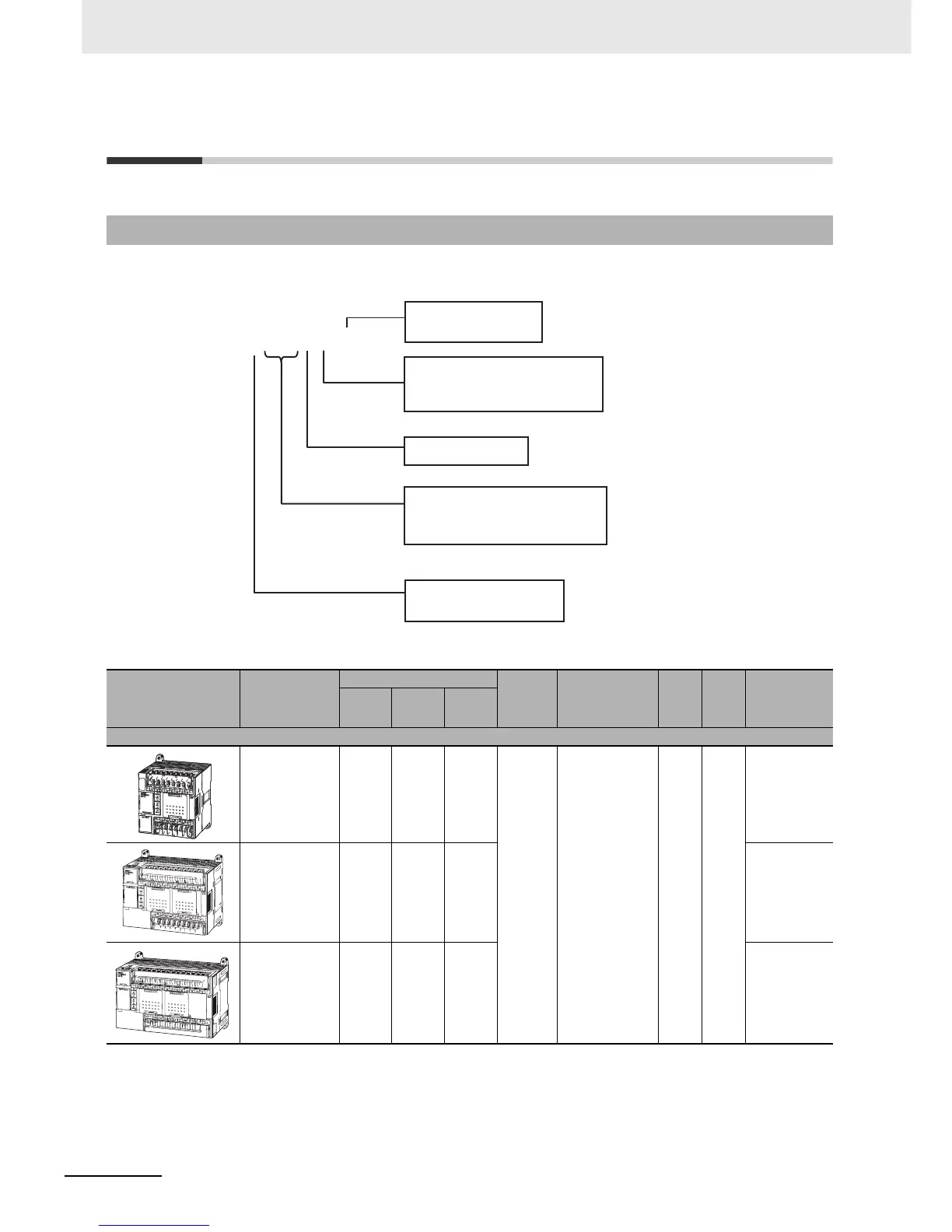

2-2 CPU Units
This section describes the models of CP1E CPU Units.
The CP1E CPU Unit model numbers are configured as shown below.
The following is a list of available CP1E CPU Unit models.
2-2-1 CPU Unit Models
Name and appearance Model number
Number of built-in I/O points Power
supply
specifica-
tions
Output type
Program
capacity
DM
Area
capacity
Weight
Total
Number
of inputs
Number
of outputs
E-type CPU Units
CP1E-E20DR-A 20 12 8 AC power
supply
100 to 240
VAC
Relays 2K
steps
2K
words
Less than 360g
CP1E-E30DR-A 30 18 12 Less than 540g
CP1E-E40DR-A 40 24 16 Less than 650g
CP1E-D-A
Power supply
A: AC power supply
D: DC power supply
Output type
R: Relays outputs
T: Transistor outputs, sinking
T1: Transistor outputs, sourcing
Input type
D: DC inputs
I/O capacity
30: 30 I/O points (18 inputs, 12 outputs)
Unit type
E: Basic model
N: Application model
20: 20 I/O points (12 inputs, 8 outputs)
40: 40 I/O points (24 inputs, 16 outputs)

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
