Omron CP1E Series User Manual

2-5
2 Basic System Configuration and Devices
CP1E CPU Unit Hardware User’s Manual(W479)
2-2 CPU Units
2

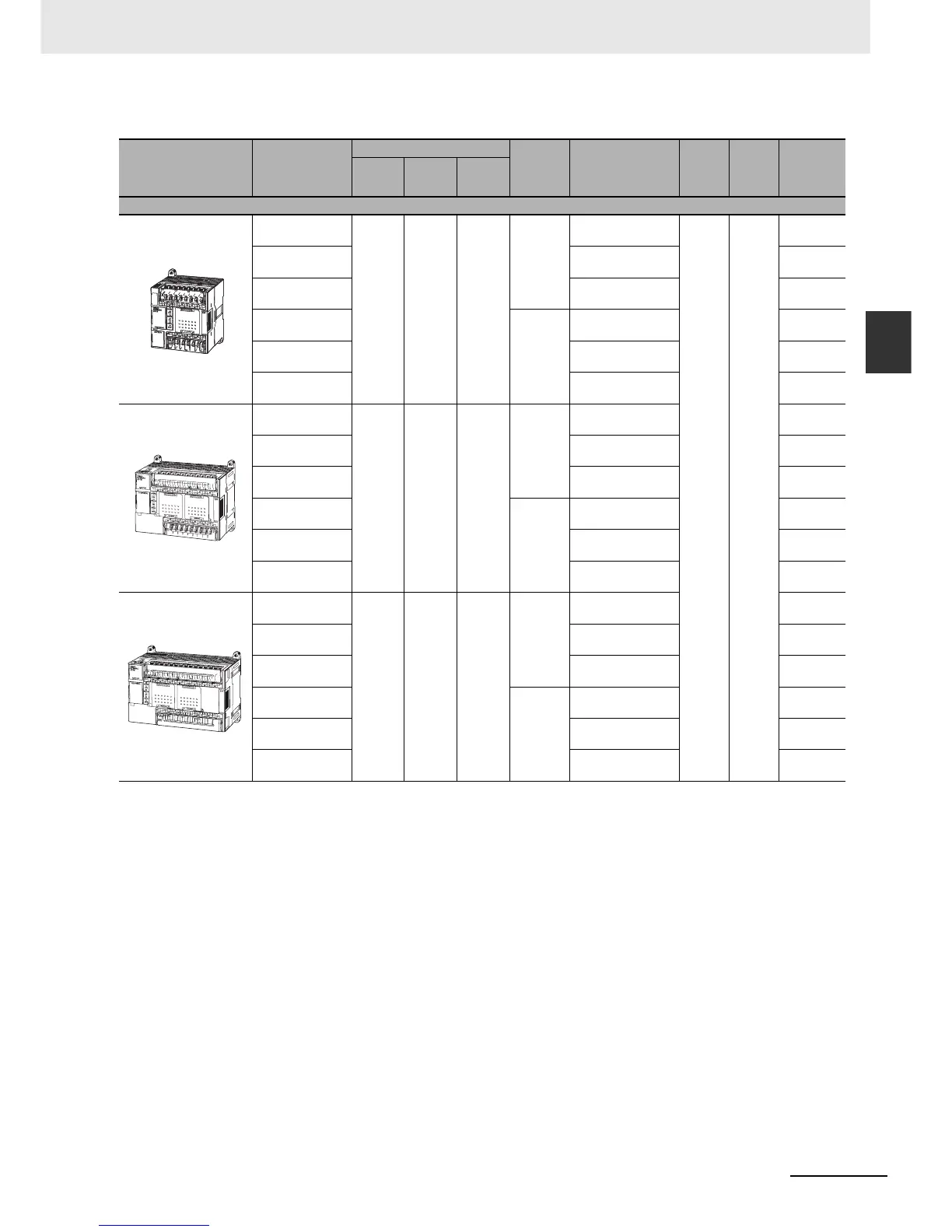

2-2-1 CPU Unit Models
Name and appearance Model number
Number of built-in I/O points Power
supply
specifica-
tions
Output type
Program
capacity
DM
Area
capacity
Weight
Total
Number
of inputs
Number
of outputs
N-type CPU Units
CP1E-N20DR-A 20 12 8 AC power
supply
100 to 240
VAC
Relays 8K
steps
8K
words
Less than
370g
CP1E-N20DT-A Sinking transistors Less than
340g
CP1E-N20DT1-A Sourcing transistors Less than
340g
CP1E-N20DR-D
DC power
supply 24V
Relays Less than
340g
CP1E-N20DT-D Sinking transistors Less than
310g
CP1E-N20DT1-D Sourcing transistors Less than
310g
CP1E-N30DR-A 30 18 12 AC power
supply
100 to 240
VAC
Relays Less than
600g
CP1E-N30DT-A Sinking transistors Less than
570g
CP1E-N30DT1-A Sourcing transistors Less than
570g
CP1E-N30DR-D
DC power
supply 24V
Relays Less than
515g
CP1E-N30DT-D Sinking transistors Less than
485g
CP1E-N30DT-D Sourcing transistors Less than
485g
CP1E-N40DR-A 40 24 16 AC power
supply
100 to 240
VAC
Relays Less than
660g
CP1E-N40DT-A Sinking transistors Less than
630g
CP1E-N40DT1-A Sourcing transistors Less than
630g
CP1E-N40DR-D
DC power
supply 24V
Relays Less than
575g
CP1E-N40DT-D Sinking transistors Less than
545g
CP1E-N40DT1-D Sourcing transistors Less than
545g

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
