Omron CP1E Series User Manual

4 Programming Device
4-2
CP1E CPU Unit Hardware User’s Manual(W479)
4-1 CX-Programmer for CP1E
A programming device is a software application for initializing, programming, monitoring, and debug-
ging PLCs. This section describes the programming device used by CP1E.

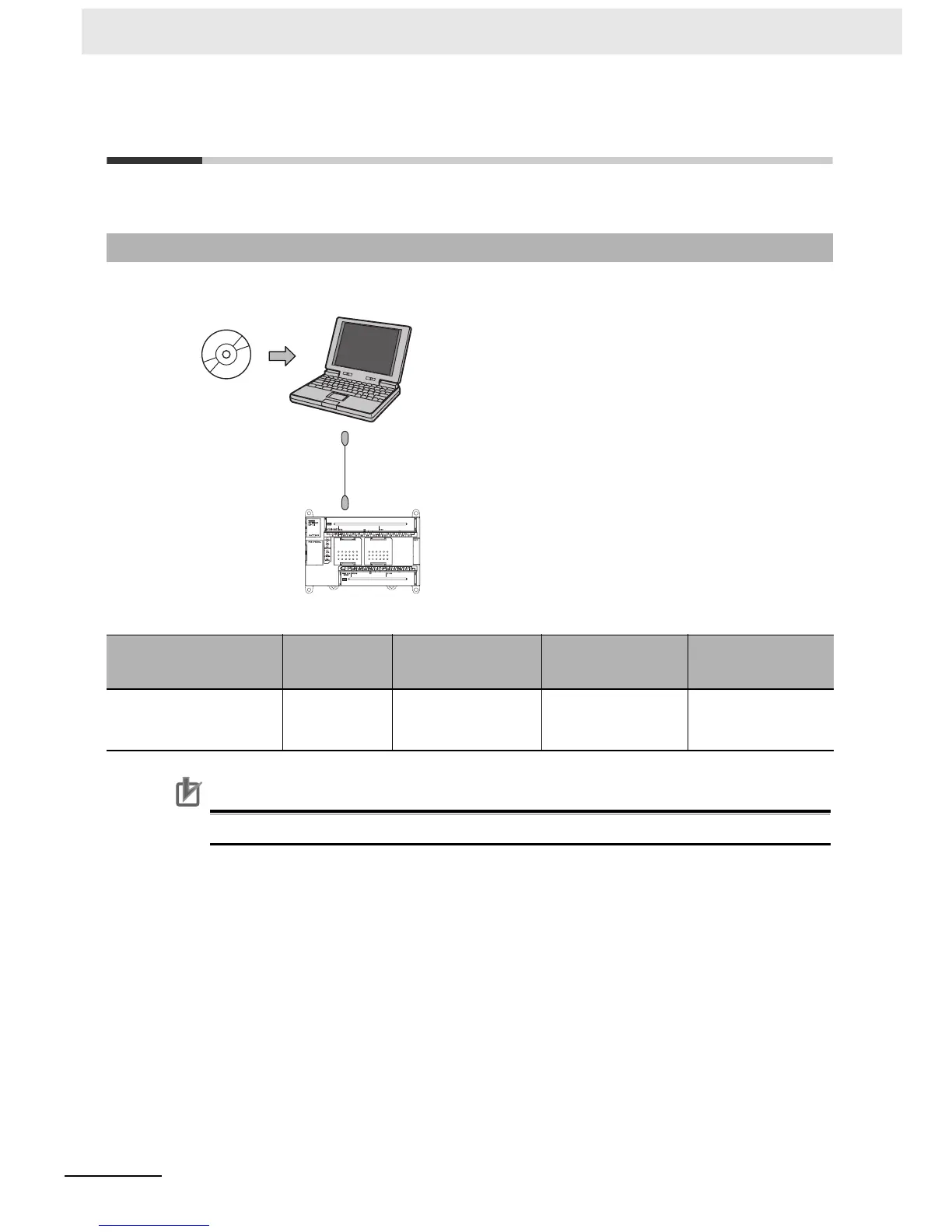

The CX-Programmer for CP1E shown below is used to program and monitor the CP1E Unit.
Precautions for Correct UsePrecautions for Correct Use
A Programming Console cannot be used for the CP1E. Use the CX-Programmer for CP1E.
4-1-1 Applicable Programming Devices
Product name
(Bottom row: media)
Model number
Supporting versions
of CX-Programmer for
CP1E
CP1E unit version Description
CX-Programmer for CP1E
• Japanese version ()
• English version ()
WS02-CXPC3 Version 1.00 or higher Unit version 1.0 (first
version)
Select CP1E as the
PLC model.
CP1E CPU Unit
USB
CX-Programmer
for CP1E
IBM PC/AT or
equivalent

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
