Appendices
A-4
CP1E CPU Unit Hardware User’s Manual(W479)
Note It is not possible to use a CP1W-ME05M Memory Cassette, CP1W-DAM01 LCD Option Board, or CP1W-CIF41 Ether-
net Option Board with a CP1E CPU Unit.

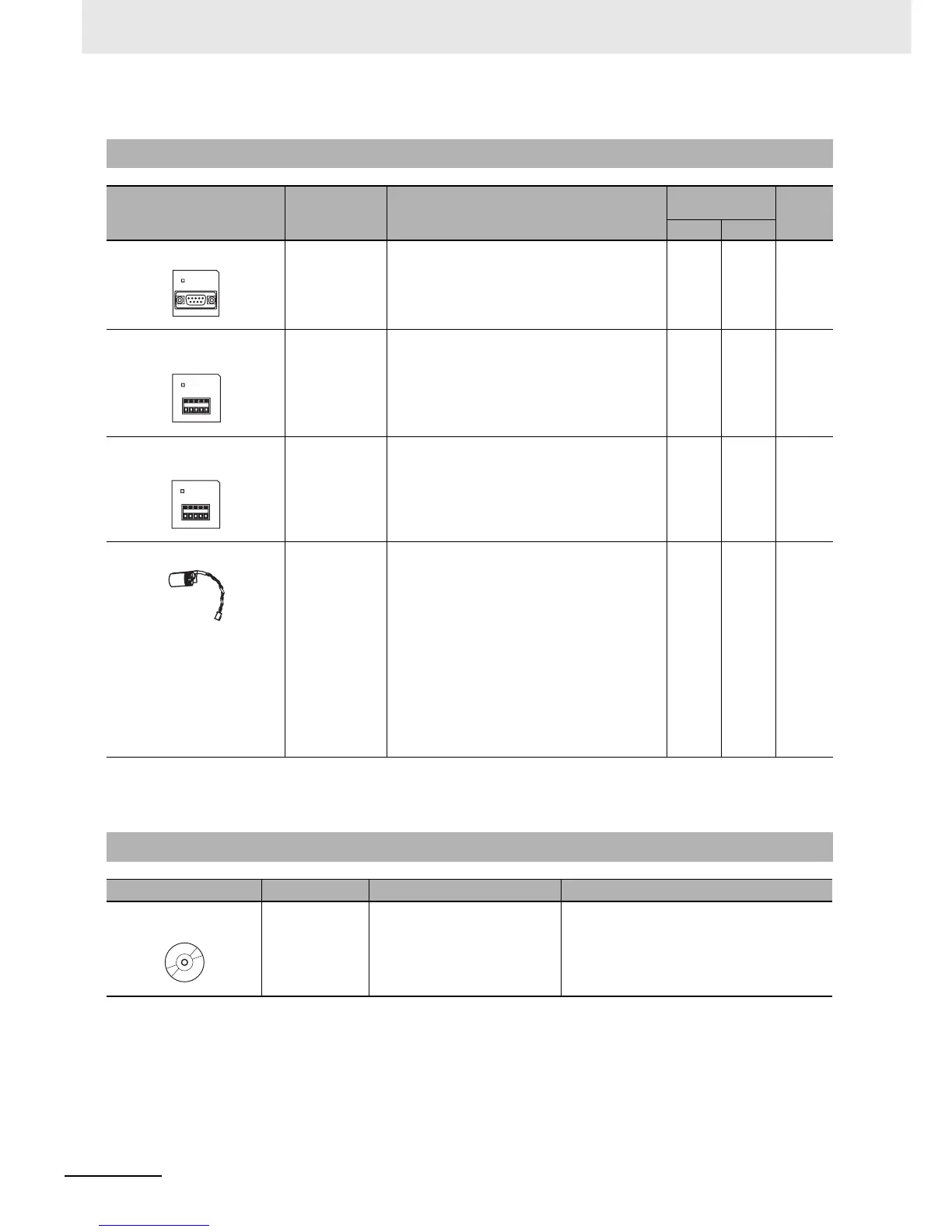

A-1-2 Optional Products
Name and appearance Model number Application
Current
consumption
Weight
DC5V DC24V
RS-232C Option Board CP1W-CIF01 This Option Board can be mounted in the
option slot of a CP1E N-type CPU Unit with 30
or 40 I/O points and used as an RS-232C
port.
Includ-
ing in
CPU
− Includ-
ing in
CPU
RS-422A/485 Option Board,
Non-isolated
CP1W-CIF11 This Option Board can be mounted in the
option slot of a CP1E N-type CPU Unit with 30
or 40 I/O points and used as an RS-422A/485
port.
The maximum transmission distance is 50 m.
Includ-
ing in
CPU
− Includ-
ing in
CPU
RS-422A/485 Option Board,
Isolated
CP1W-CIF12 This Option Board can be mounted in the
option slot of a CP1E N-type CPU Unit with 30
or 40 I/O points and used as an RS-422A/485
port.
The maximum transmission distance is 500 m.
0.075A − 30g
Battery CP1W-BAT01 The Battery can be mounted to a CP1E N-
type CPU Unit.
Mount a Battery to an N-type CPU Unit if data
in the following areas need to be retained after
a power interruption.
• DM Area (D) (excluding words backed up to
the EEPROM using the DM backup function)
• Holding Area (H)
• Counter Present Values and Completion
Flags (C)
• Auxiliary Area related to clock function (A)
The Battery cannot be mounted to the CP1E
E-type CPU Unit.
−−−
A-1-3 Support Software
Name and appearance Model number Application Remarks
CX-Programmer for
CP1E
WS02-CXPC3 Programming and monitoring
from a computer running Win-
dows
• The CX-Programmer for CP1E supports
the CP1E.
• Use an off-the-shelf USB cable to connect
the computer running the CX-Program-
mer for CP1E to the peripheral USB port
on the CP1E CPU Unit.
COMM
COMM
COMM
