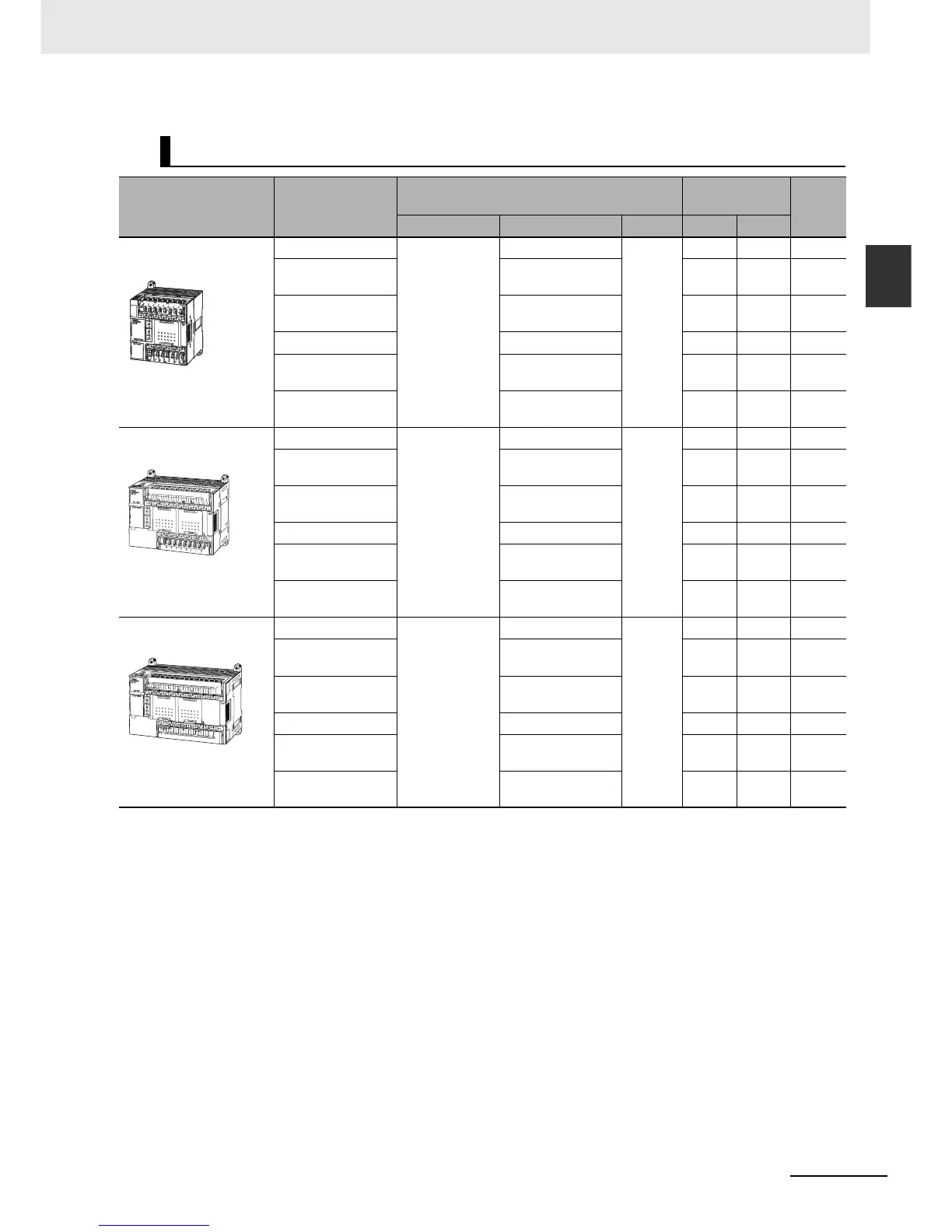

A-1 Models
App
A-1-1 CPU Units
N-type CPU Units
Name and appearance Model number
Specifications
Current
consumption
Weight
Power Outputs Inputs DC5V DC24V
CPU Unit with 20 I/O
Points
CP1E-N20DR-A 100 to 240 VAC 8 relay outputs 12
inputs,
24 VDC
0.18A 0.08A 370g
CP1E-N20DT-A 8 transistor out-
puts, sinking
0.23A 0.02A 340g
CP1E-N20DT1-A 8 transistor out-
puts, sourcing
0.23A 0.02A 340g
CP1E-N20DR-D 8 relay outputs 0.18A 0.08A 340g
CP1E-N20DT-D 8 transistor out-
puts, sinking
0.23A 0.02A 310g
CP1E-N20DT1-D 8 transistor out-
puts, sourcing
0.23A 0.02A 310g
CPU Unit with 30 I/O
Points
CP1E-N30DR-A 100 to 240 VAC 12 relay outputs 18
inputs,
24 VDC
0.21A 0.07A 600g
CP1E-N30DT-A 12 transistor out-
puts, sinking
0.27A 0.02A 570g
CP1E-N30DT1-A 12 transistor out-
puts, sourcing
0.27A 0.02A 570g
CP1E-N30DR-D 12 relay outputs 0.21A 0.07A 515g
CP1E-N30DT-D 12 transistor out-
puts, sinking
0.27A 0.02A 485g
CP1E-N30DT-D 12 transistor out-
puts, sourcing
0.27A 0.02A 485g
CPU Unit with 40 I/O
Points
CP1E-N40DR-A 100 to 240 VAC 16 relay outputs 24
inputs,
24 VDC
0.21A 0.09A 660g
CP1E-N40DT-A 16 transistor out-
puts, sinking
0.31A 0.02A 630g
CP1E-N40DT1-A 16 transistor out-
puts, sourcing
0.31A 0.02A 630g
CP1E-N40DR-D 16 relay outputs 0.21A 0.09A 575g
CP1E-N40DT-D 16 transistor out-
puts, sinking
0.31A 0.02A 545g
CP1E-N40DT1-D 16 transistor out-
puts, sourcing
0.31A 0.02A 545g

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
