6 Troubleshooting
6-12
CP1E CPU Unit Hardware User’s Manual(W479)

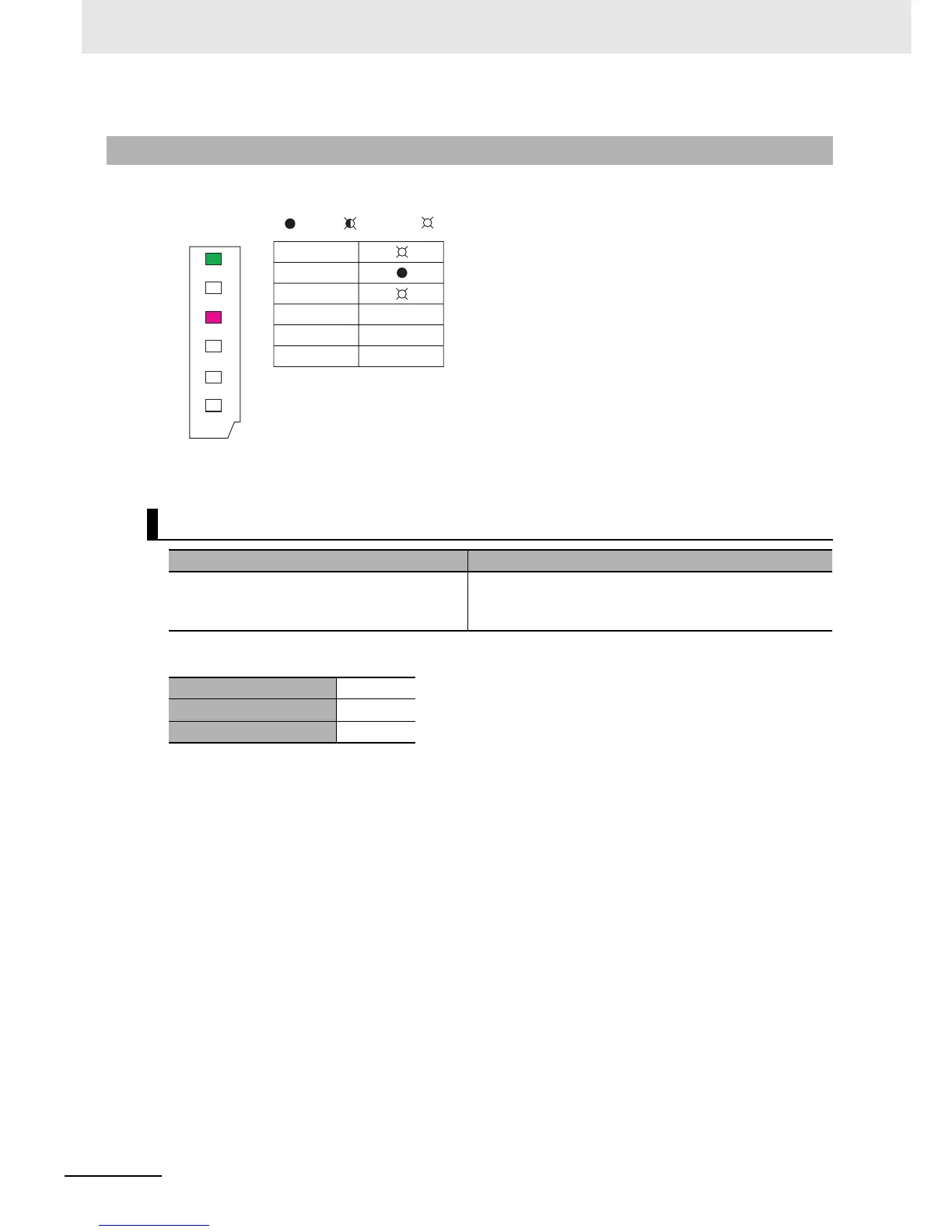

z CPU Unit Indicators
: Not lit : Flashing : Lit
A CPU error or fatal error may have occurred if the ERR/ALM indicator lights during operation (RUN
mode or MONITOR mode), the RUN indicator turns OFF, and operation stops.
z Reference
Note Just as when a CPU error occurs, the RUN indicator will turn OFF and the ERR/ALM indicator will
light when a fatal error occurs. Connecting the CX-Programmer, however, is possible for fatal
errors but not for CPU errors.
If the CX-Programmer cannot be connected (online), a CPU error has probably occurred.
6-1-9 CPU Errors
CPU Unit Errors
Cause Remedy
A WDT (watchdog) error occurred in the CPU
Unit.
(This does not occur in normal use.)
Cycle the power supply.
The Unit may be faulty. Consult your OMRON representative.
Error flag −
Error code (A400) −
Error information −
POWER
RUN
INH
PRPHL
BKUP
ERR/AL
—: Irrelevant
POWER
RUN
ERR/ALM
INH
PRPHL
BKUP
—
—
—

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
