9 Using Expansion Units and Expansion I/O Units
9-2
CP1E CPU Unit Hardware User’s Manual(W479)
9-1 Analog Input Units
Each CP1W-AD041 Analog Input Unit provides four analog inputs.
• The analog input signal ranges are 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to +10 V, 0 to 20 mA, and 4 to
20 mA. The resolution is 1/6,000. The open-circuit detection function is activated in the ranges of 1 to
5 V and 4 to 20 mA.
• The Analog Input Unit uses four input words and two output words.

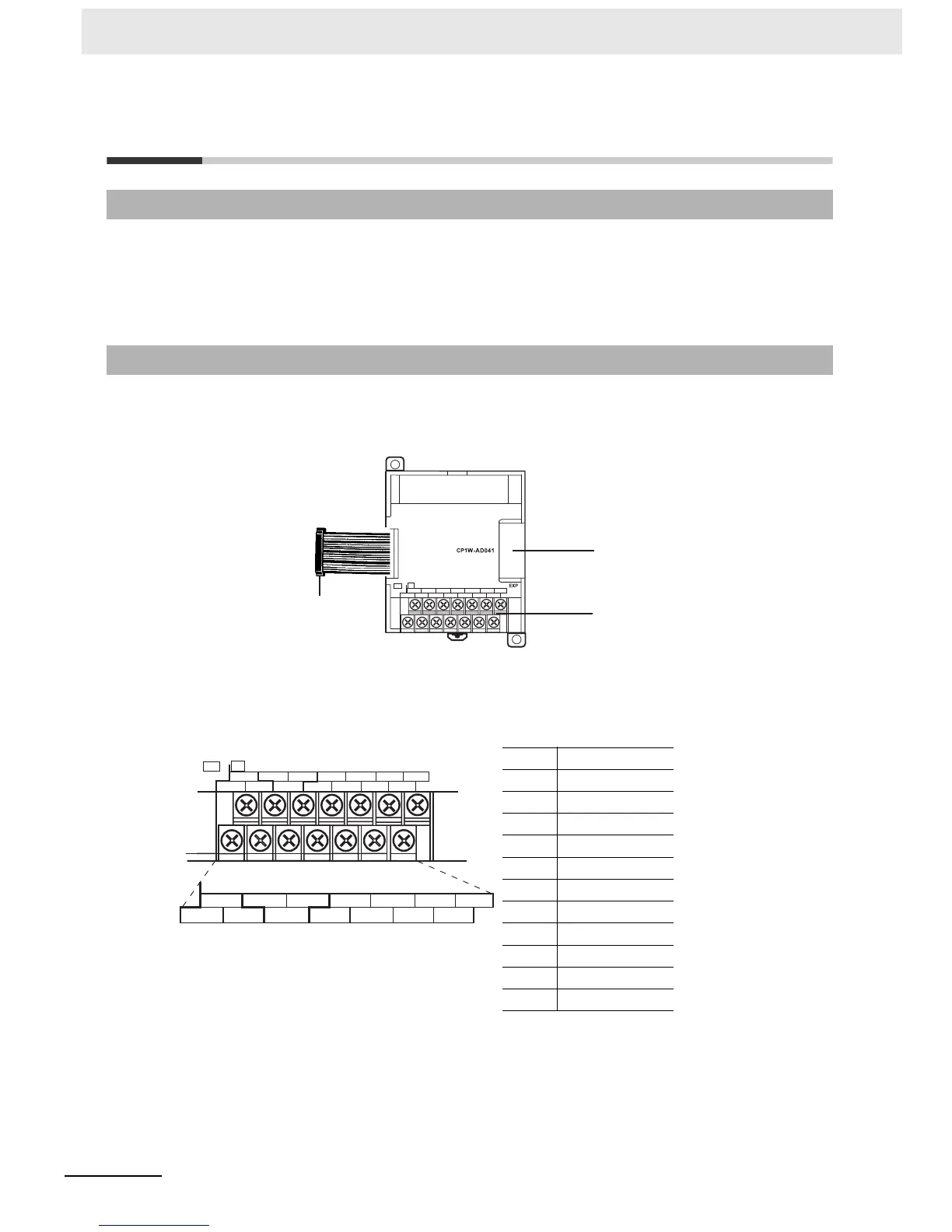

z CP1W-AD041
(1)Analog Input Terminals
Connected to analog output devices.
• Input Terminal Arrangement
Note When using current inputs, voltage input terminals must be short-circuited with current input terminals.
(2)Expansion I/O Connecting Cable
Connected to the CPU Unit or Expansion Unit expansion connector. The cable is attached to the
Analog Input Unit and cannot be removed.
9-1-1 Overview
9-1-2 Part Names and Functions
V IN1 Voltage input 1
I IN1 Current input 1
COM1 Input common 1
V IN2 Voltage input 2
I IN2 Current input 2
COM2 Input common 2
V IN3 Voltage input 3
I IN3 Current input 3
COM3 Input common 3
V IN4 Voltage input 4
I IN4 Current input 4
COM4 Input common 4
CH
I IN1 I IN3
I IN2
VIN1
VIN2
VIN3COM1
COM2
I IN4
VIN4
COM4
NC
AG
COM3
IN
(3) Expansion connector
(2) Expansion I/O
connecting cable
(1) Analog input terminals
CH
I IN1 I IN3
I IN2
VIN1
VIN2
VIN3COM1
COM2
I IN4
VIN4
COM4
NC
AG
COM3
IN
I IN1 I IN3
I IN2
VIN1
VIN2
VIN3COM1
COM2
I IN4
VIN4
COM4
NC
AG
COM3

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
