A-2 Dimensions
App
A-2-4 Expansion Units
Unit: mm
Unit: mm
Unit: mm
A-2-4 Expansion Units

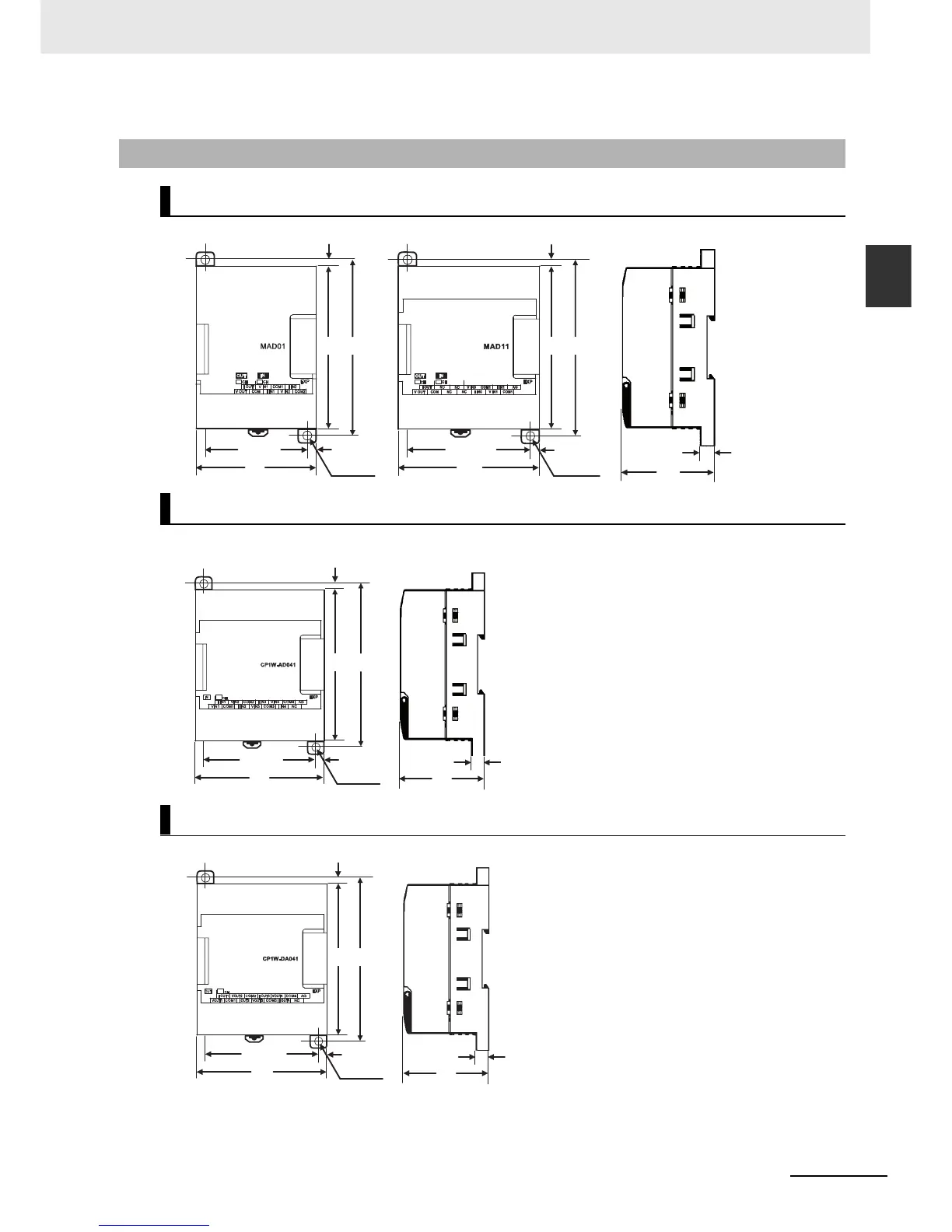

CP1W-MAD Analog I/O Units
CP1W-AD041 Analog Input Unit
CP1W-DA041 Analog Output Unit
50
8
5
2 ‑ φ4.5
90 100±0.290 100±0.2
5
76±0.2
86
2 ‑ φ4.5
5
56±0.2
66
5
50
8
76±0.2
86
2 ‑ φ4.5
5
90 100±0.2
5
5
50
8
2 ‑ φ4.5
76±0.2
86
90 100±0.2
5

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
