1-1 CP1E Overview
The SYSMAC CP1E Programmable Controller is a package-type PLC made by OMRON that is
designed for easy application. The CP1E includes E-type CPU Units (basic models) for standard con-
trol operations using basic, movement, arithmetic, and comparison instructions, and N-type CPU Units
(application models) that supports connections to Programmable Terminals, Inverters, and Servo
Drives.

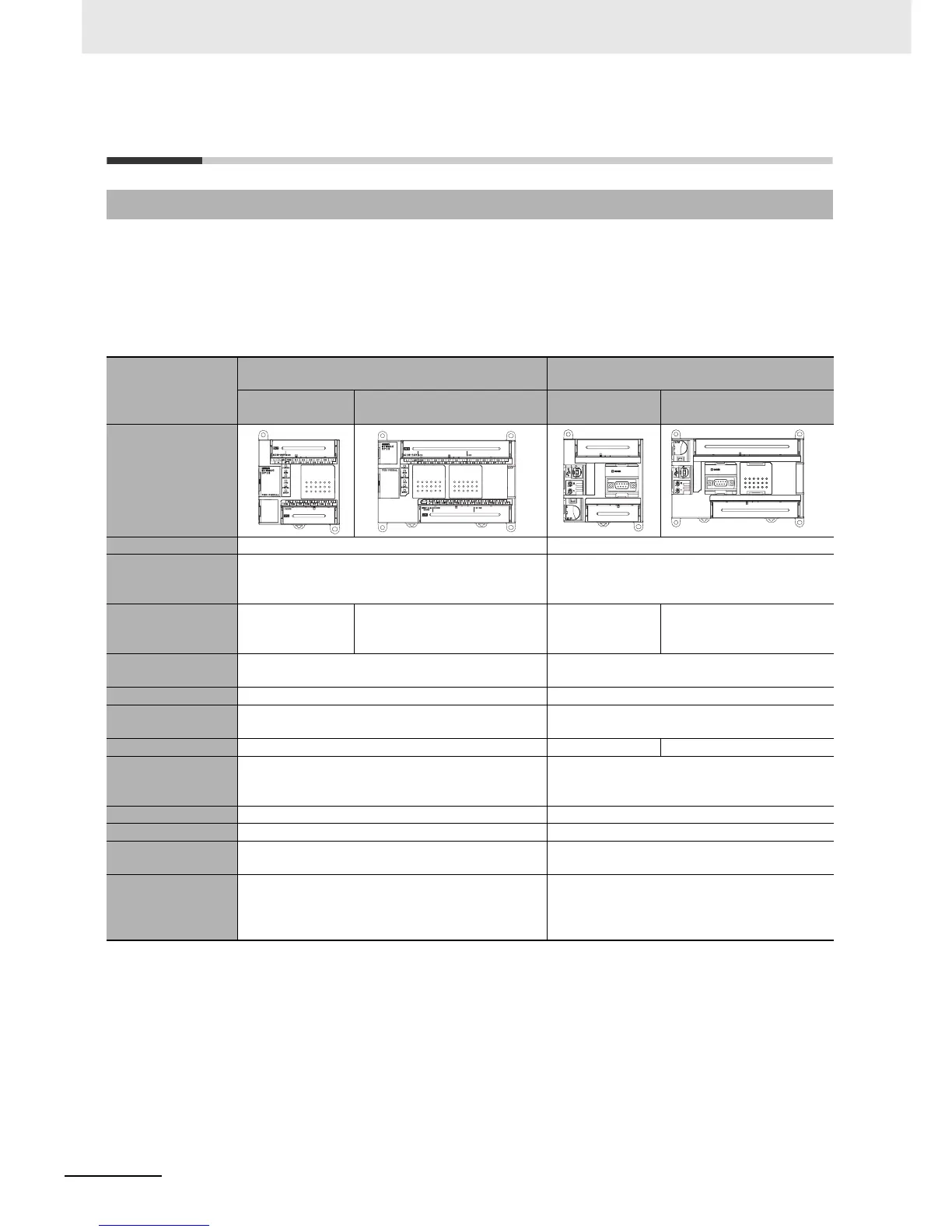

1-1-1 Overview of Features
Basic Models
(E-type CPU Units)
CP1E Application Models
(N-type CPU Units)
CPU with 20 I/O
Points
CPU Unit with 30 or 40 I/O
Points
CPU with 20 I/O
Points
CPU Unit with 30 or 40 I/O
Points
Appearance
Program capacity 2K steps 8K steps
DM Area capacity 2K words
Of these 1.5K words can be written to the built-in
EEPROM.
8K words
Of these 7K words can be written to the built-in
EEPROM.
Mounting Expan-
sion I/O Units and
Expansion Units
Not possible. 3 Units maximum Not possible. 3 Units maximum
Model with transis-
tor outputs
Not available. Available
Pulse outputs Not supported. Supported (Model with transistor outputs only)
Built-in serial com-
munications port
Not provided. RS-232C port provided
Option Board Not supported. Not supported. Supported (for one port)
Connection port
for Programming
Device
USB port USB port
Clock Not provided. Provided
Using a Battery Cannot be used. Can be used (sold separately).
Backup time of
built-in capacitor
50 hours at 25°C 40 hours at 25°C
Battery-free opera-
tion
Always battery-free operation. Only data in the
built-in EEPROM will be retained if power is inter-
rupted for longer than 50 hours.
Battery-free operation if no battery is attached.
In this case, only data in the built-in EEPROM
will be retained if power is interrupted for longer
than 40 hours.
