Omron CP1E Series User Manual

Appendices
A-2
CP1E CPU Unit Hardware User’s Manual(W479)

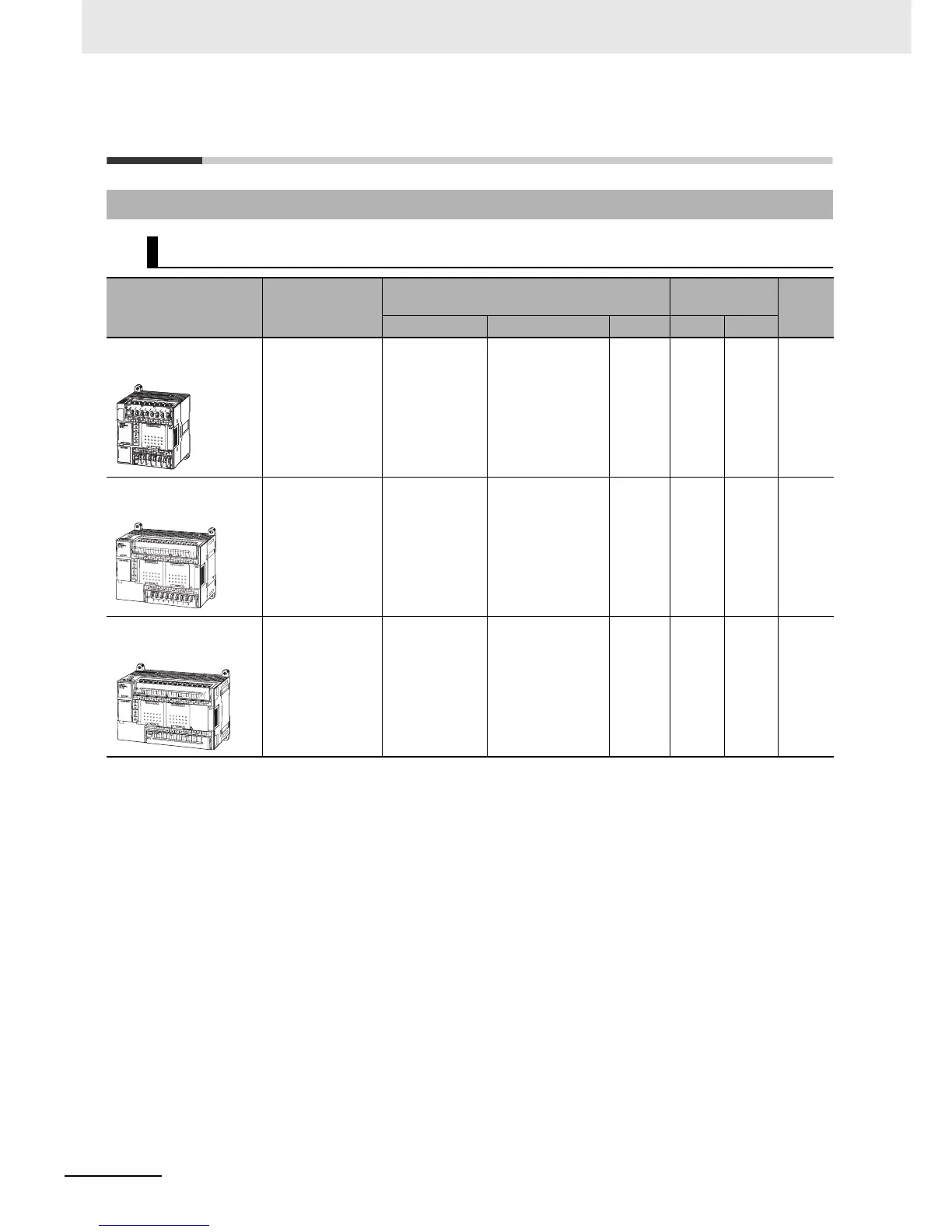

A-1 Models
A-1-1 CPU Units
E-type CPU Units
Name and appearance Model number
Specifications
Current
consumption
Weight
Power Outputs Inputs DC5V DC24V
CPU Unit with 20 I/O
Points
CP1E-E20DR-A 100 to 240 VAC 8 relay outputs 12
inputs,
24 VDC
0.17A 0.08A 360g
CPU Unit with 30 I/O
Points
CP1E-E30DR-A 100 to 240 VAC 12 relay outputs 18
inputs,
24 VDC
0.17A 0.07A 590g
CPU Unit with 40 I/O
Points
CP1E-E40DR-A 100 to 240 VAC 16 relay outputs 24
inputs,
24 VDC
0.17A 0.09A 650g

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
