9-4 Temperature Sensor Units
CP1W-TS002/TS102 Temperature Sensor Units each provide up to four input points, and CP1W-
TS001/TS101 Temperature Sensor Units each provide up to two input points. The inputs can be from
thermocouples or platinum resistance thermometers.
CP1W-TS002/TS102 Temperature Sensor Units are each allocated four input words.
z Temperature Sensor Units: CP1W-TS
(1)Temperature Sensor Input Terminals
Used to connect temperature sensors such as thermocouples or platinum resistance thermome-
ters.
(2)DIP Switch
Used to set the temperature unit (°C or °F) and the number of decimal places used.
(3)Rotary Switch
Used to set the temperature input range. Make the setting according to the specifications of the
temperature sensors that are connected.
(4)Expansion I/O Connecting Cable
Connected to the expansion connector of a CP1E CPU Unit or an Expansion Unit or Expansion
I/O Unit. The cable is included with the Temperature Sensor Unit and cannot be removed.
Precautions for Safe Use
Do not touch the cables during operation. Static electricity may cause operating errors.
(5)Expansion Connector
Used for connecting Expansion Units or Expansion I/O Units.

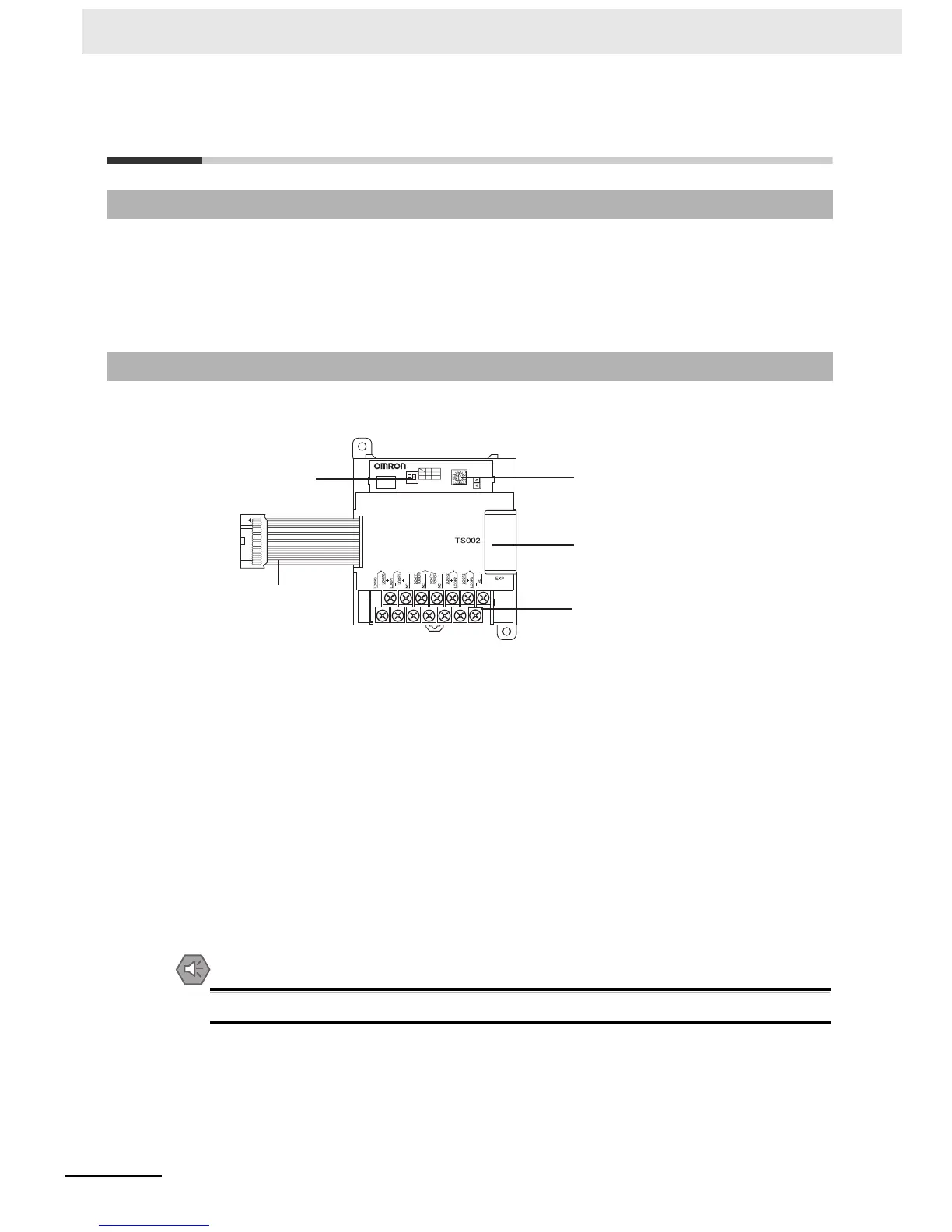

9-4-1 Overview
9-4-2 Part Names and Functions
(5) Expansion Connector
(1) Temperature Sensor Input Terminals
(4) Expansion I/O
Connector Cable
(3) Rotary Switch
(2) DIP Switch
