Omron CP1E Series User Manual

6 Troubleshooting
6-18
CP1E CPU Unit Hardware User’s Manual(W479)

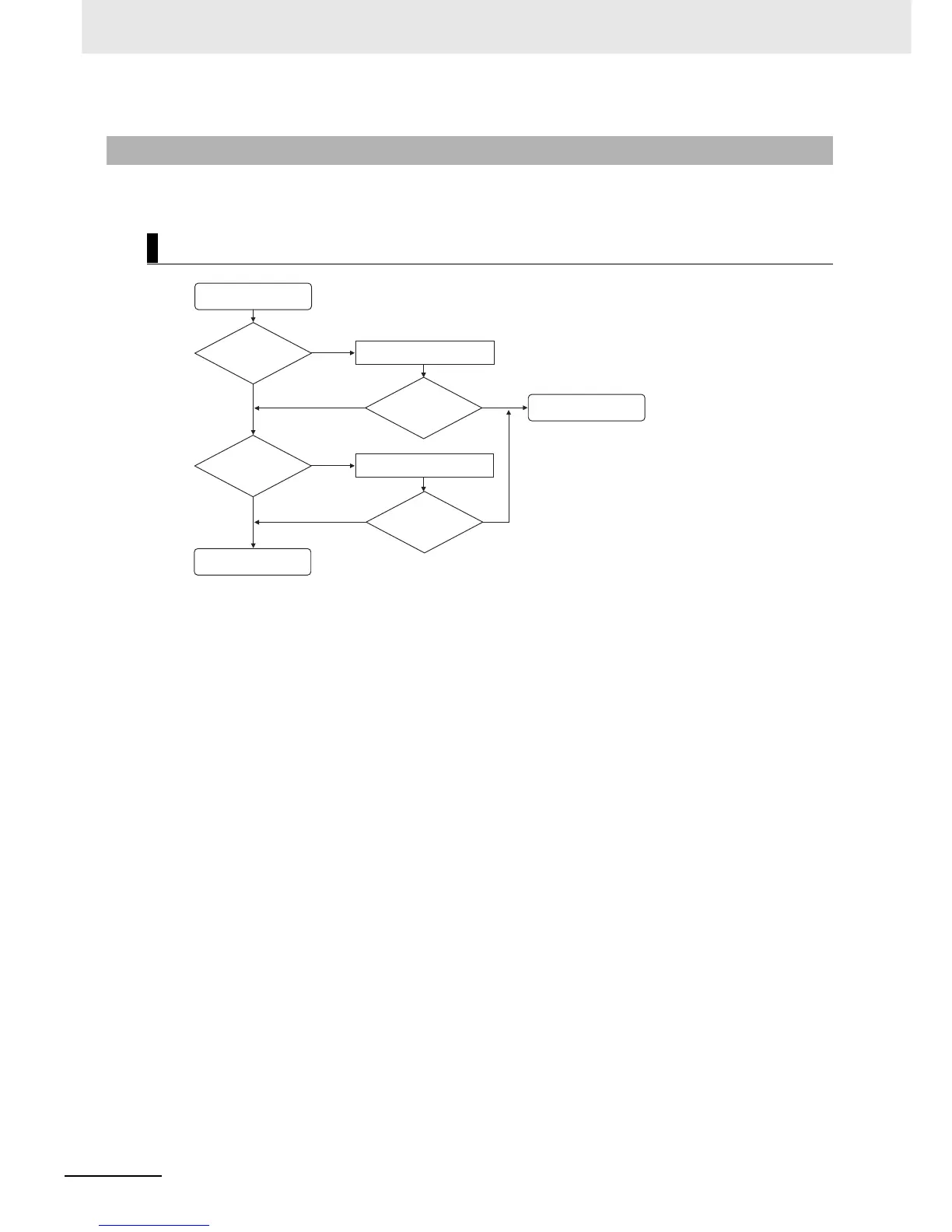

Use the following procedure if the CX-Programmer cannot connect to the PLC.
6-2-3 CX-Programmer Connection
Connecting via the Peripheral USB Port
Ye s
Ye s
No
No
Ye sNo
No
Ye s
The CX-Programmer
cannot connect.
Is the USB cable
securely connected?
Is the CX-Programmer
network type set to USB?
Replace the USB cable.
Insert the cable all the way in at both the
personal computer and at the CPU Unit.
Set the CX-Programmer network
type to USB.
Can the CX-
Programmer be
connected online?
Can the CX-
Programmer be
connected online?
End

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
