Omron CP1E Series User Manual

A-9
Appendices
CP1E CPU Unit Hardware User’s Manual(W479)
A-2 Dimensions
App
A-2-3 Expansion I/O Units
Unit: mm
Unit: mm
Unit: mm

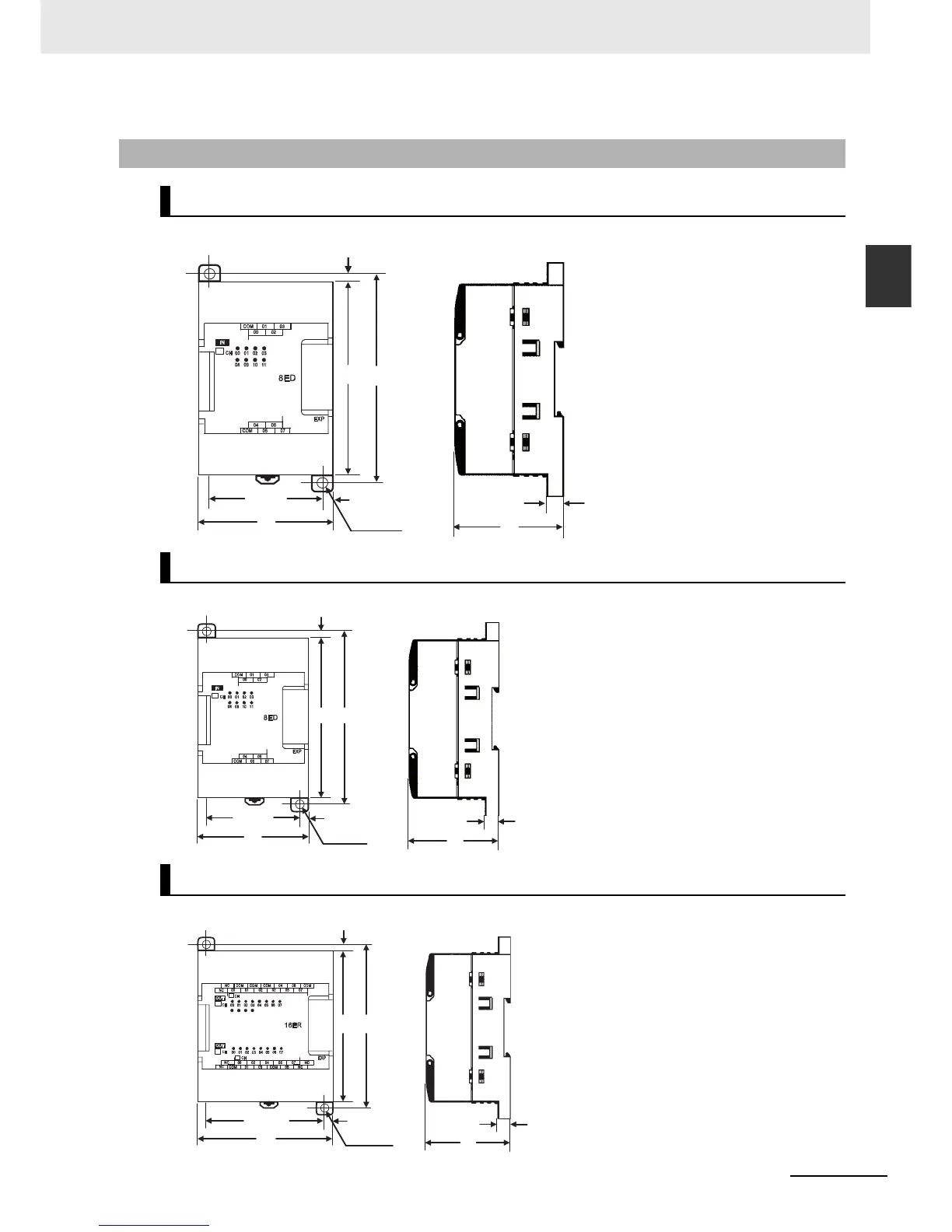

A-2-3 Expansion I/O Units
CP1W-8ED Expansion I/O Unit with 8 Input Points
CP1W-8E Expansion I/O Units with 8 Output Points
CP1W-16E Expansion I/O Units with 16 Output Points
50
8
2 ‑ φ4.5
90 100±0.2
5
5
56±0.2
66
50
8
2 ‑ φ4.5
90 100±0.2
5
5
56±0.2
66
50
8
2 ‑ φ4.5
90 100±0.2
5
5
76±0.2
86

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
