Omron CP1E Series User Manual

A-5
Appendices
CP1E CPU Unit Hardware User’s Manual(W479)

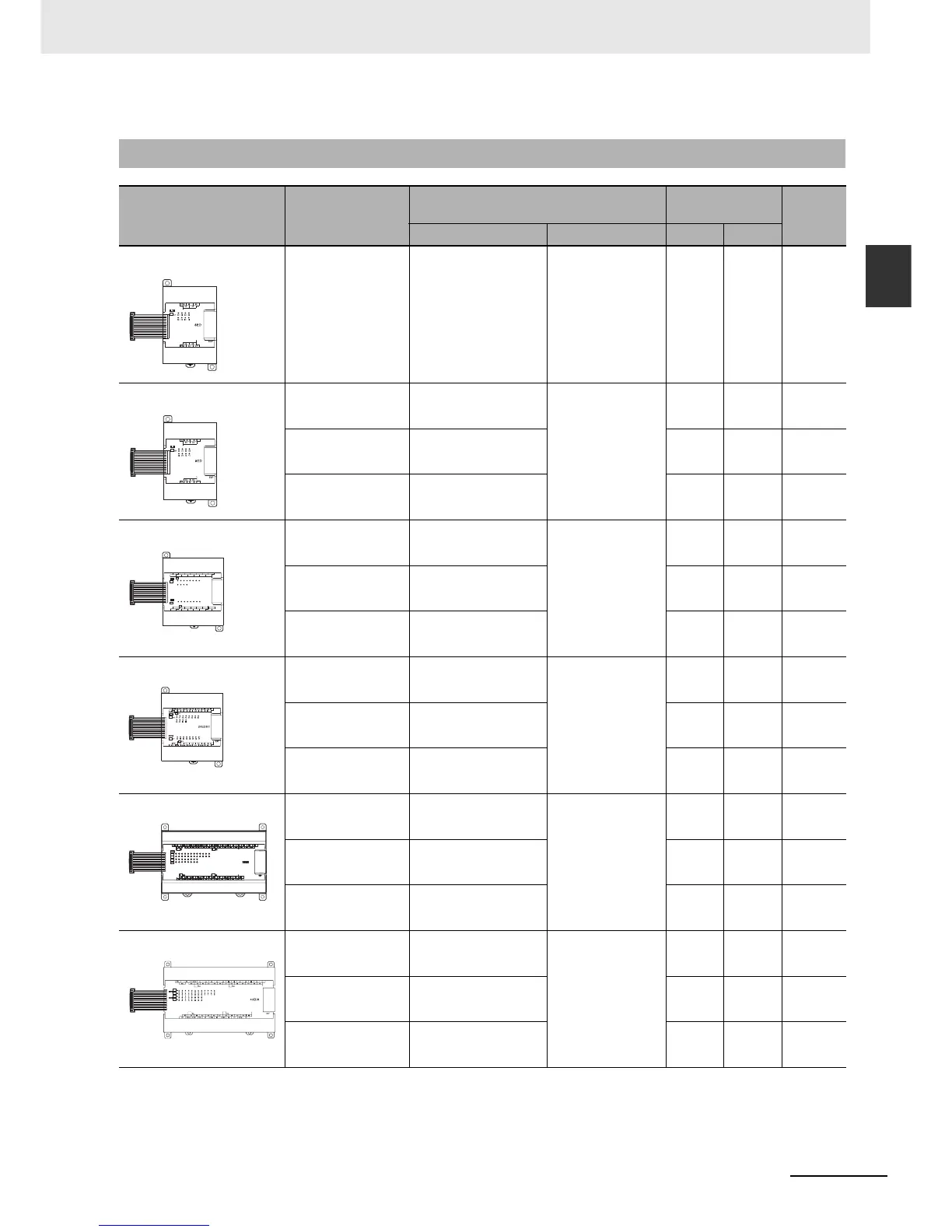

A-1 Models
App
A-1-4 Expansion I/O Units
A-1-4 Expansion I/O Units
Name and appearance Model number
Specifications
Current
consumption
Weight
Outputs Inputs 5V 24V
8-point Input Unit CP1W-8ED Not provided. 8 inputs, 24 VDC 0.018A
−
200g
8-point Output Units CP1W-8ER 8 relay outputs Not provided. 0.026A 0.044A 250g
CP1W-8ET 8 transistor outputs,
sinking
0.075A
−
250g
CP1W-8ET1 8 transistor outputs,
sourcing
0.075A
−
250g
16-point Output Units CP1W-16ER 16 relay outputs Not provided. 0.042A 0.090A 280g
CP1W-16ET 16 transistor outputs,
sinking
0.076A
−
225g
CP1W-16ET1 16 transistor outputs,
sourcing
0.076A
−
225g
20-point I/O Units CP1W-20EDR1 8 relay outputs 12 inputs, 24 VDC 0.103A 0.044A 300g
CP1W-20EDT 8 transistor outputs,
sinking
0.130A
−
300g
CP1W-20EDT1 8 transistor outputs,
sourcing
0.130A
−
300g
32-point Output Units CP1W-32ER 32 relay outputs Not provided. 0.490A 0.131A 465g
CP1W-32ET 32 transistor outputs,
sinking
0.113A
−
325g
CP1W-32ET1 32 transistor outputs,
sourcing
0.113A
−
325g
40-point I/O Units CP1W-40EDR 16 relay outputs 24 inputs, 24 VDC 0.800A 0.900A 380g
CP1W-40EDT 16 transistor outputs,
sinking
0.160A
−
320g
CP1W-40EDT1 16 transistor outputs,
sourcing
0.160A
−
320g
OUT
00
CH
CH
01 02 03 05 07
OUT
COMNC COM COM 04 06 COM
COM 01 03 COM 06 NC
00 02 04 05 07 NC
00 01 02 03 04 05 06
07
16ER
CH
00 01 02 03 04 05 06 07
NC
NC
NC
CH
EXP

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
