9 Using Expansion Units and Expansion I/O Units
CP1E CPU Unit Hardware User’s Manual(W479)
9-2 Analog Output Units
9
9-2-4 Flow of Processing

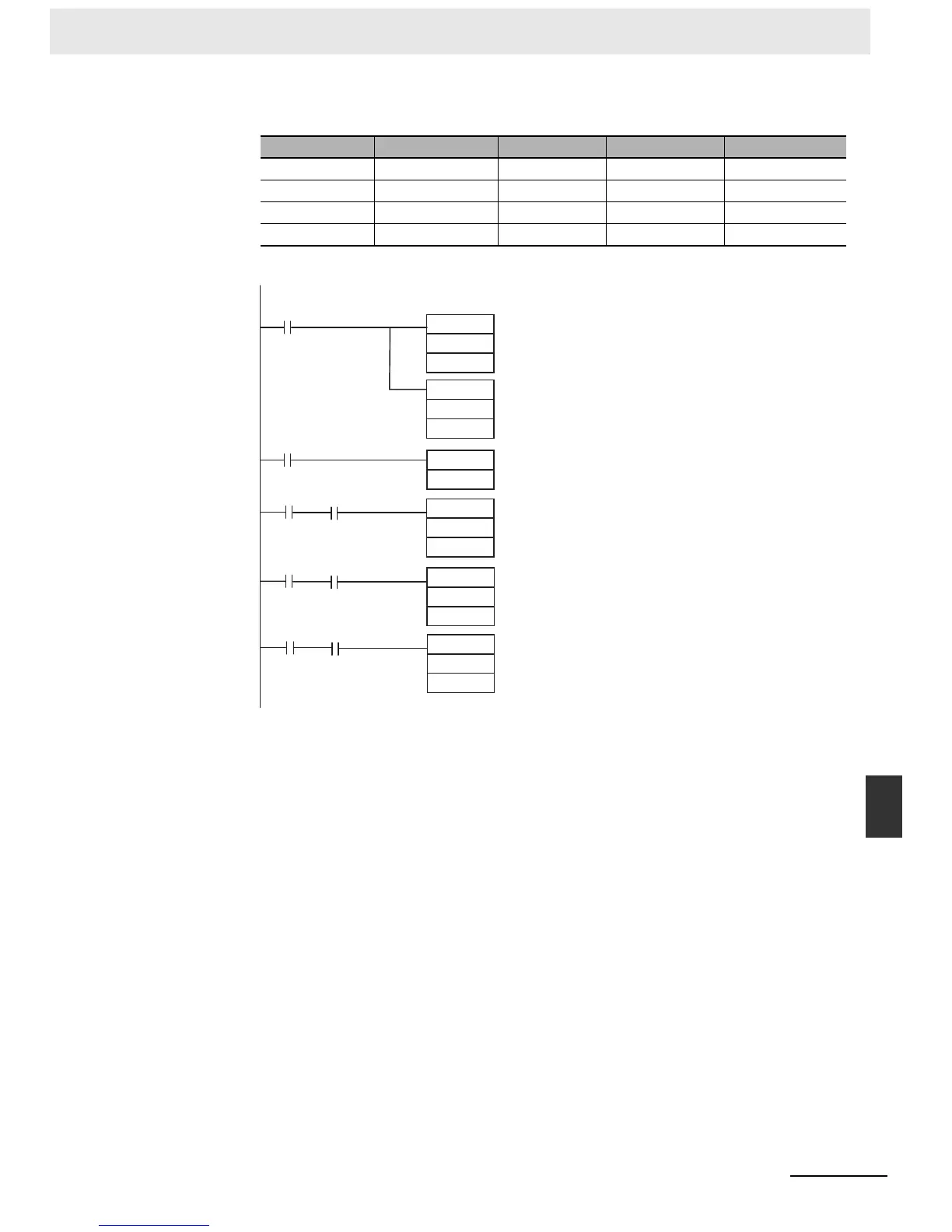

(6) Program Example
Analog output Output range Range code Set data Destination word
Output 1 0 to 10 V 001 1001 (9 hex) Wd n+1
Output 2 4 to 20 mA 011 1011 (B hex) Wd n+1
Output 3 -10 to 10 V 000 1000 (8 hex) Wd n+2
Output 4 Not used. -(000) 0000 (0 hex) Wd n+2
P_On
T5
T5
T5
MOV
#80B9
102
TIM5
#0002
D200
102
MOV
D202
104
MOV
MOV
#8008
103
D201
103
MOV
Always ON Flag
Execution
condition
Execution
condition
Execution
condition
First Cycle Flag
A200.11
←Writes set data B and 9.
←Writes set data 0 and 8.
←Writes analog output 1 conversion data.
←Writes analog output 2 conversion data.
←Writes analog output 3 conversion data.

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
