9-37
9 Using Expansion Units and Expansion I/O Units
CP1E CPU Unit Hardware User’s Manual(W479)
9-4 Temperature Sensor Units
9
9-4-4 Flow of Processing

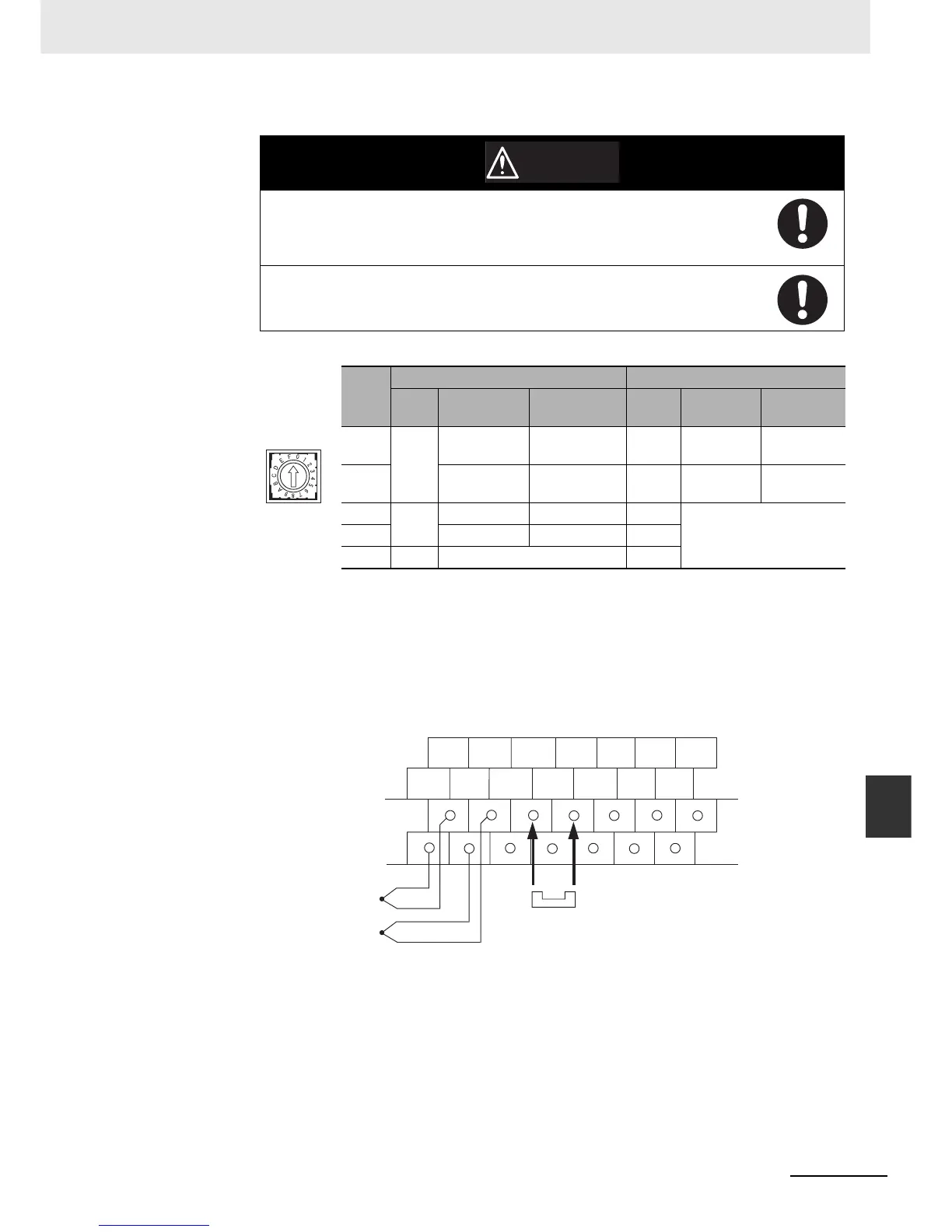

(2) Rotary Switch Setting
The rotary switch is used to set the temperature range.
3
Connect Temperature Sensors.
(1) Thermocouples
(a) CP1W-TS001
Either K or J thermocouples can be connected to the CP1W-TS001, but both of the
thermocouples must be of the same type and the same input range must be used for
each.
Set the temperature range according to the type of temperature sensor
connected to the Unit.
Temperature data will not be converted correctly if the temperature range
does not match the sensor.
Do not set the temperature range to any values other than those for
which temperature ranges are given in the following table.
An incorrect setting may cause operating errors.
Set-
ting
CP1W-TS001/TS002 CP1W-TS101/TS102
Input
type
Range (°C) Range (°F)
Input
type
Range (°C) Range (°F)
0 K -200 to 1,300 -300 to 2,300 Pt100 -200 .0 to
650.0
-300 .0 to
1,200.0
1 0.0 to 500.0 0.0 to 900.0 JPt100 -200 .0 to
650.0
-300 .0 to
1,200.0
2 J -100 to 850 -100 to 1,500 − Cannot be set.
3 0.0 to 400.0 0.0 to 750.0 −
4 to F − Cannot be set. −
WARNI
