Omron CP1E Series User Manual

3-15
3 Part Names and Functions
CP1E CPU Unit Hardware User’s Manual(W479)
3-1 CPU Units
3

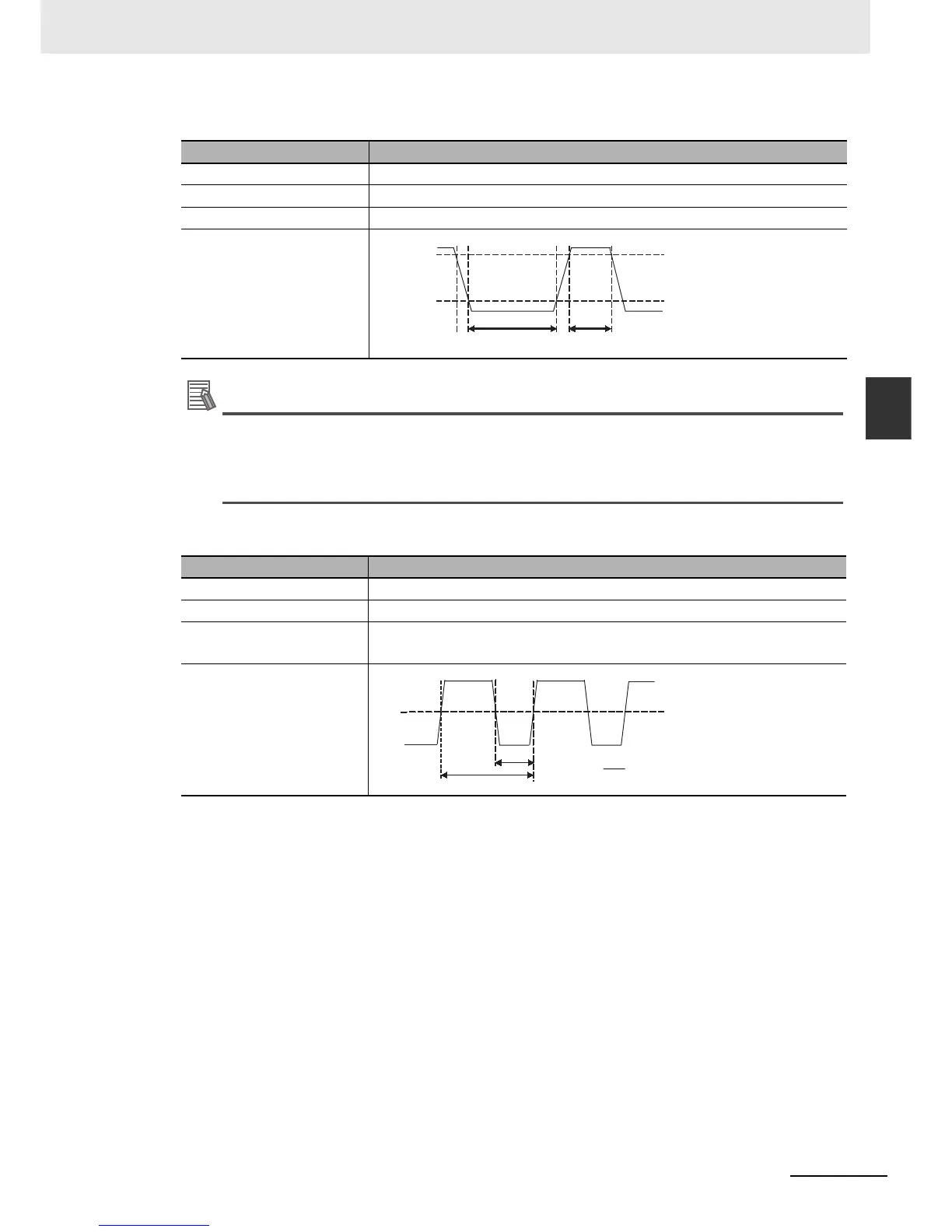

3-1-3 Common I/O Specifications
z Pulse Outputs (CIO 100.00 and CIO 100.01)
Additional Information
• The load for the above values is assumed to be the resistance load, and does not take into
account the impedance for the connecting cable to the load.
• Due to distortions in pulse waveforms resulting from connecting cable impedance, the pulse
widths in actual operation may be smaller than the values shown above.
z PWM Output (CIO 100.01)
Item Specification
Maximum switching capacity 100 mA 4.5 to 26.4 VDC
Minimum switching capacity 7 mA 4.5 to 26.4 VDC
Maximum output frequency 100 kHz
Output waveform
Item Specification
Maximum switching capacity 30 mA 4.5 to 26.4 VDC
Maximum output frequency 32.8 kHz
PWM output accuracy For ON duty +1%, -0%:10 kHz output
For ON duty +5%, -0%: 0 to 32.8 kHz output
Output waveform
4µs min.
2µs min.
OFF
90
%
ON
10
%
T
ON duty=
× 100 %
T
t
ON
t ON
OFF
ON

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
